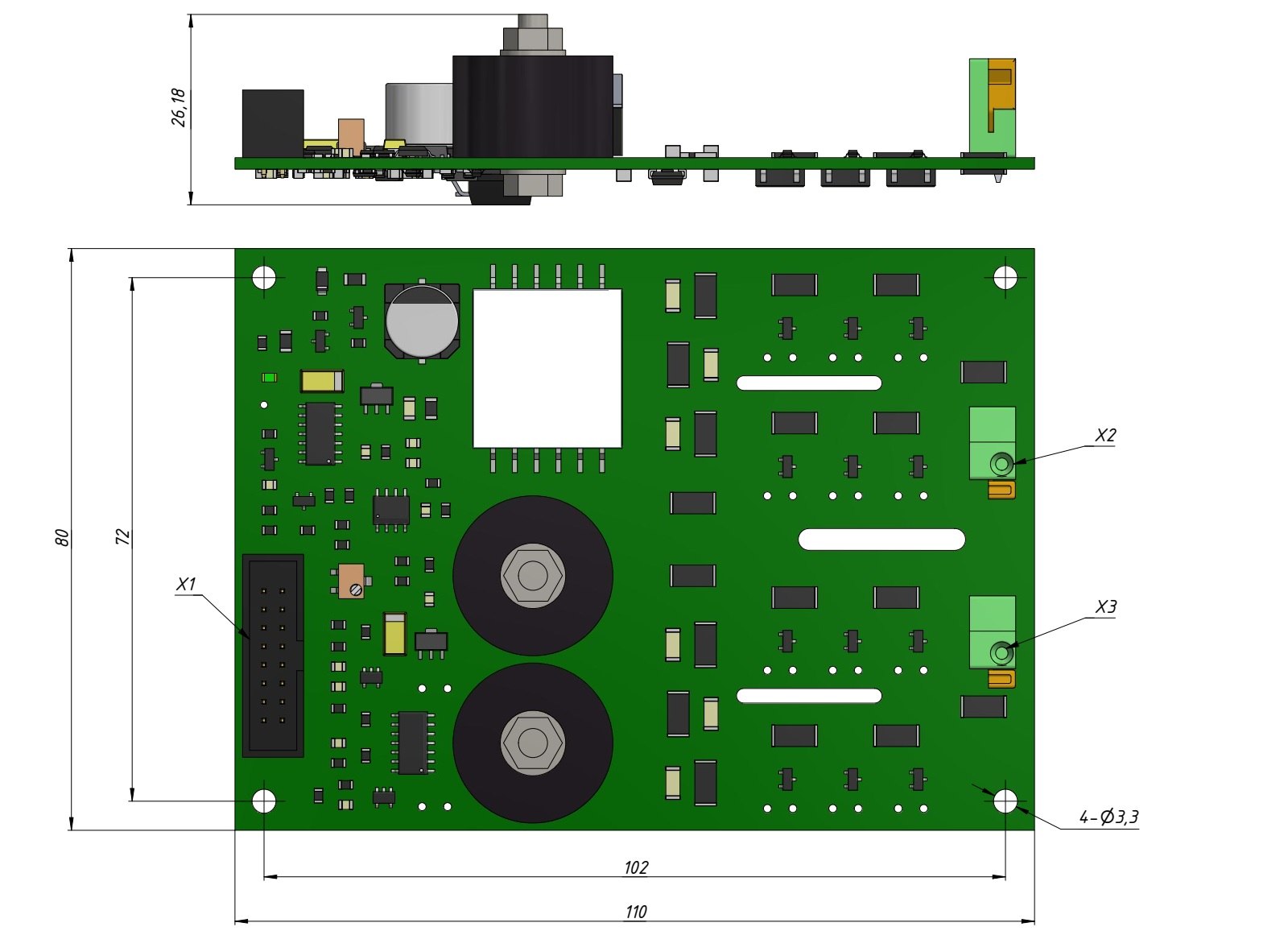

EOMDRV-1

1.

Output voltage adjustment range

2.5 – 5.5 kV

2.

Max output pulse duration

any

3.

Minimal output pulse duration

500 ns

4.

High voltage output pulse rise/fall time, max

20 ns

5.

High voltage output pulse delay, max

1 µs

6.

Max pulse rate @ 5kV output voltage and 10pF load capacitance

10 kHz

7.

Discrete modulation signal at the IN_MOD input

TTL

8.

Rated supply voltage

24 V

9.

Supply current @ up to 1kHz output pulse rate, max

0.15 A

10.

Supply current @ 5kV output voltage, up to 10kHz output pulse rate, and 10pF load capacitance

0.5 A

11.

Sensitivity at the VPROG control input setting the output voltage

1 kV/V

12.

Signal level at the VMON diagnostic output of the output voltage control

1 V/kV

13

Operating ambient temperature range

0 0С to 40 0С
