< Back to laser gain modules

NDYAG-QCW25-108-9

Safe and rigid housing. EEL diode pumping. Optimized for long service life performance.

1064nm

WL

QCW

Mode

25kW

Peak pump

0.34-60ms

Pulse length

2.6-110J

Pulse energy

Description

The module is designed to be used as a part of a generator in an intracavity application, as well as an amplifier for an extracavity application.

Specification

Model	NDYAG-QCW25-108-9
Rod material	Nd:YAG
Rod concentration	0.6%
Rod diameter	9mm
Rod length	180mm
Operation mode	QCW
Peak pump power	25,000W

Pulse width

0.34ms

0.7ms

2ms

4ms

10ms

20ms

40ms

60ms

Pulse repetition rate

20Hz

10Hz

10Hz

5Hz

3Hz

2Hz

1Hz

1Hz

Current

210A

150A

130A

120A

115A

95A

80A

70A

Typical QCW energy

(from a gain switched, 260mm long cavity with a flat 80% reflectivity output coupler and a flat high reflector)

2.8J

3.8J

9.4J

17.2J

42.1J

65.5J

103.7J

125.5J

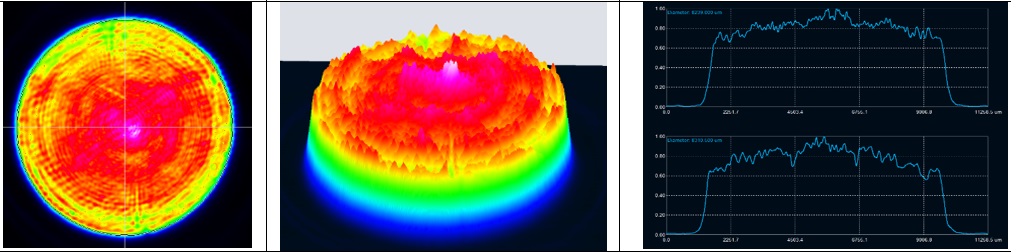

Beam profiles at the output of the laser cavity: 0.34ms, 10Hz, 210А

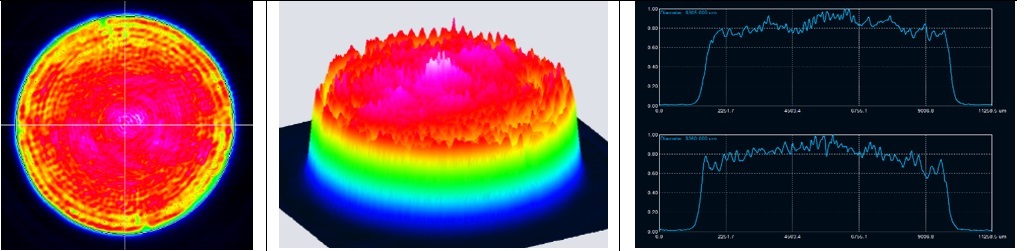

Beam profiles at the output of the laser cavity: 2ms, 5Hz, 115А

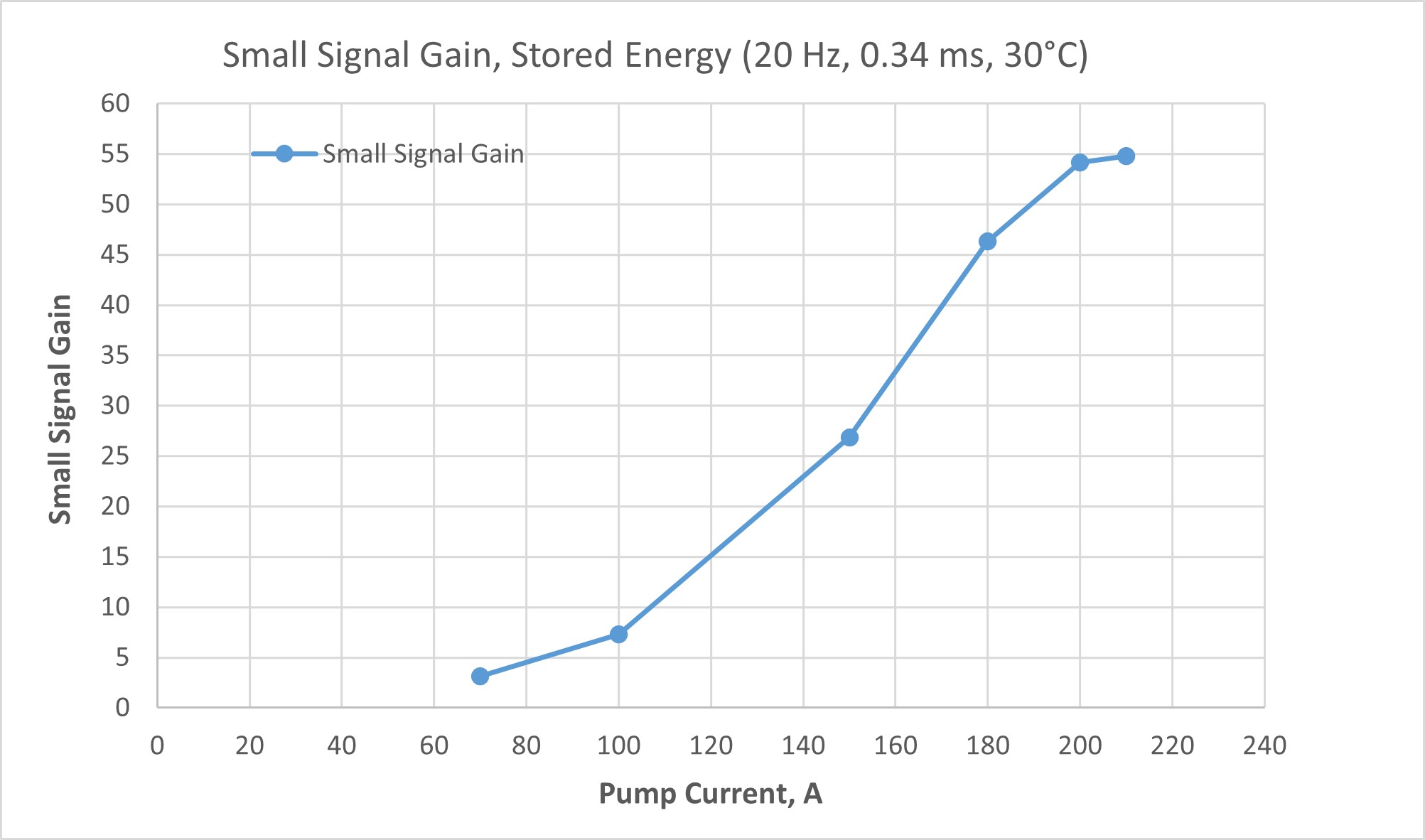

Small signal gain

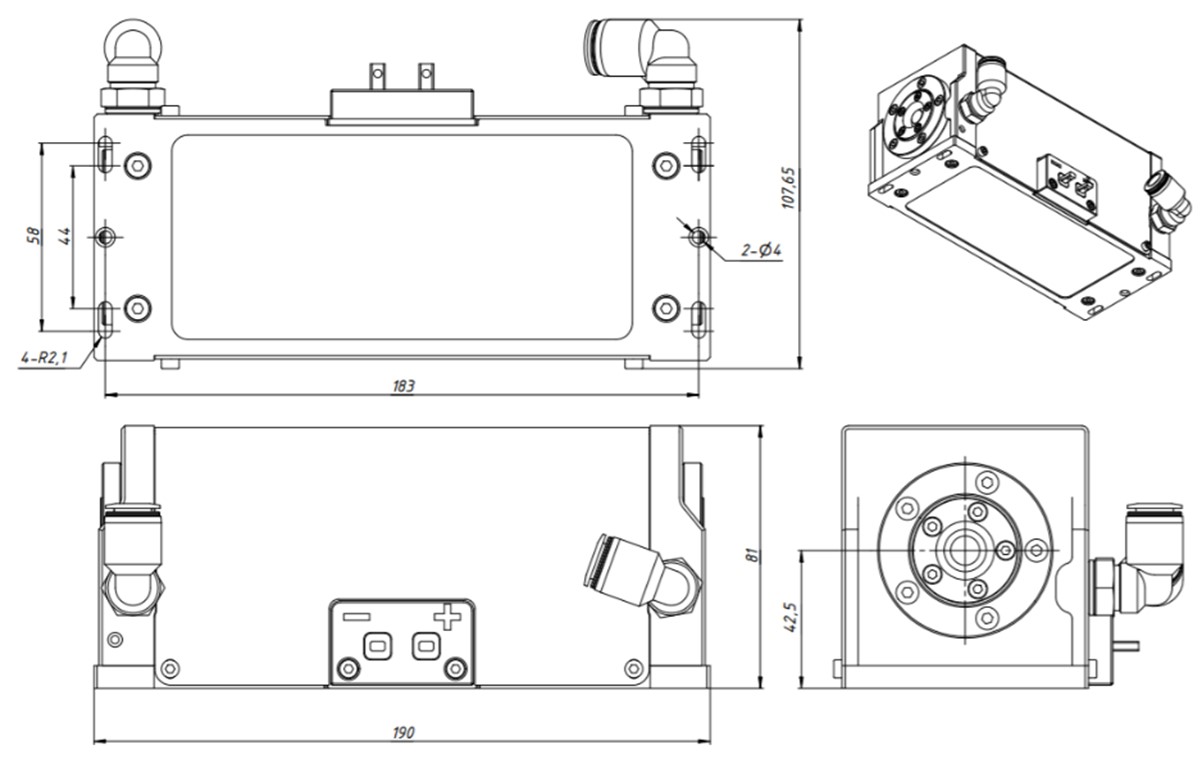

Dimensional drawing
