PL-NDYAG-2mJ-370P

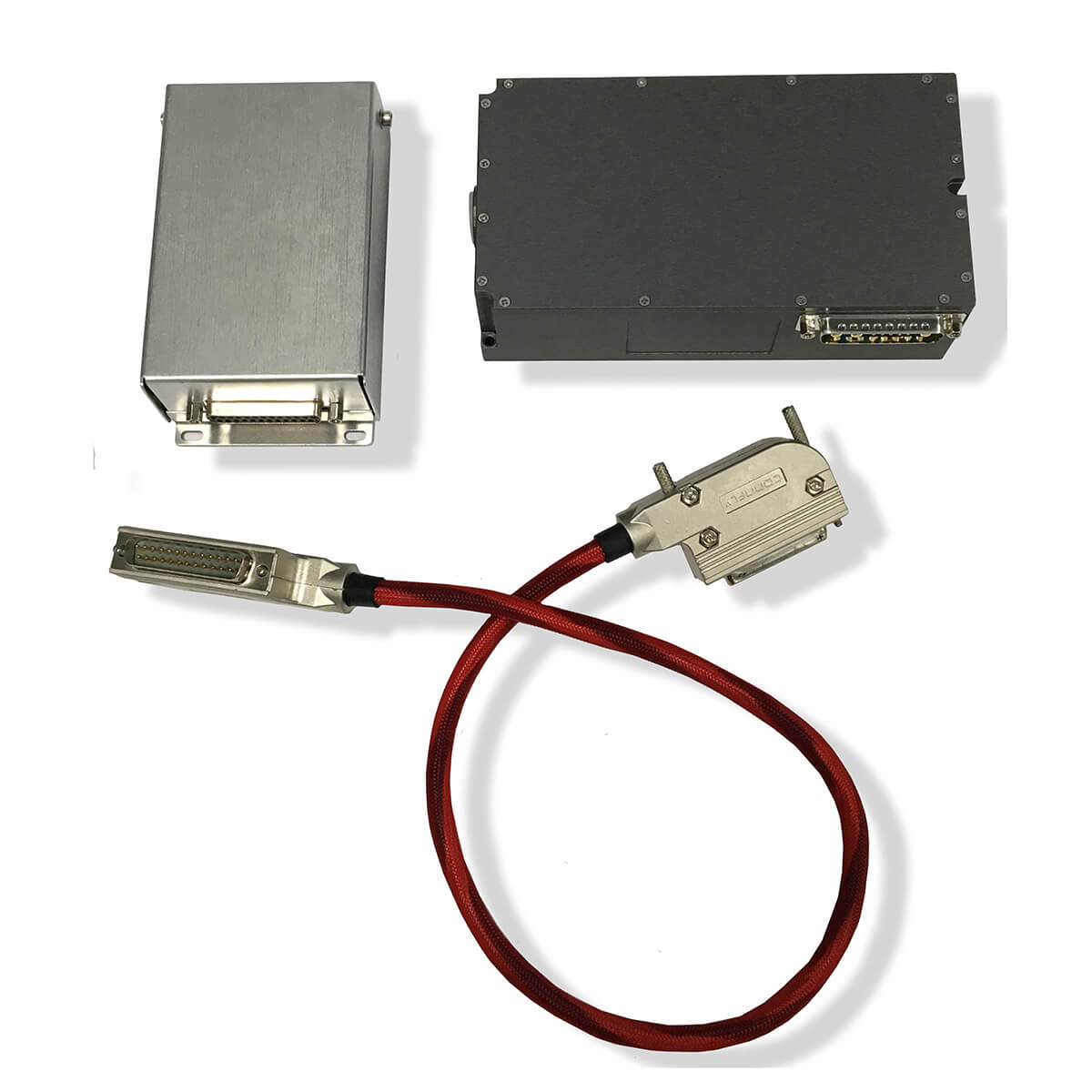

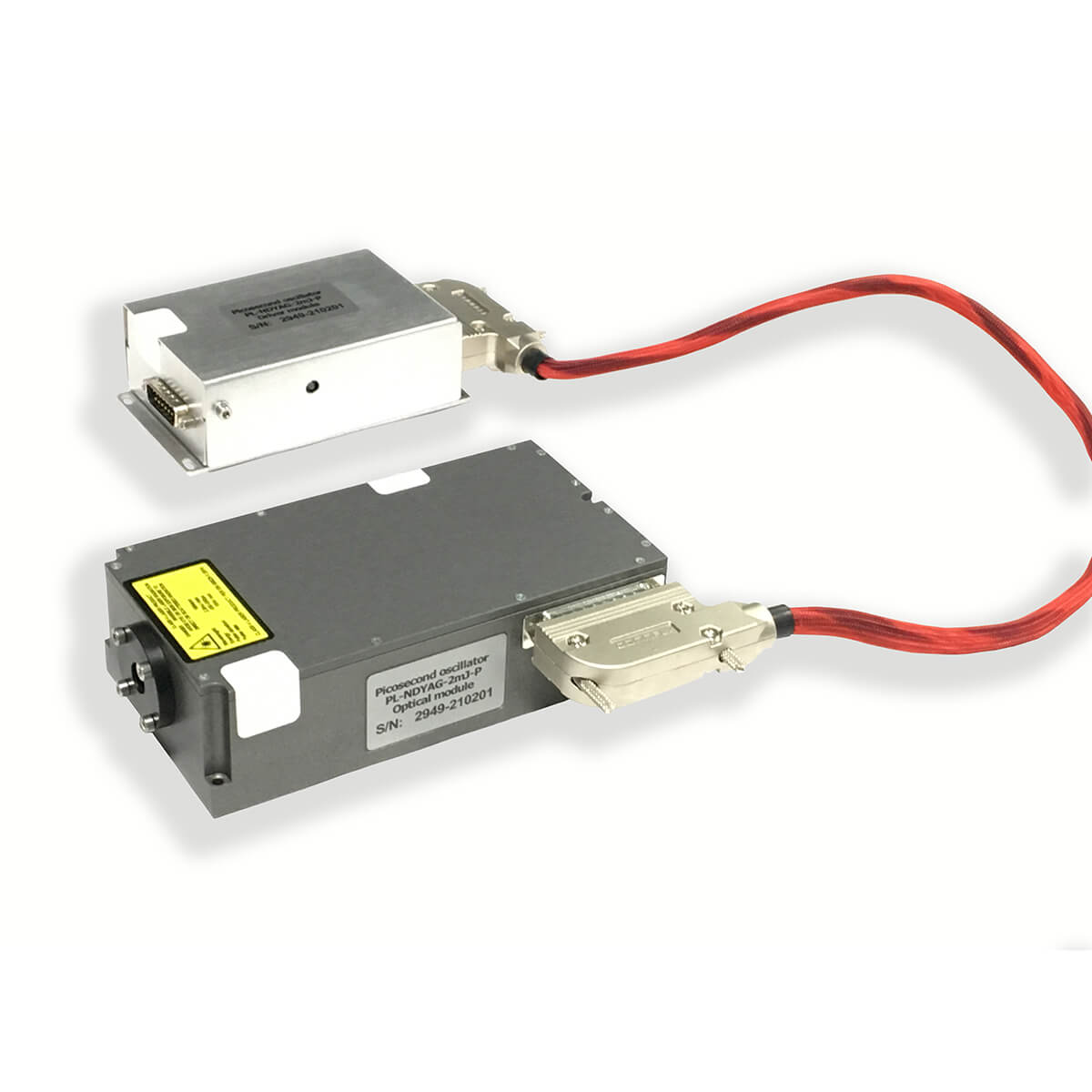

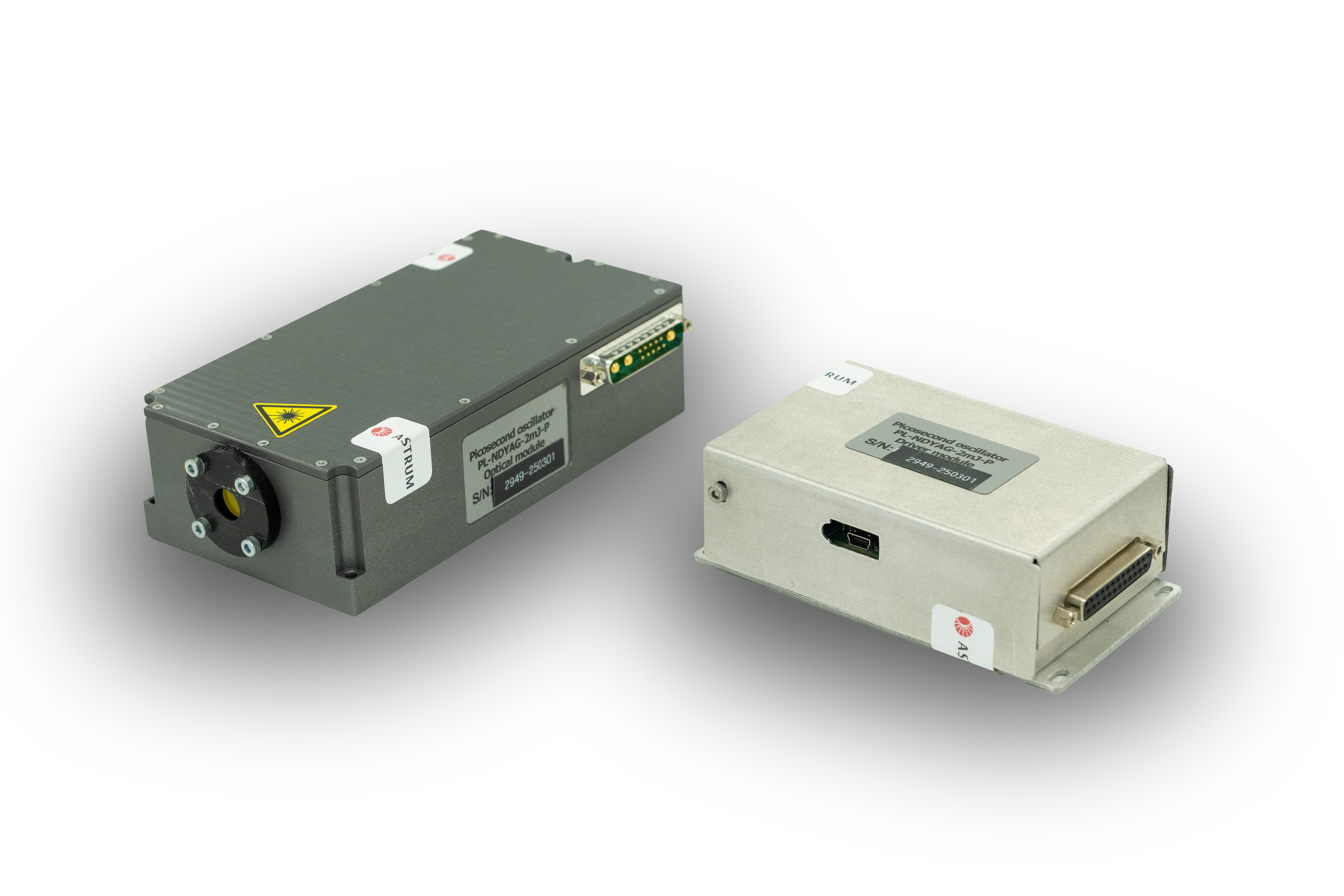

PL NDYAG 2mJ P-series - is a picosecond passively Q-switched diode-pumped Nd:YAG/Cr:YAG microlaser.

Description

The laser delivers >2mJ pulses with picosecond pulse duration and a near-TEM00 beam.

It can be used as a source of picosecond radiation or as a master oscillator of picosecond laser systems with high energy in a pulse.

Applications: cosmetology, material processing, marking, spectroscopic and nonlinear optics applications, other science applications

	PL-NDYAG-2mJ-P Series

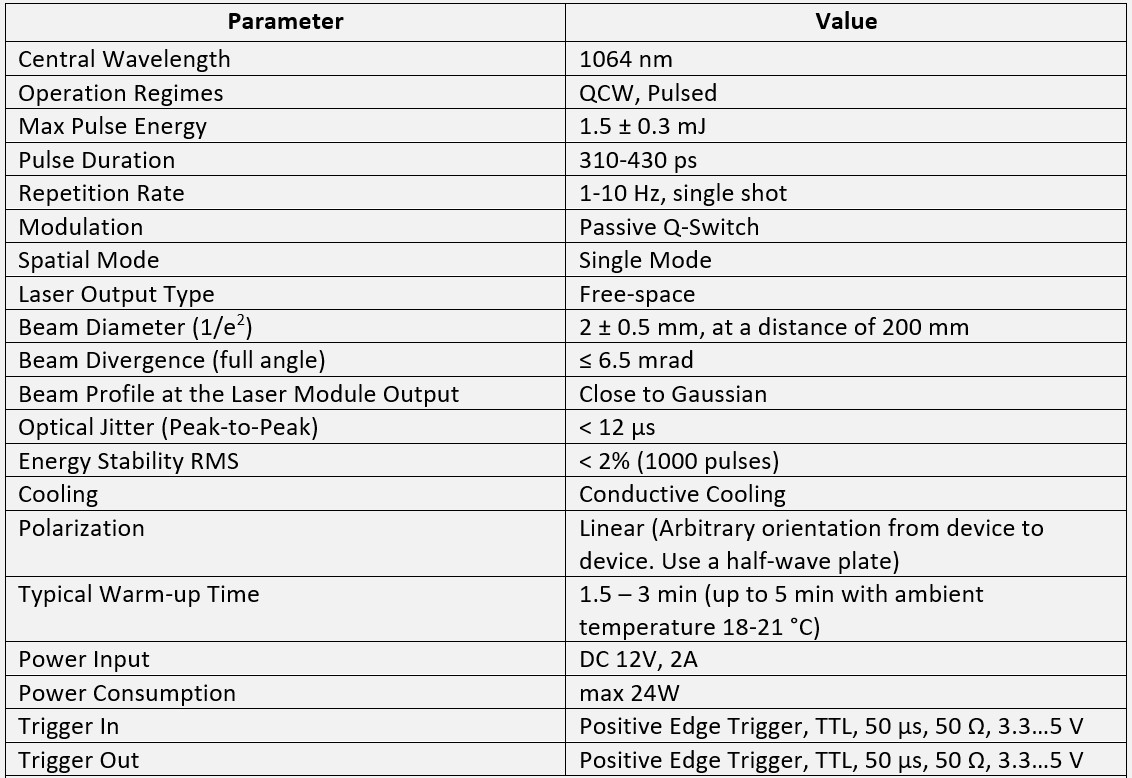

Model	PL-NDYAG-2mJ-370P	PL-NDYAG-2mJ-450P	PL-NDYAG-2mJ-500P	PL-NDYAG-2mJ-700P	PL-NDYAG-2mJ-1000P
Wavelength	1064 nm

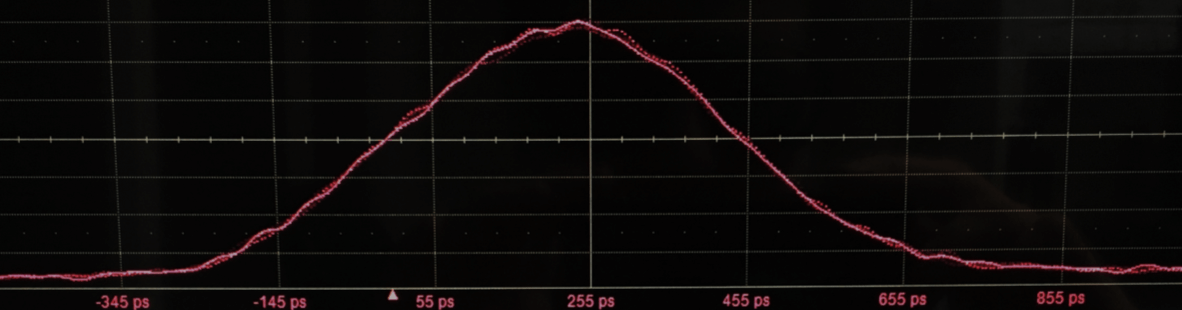

Pulse Width	370 ± 60 ps	450 ± 60 ps	500 ± 60 ps	700 ± 80 ps	1000 ± 120 ps
Pulse Energy	2 ± 0.5 mJ
Repetition Rate	1-10 Hz, Single shot
Modulation type	Passive Q-switch
Pulse to Pulse Energy Stability (RMS)	< 1%

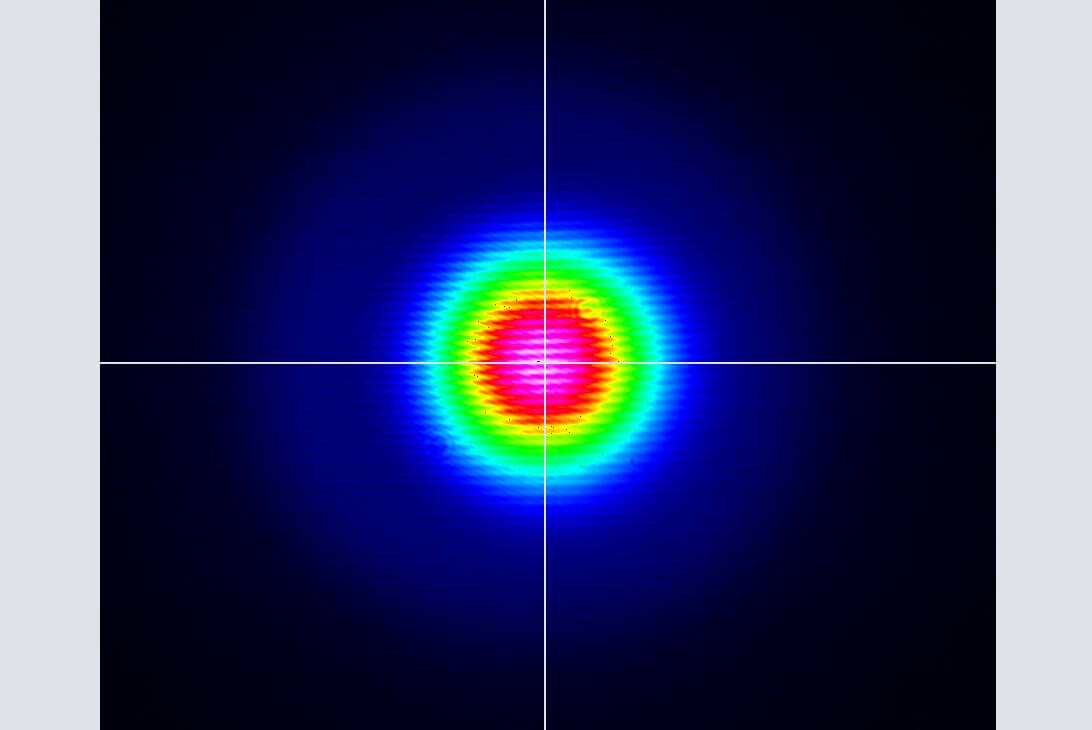

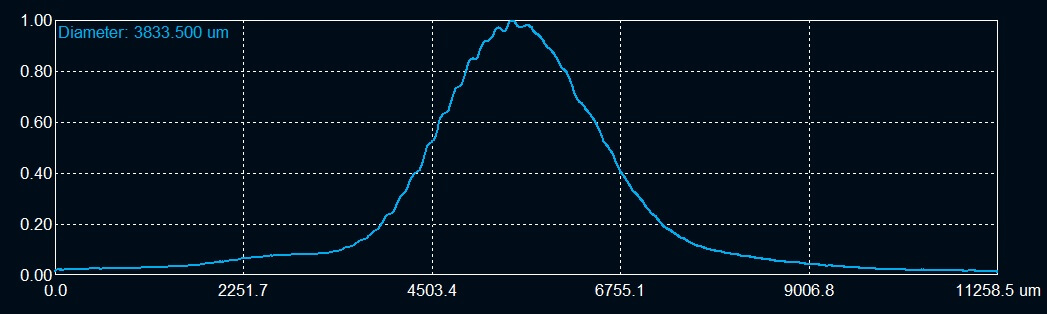

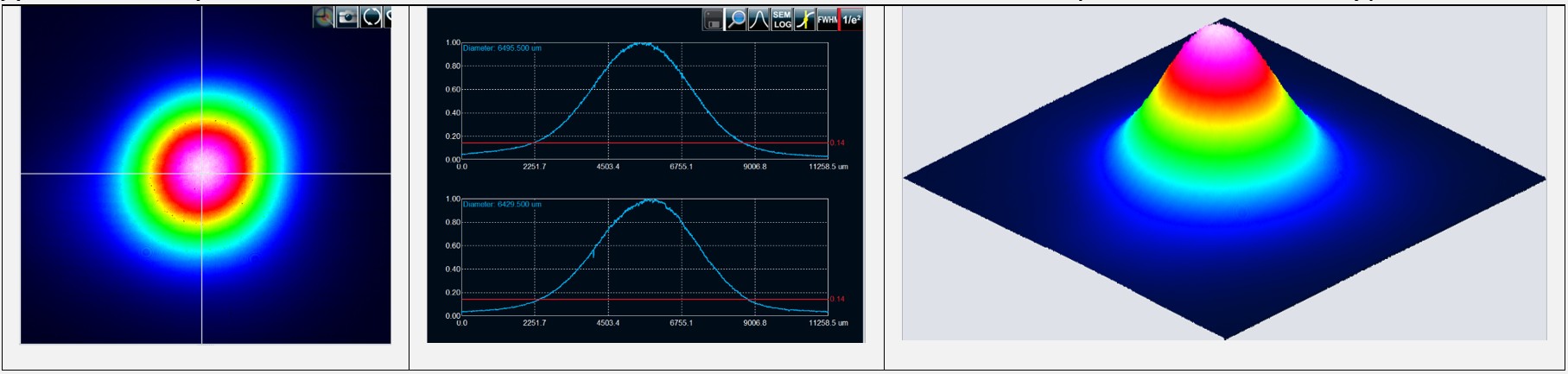

Beam Profile at the Output of the Module	Close to Gaussian
Beam Divergence	< 5 mrad
Beam Diameter (1/e2)	0.7 ± 0.25 mm
Polarization Ratio	Linear, >1:50
Cooling Type	Conductive Cooling
Typical warm-up time	1 - 2 min
Power Input	DC 12V, 1.2A
Umbilical length (cable)	0.5 ± 0.1 m
Trigger In (start laser pulses)	Positive Edge Trigger, TTL, 50 μs, 50 Ω
Trigger Out (check laser pulses)	Positive Edge Trigger, TTL, 50 μs, 50 Ω

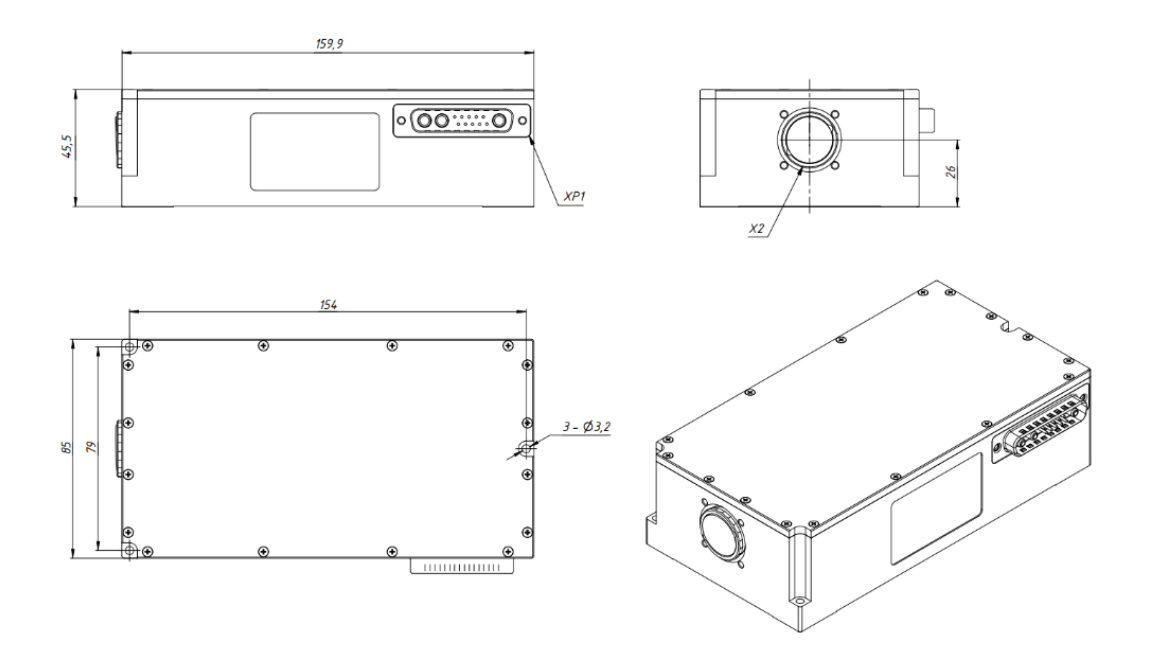

Laser module dimensions	160×85×45.5 mm

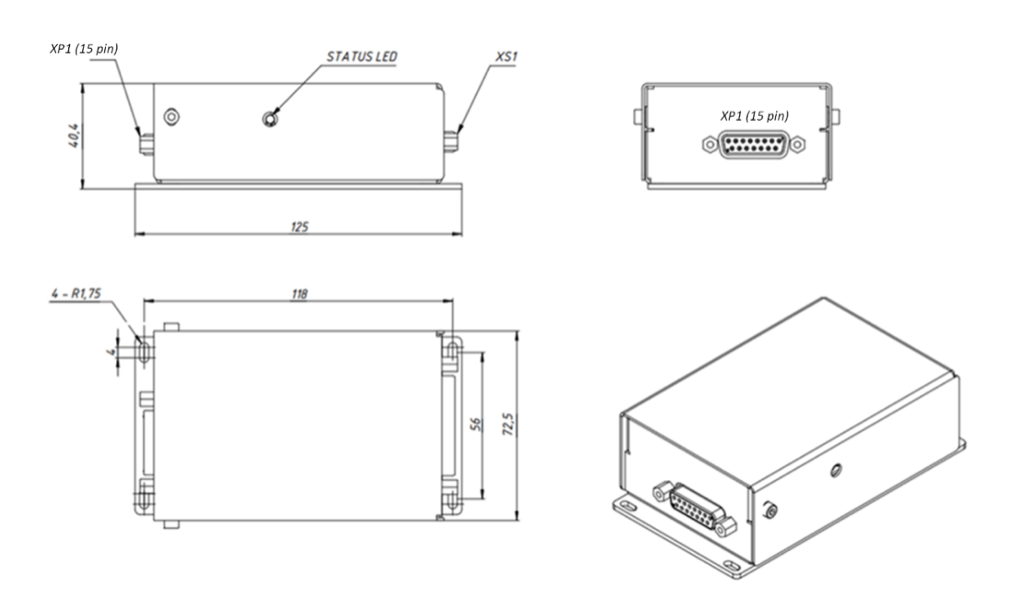

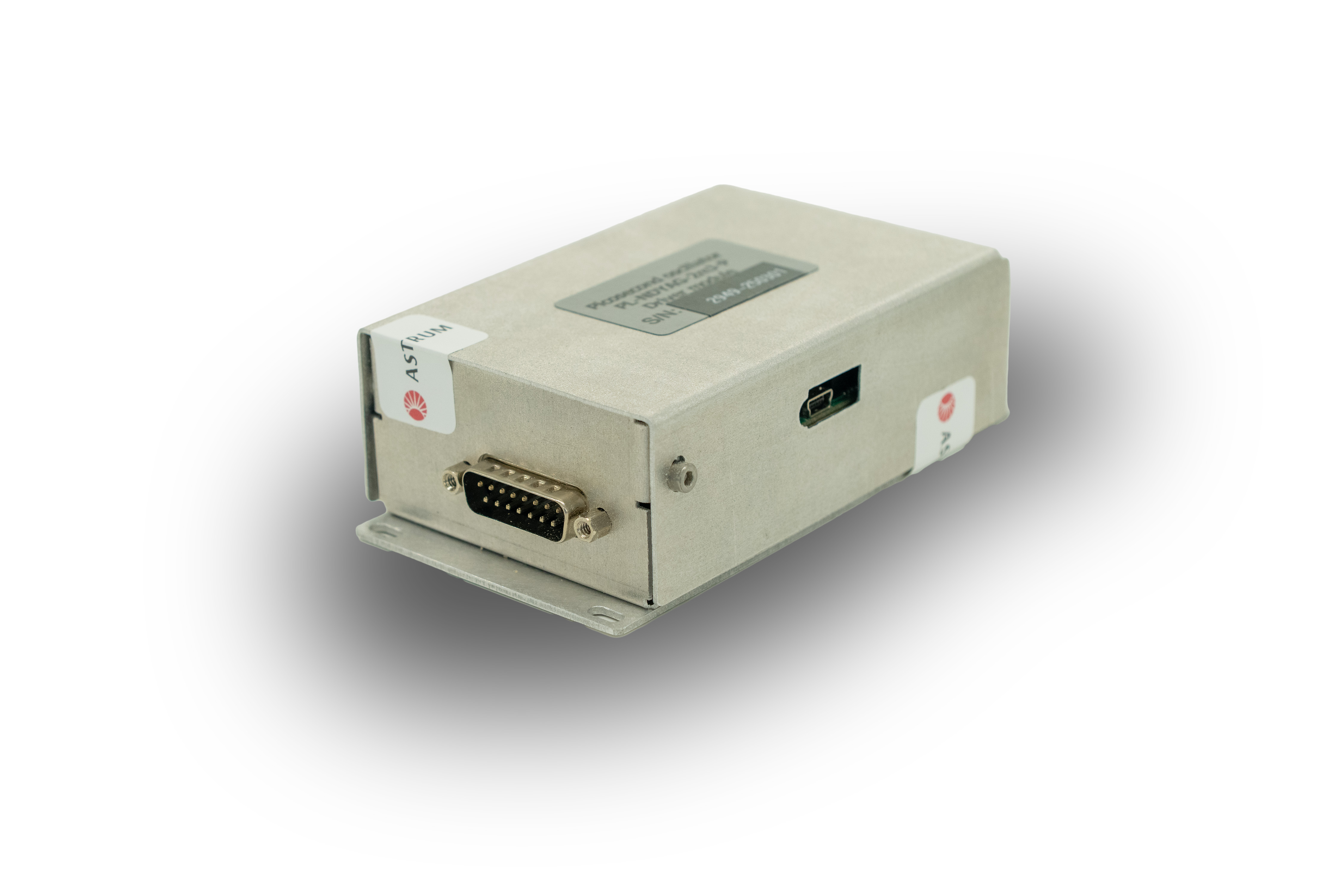

Laser driver dimensions	125×72.5×40.4 mm
Operating temperature	15 – 37 °
