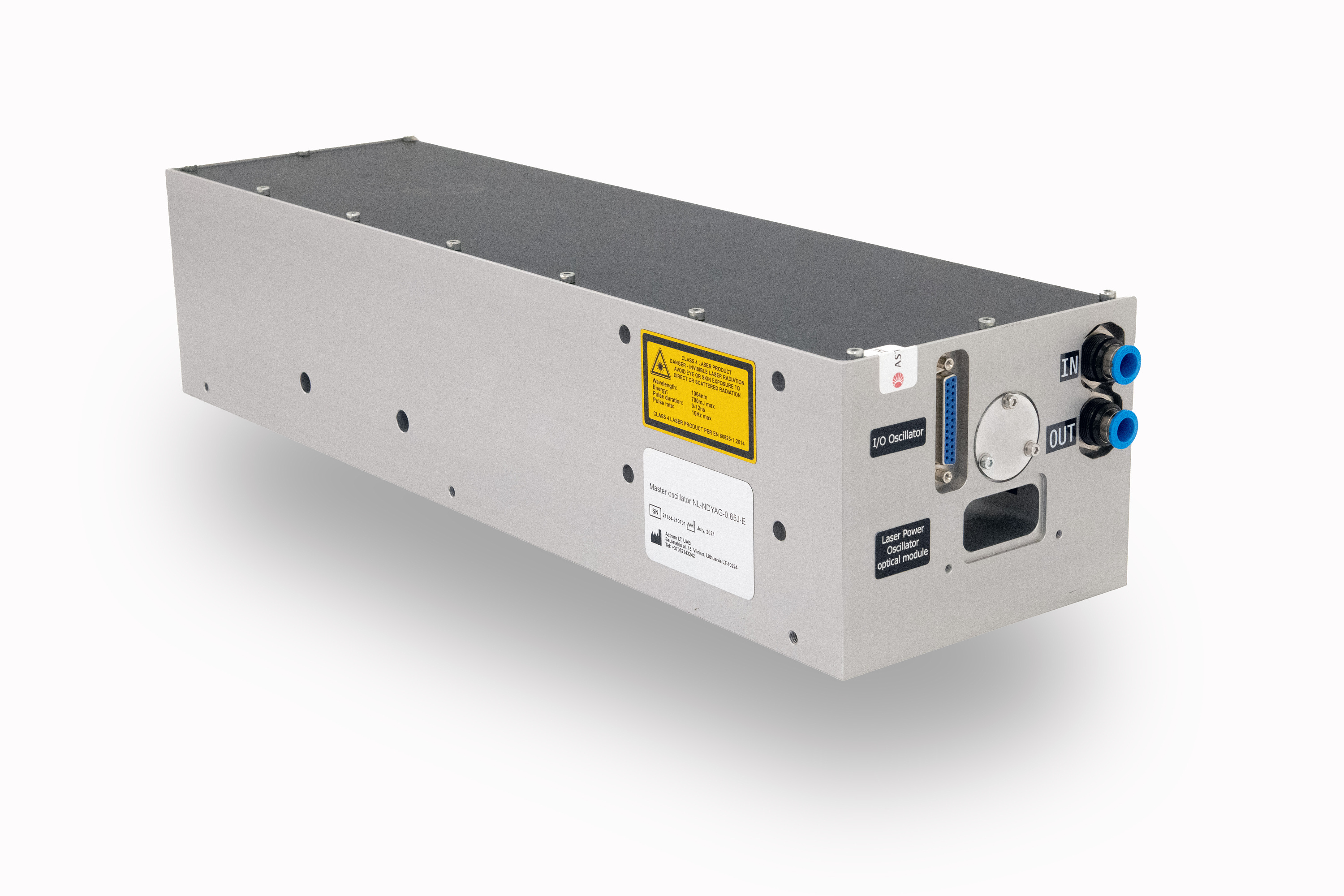

The master oscillator NL-NDYAG-0.65J-E is designed for MOPA integration. It is a low PTP jitter laser module complete with an electronic control module offering a tight and precise control of the source and up to 4 amplifier channels.
The master oscillator NL-NDYAG-0.65J-E is designed for MOPA integration. It is a low PTP jitter laser module offering tight and precise control of the source complete with an electronic control module with 4 amplifier channels.

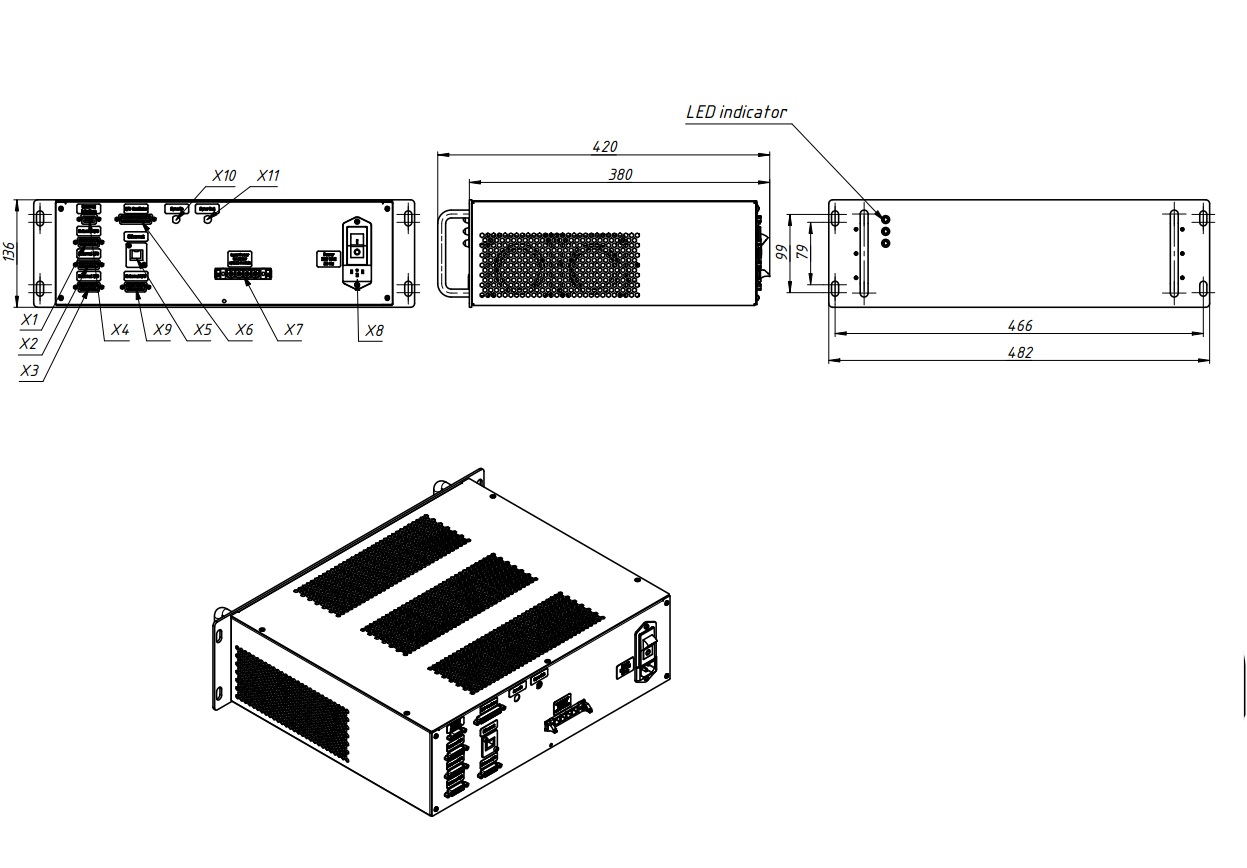

The electronic module controls the master oscillator and and up to 4 amplifiers.
|
Beam diameter |
6.7 ± 0.7 mm |
|
Pulse energy |
650 mJ |
|
Beam divergence |
≤ 10 mrad |
|
Repetition rate |
1-10 Hz, single shot |
|
Wavelength |
1064 nm |
|
Pulse duration |
9.5 ± 1 ns |
|

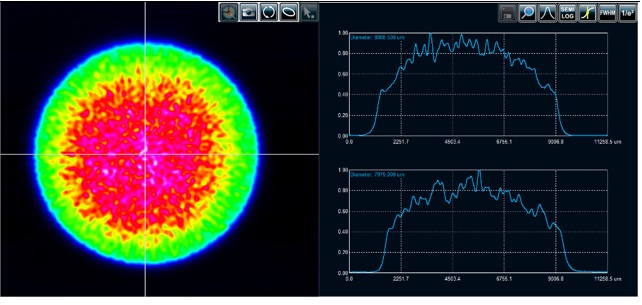

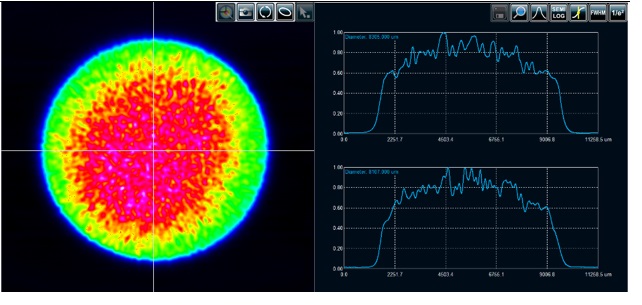

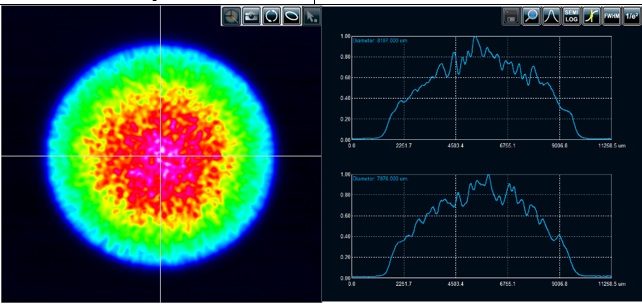

Beam quality |
Super Gaussian (Multimode) |
|
Energy stability RMS |
< 2 % within 60 min |
|
Modulation |
Active Q-Switch |
|
Max jitter PTP |
< ± 1.3 ns |
|
Cooling |
Water cooling, 3-5 L/min |
|
Ambient temperature |
17 – 33 °C |
|
Relative humidity (non-condensing) |
20 – 70 % |
|
Water temperature maintenance accuracy |
± 0.5 °C |
|

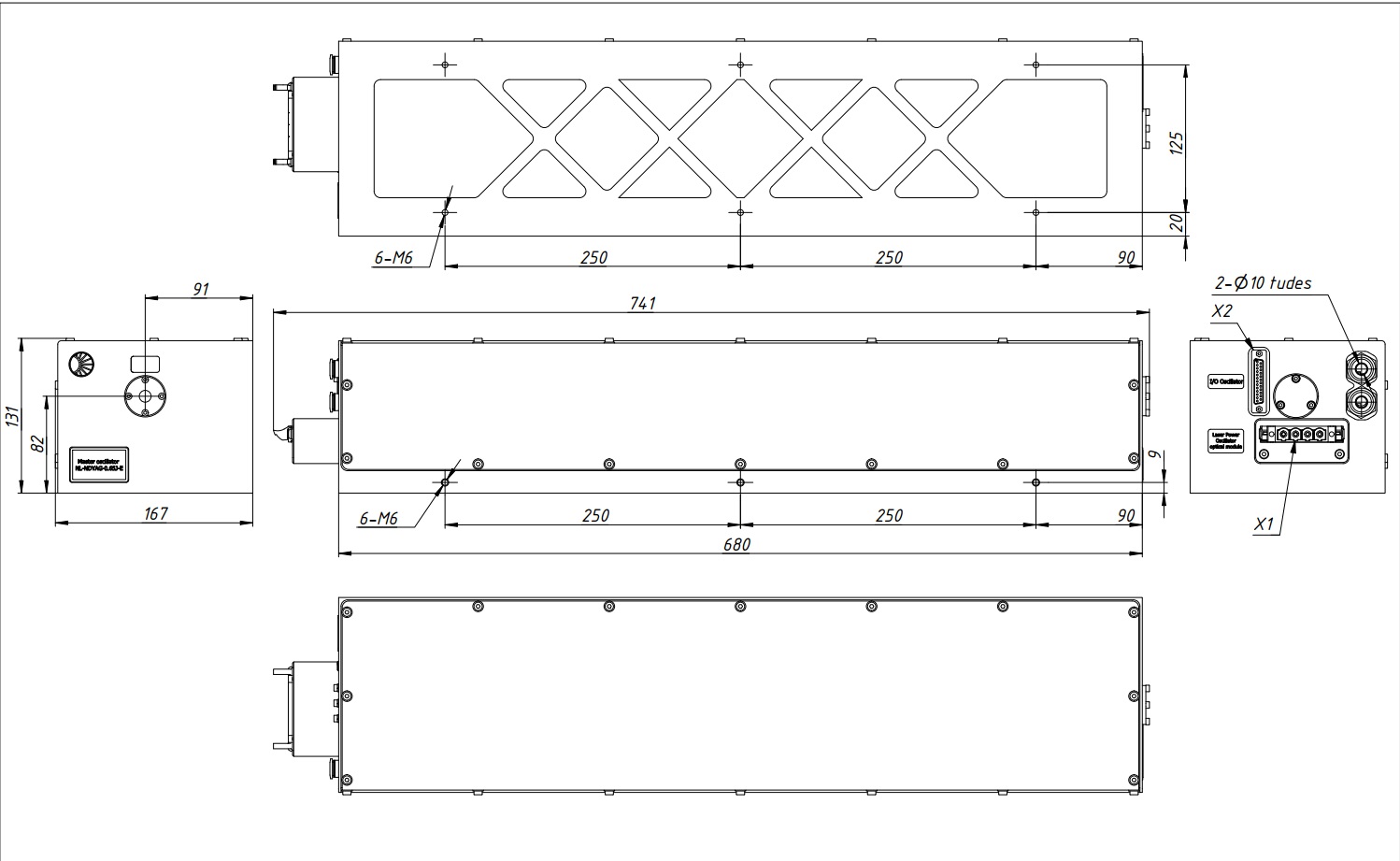

Laser head dimensions |
680 x 167 x 131 mm |
