NML-NDYAGKTP-110-0.65J-E



A solid state quasi-continuous laser system with 805nm diode pumping of Nd:YAG rod (1064nm) and second harmonic generation based on KTP rod (532nm). The system features a flat top 9mm beams at 1064nm and 532nm wavelengths.

Cosmetology / Aesthetic Medicine

Request Price Request Price

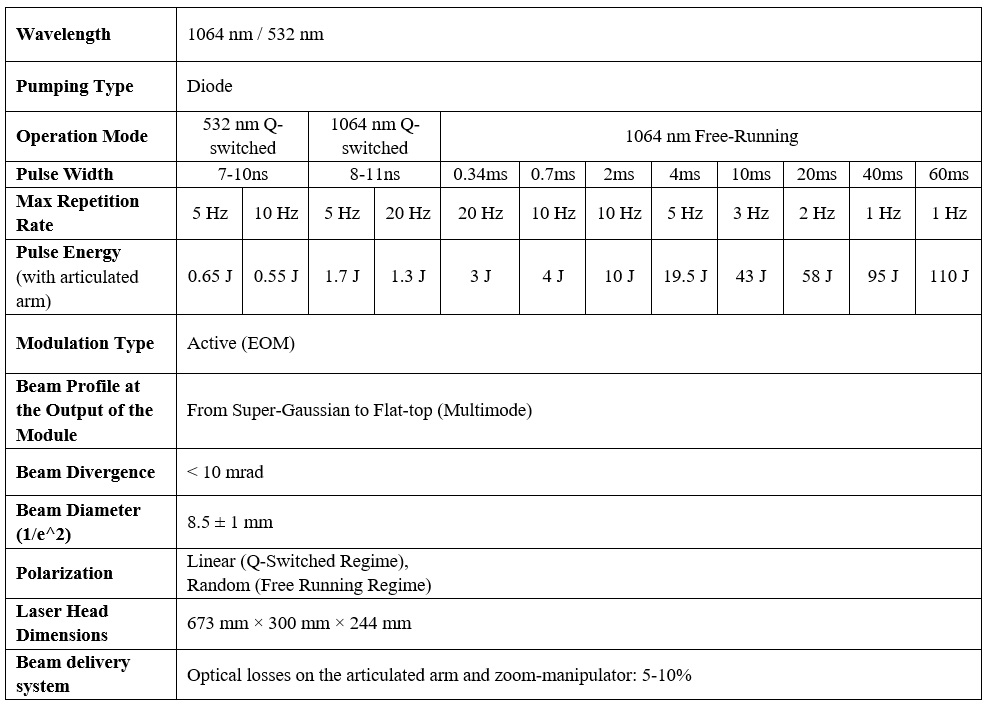

Specification

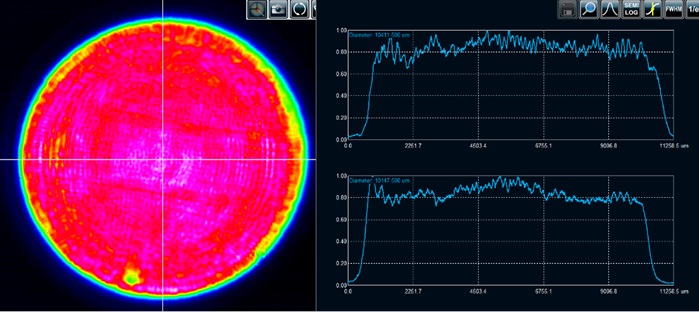

Beam profile at the output of the 1700 mm articulated arm (1064 nm, free running mode 0.34ms, 10 Hz, 3 J)

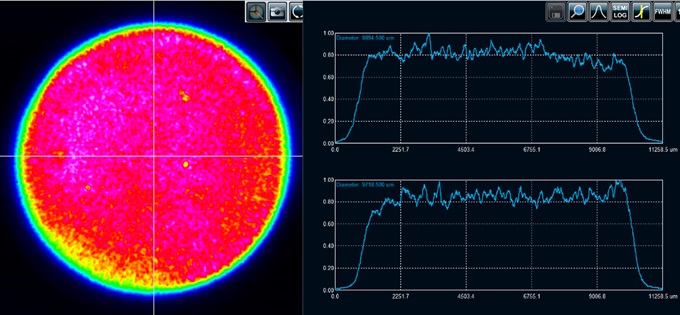

Beam profile at the output of the 1700 mm articulated arm (1064 nm, Q-Switched mode 5 Hz, 1 J)

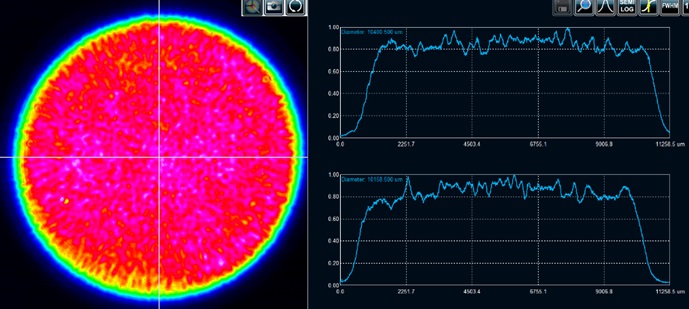

Beam profile at the output of the 1700 mm articulated arm (532 nm, Q-Switched mode 5 Hz, 0.5 J)

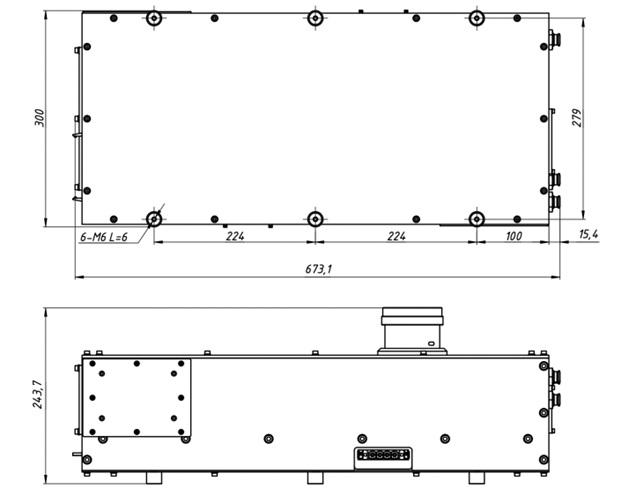

Dimensional drawing
