PL-NDYAG-2mJ-370P

PL NDYAG 2mJ P-series - is a picosecond passively Q-switched diode-pumped Nd:YAG/Cr:YAG microlaser. The PL-NDYAG-2mJ-P Series offer customization in pulse length from 370ps to 1,000ps.

Request Price Request Price

Description

The laser delivers >2mJ pulses with picosecond pulse duration and a near-TEM00 beam.

It can be used as a source of picosecond radiation or as a master oscillator of picosecond laser systems with high energy in a pulse.

Applications: cosmetology, material processing, marking, spectroscopic and nonlinear optics applications, other science applications

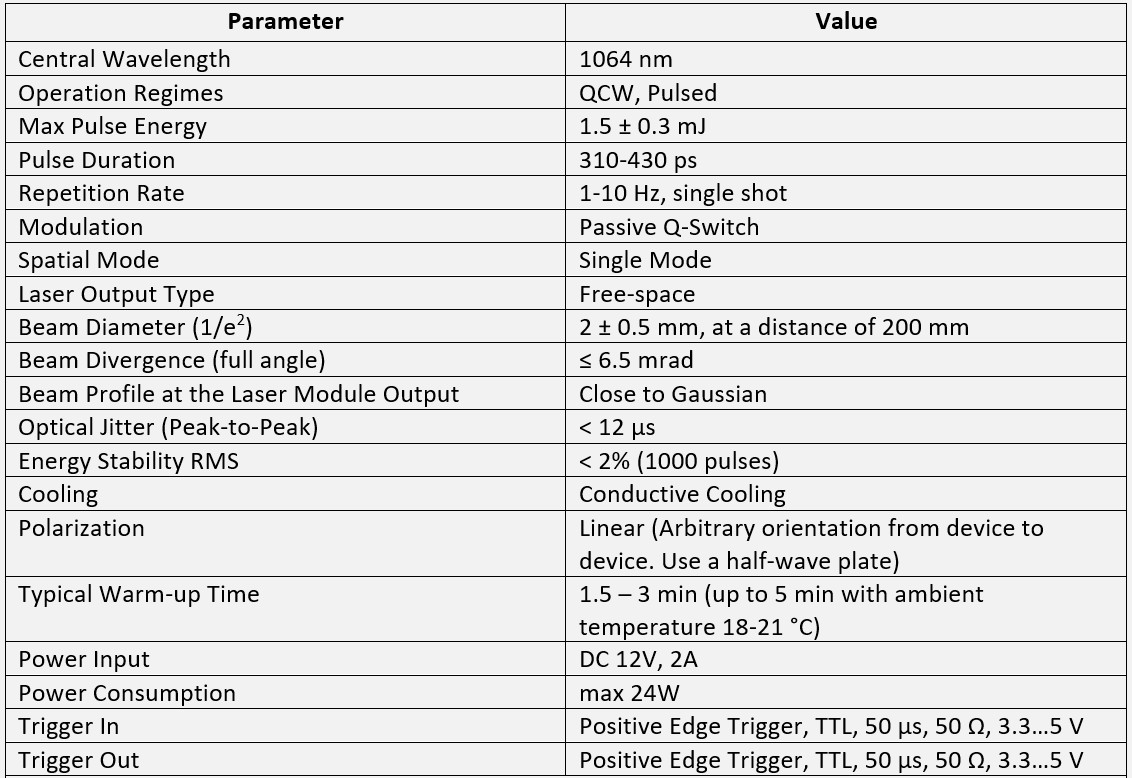

Specification



PL-NDYAG-2mJ-P Series

Model

PL-NDYAG-2mJ-370P

PL-NDYAG-2mJ-450P

PL-NDYAG-2mJ-500P

PL-NDYAG-2mJ-700P

PL-NDYAG-2mJ-1000P

Wavelength

1064 nm

Pulse Width

370 ± 60 ps

450 ± 60 ps

500 ± 60 ps

700 ± 80 ps

1000 ± 120 ps

Pulse Energy

2 ± 0.5 mJ

Repetition Rate

1-10 Hz, Single shot

Modulation type

Passive Q-switch

Pulse to Pulse Energy Stability (RMS)

< 1%

Beam Profile at the Output of the Module

Close to Gaussian

Beam Divergence

< 5 mrad

Beam Diameter (1/e2)

0.7 ± 0.25 mm

Polarization Ratio

Linear, >1:50

Cooling Type

Conductive Cooling

Typical warm-up time

1 - 2 min

Power Input

DC 12V, 1.2A

Umbilical length (cable)

0.5 ± 0.1 m

Trigger In (start laser pulses)

Positive Edge Trigger, TTL, 50 μs, 50 Ω

Trigger Out (check laser pulses)

Positive Edge Trigger, TTL, 50 μs, 50 Ω

Laser module dimensions

160×85×45.5 mm

Laser driver dimensions

125×72.5×40.4 mm

Operating temperature

15 – 37 °

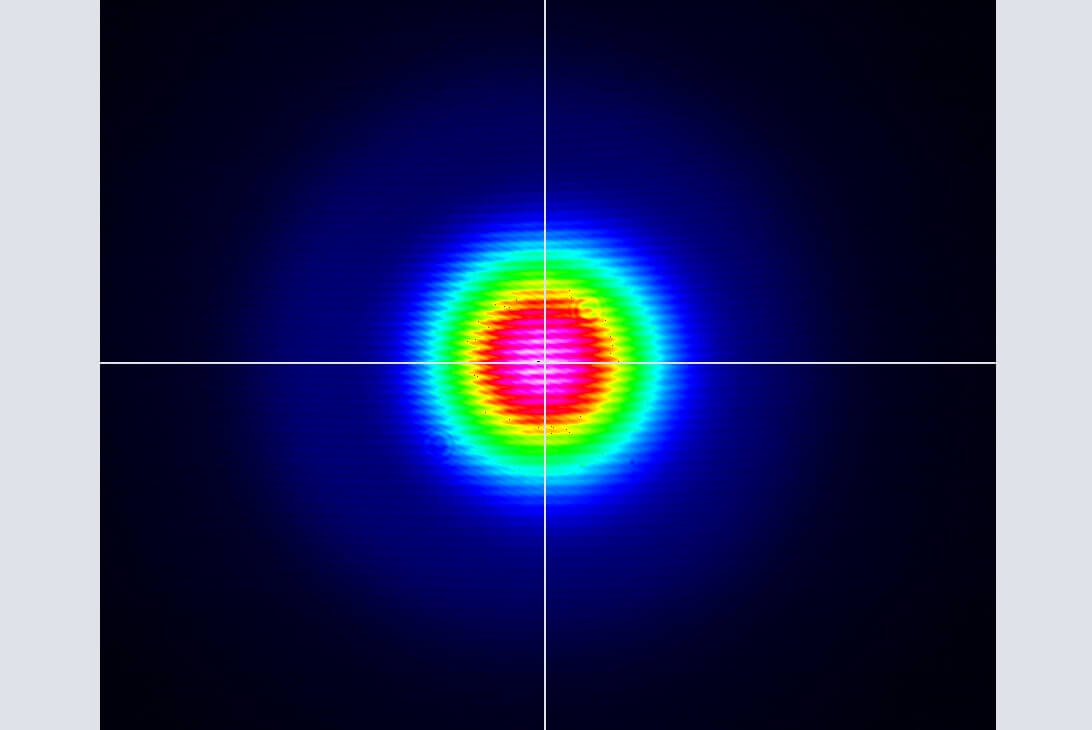

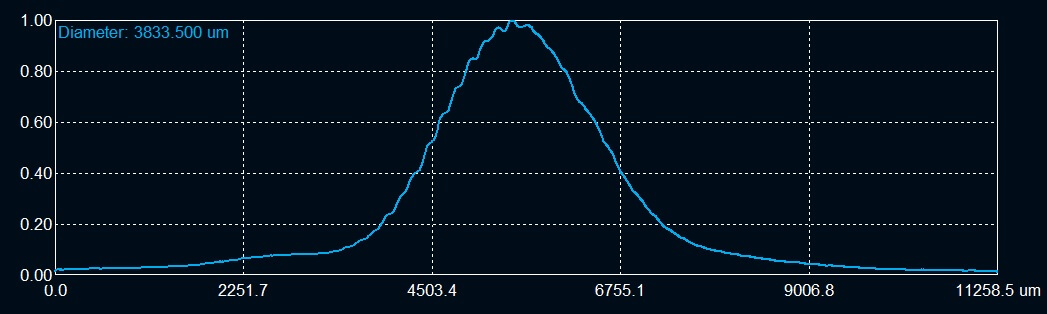

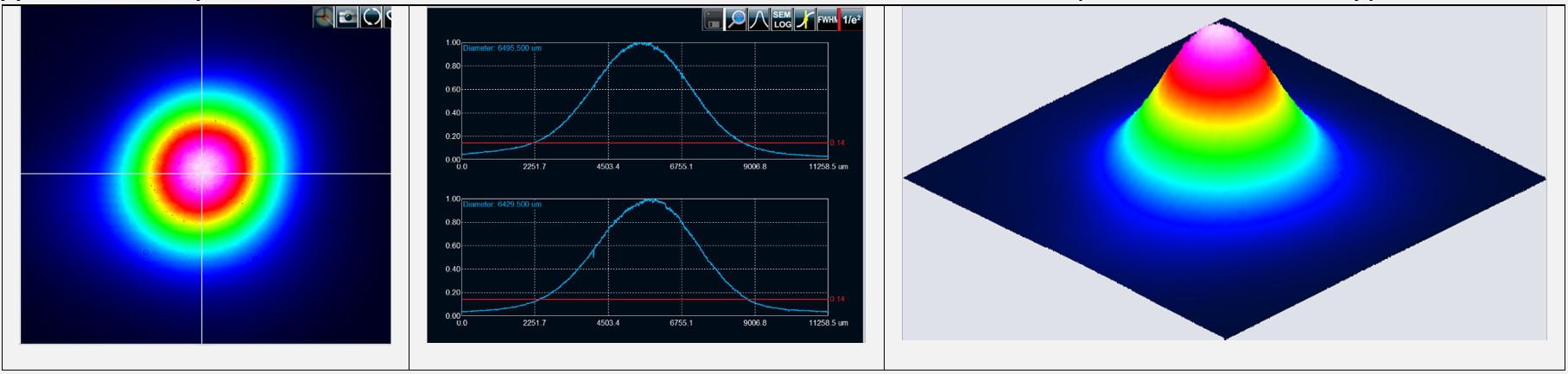

Typical beam profile at a distance of 1000 mm from the laser module

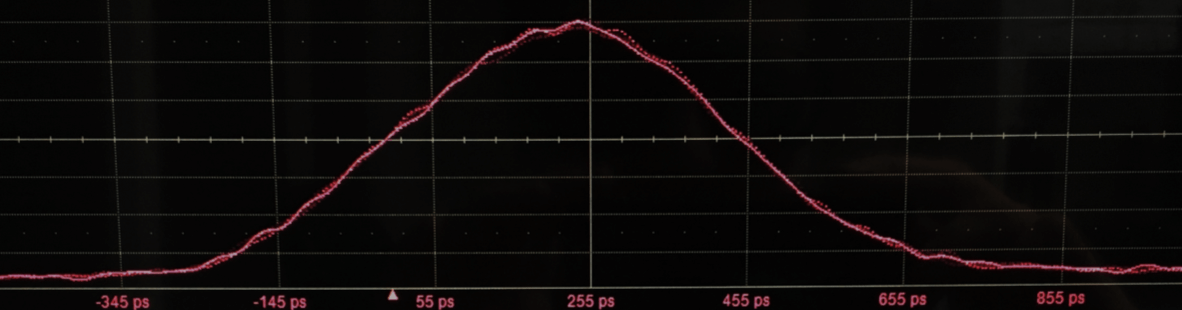

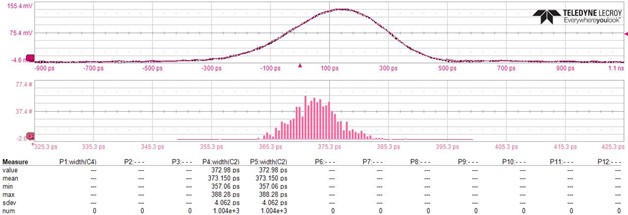

Single pulse (500 ps) oscillogram

Dimensional drawing

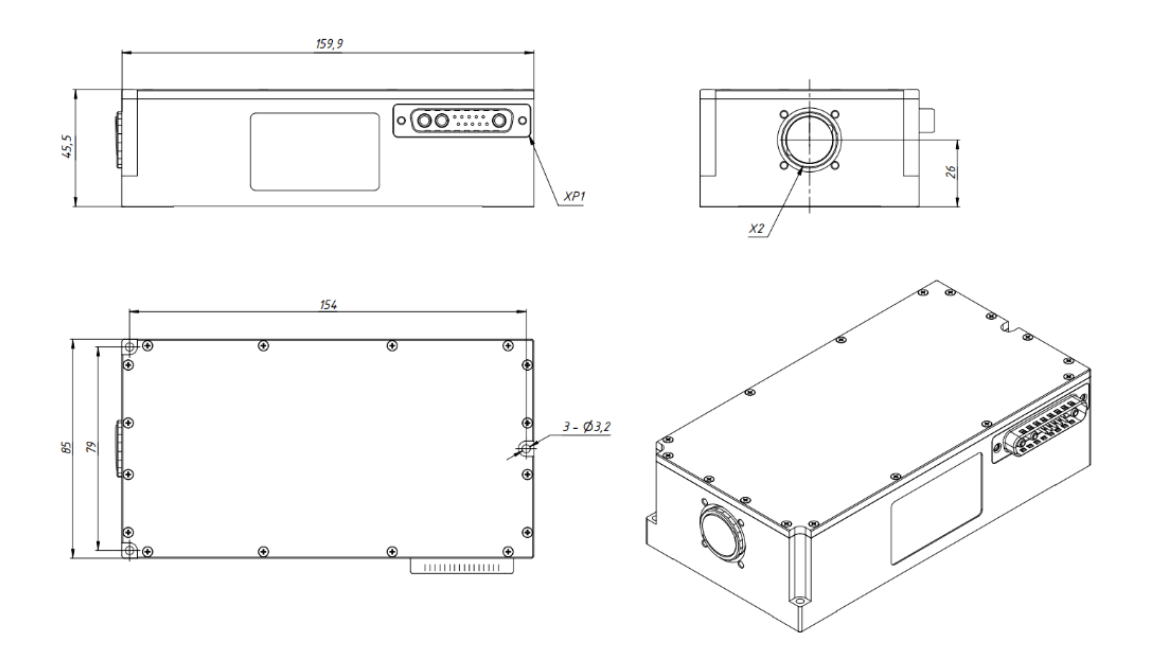

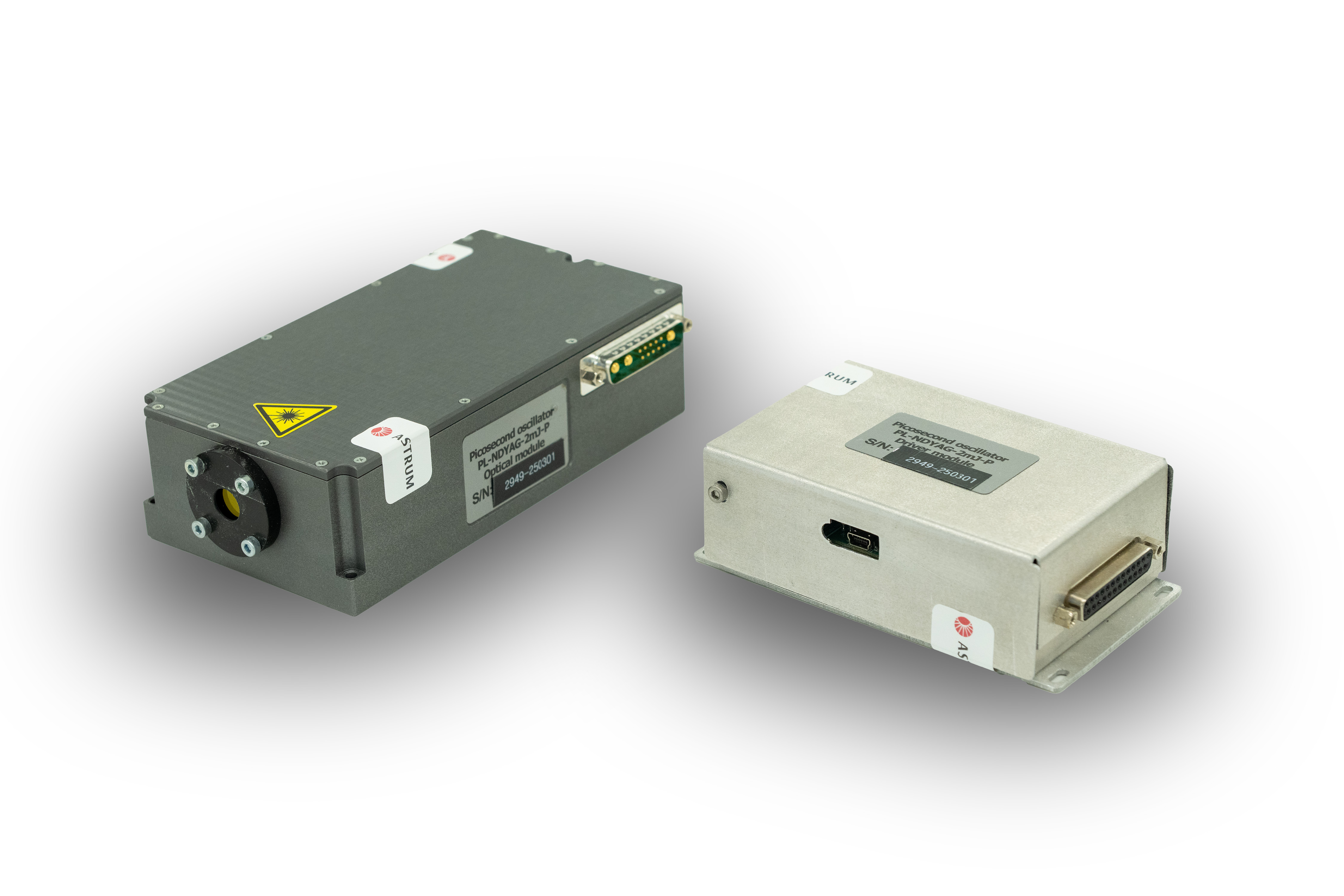

Optical module

Optical module

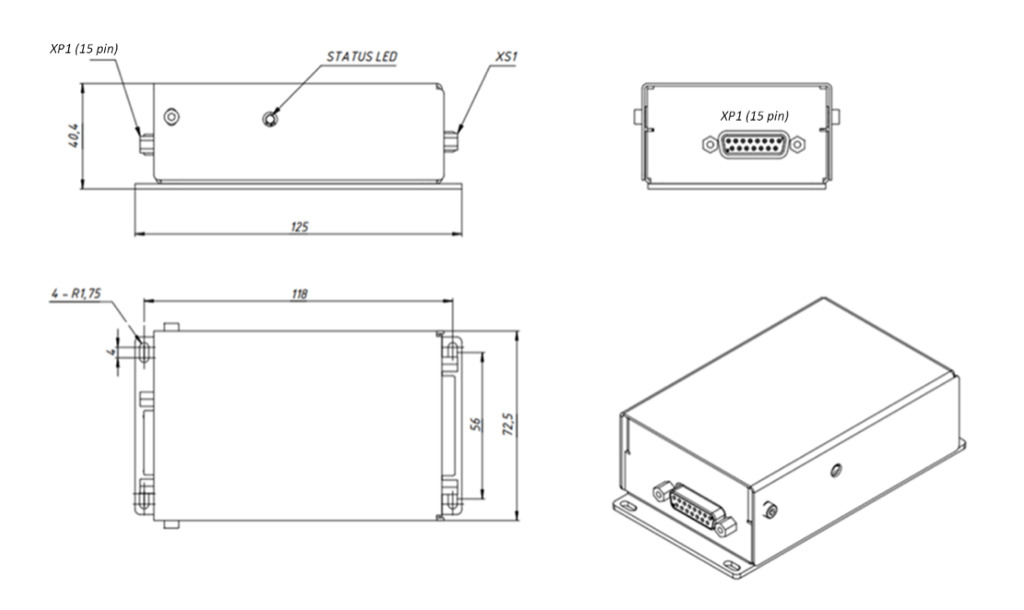

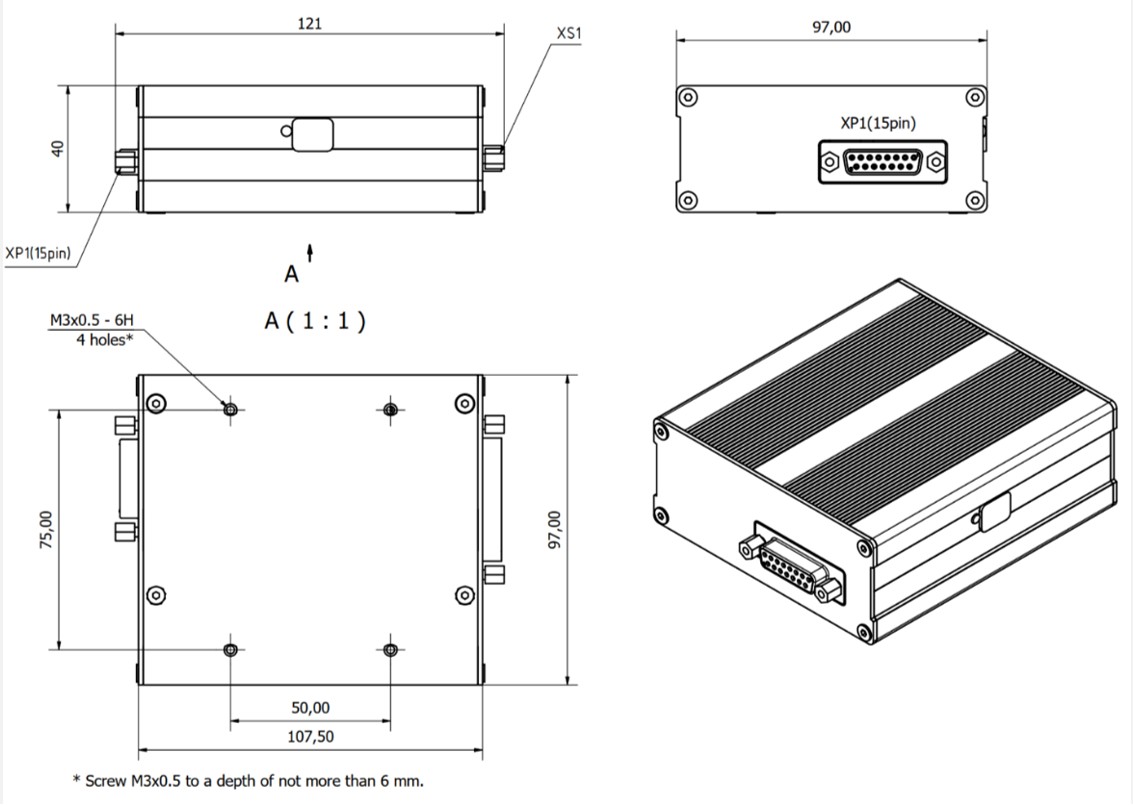

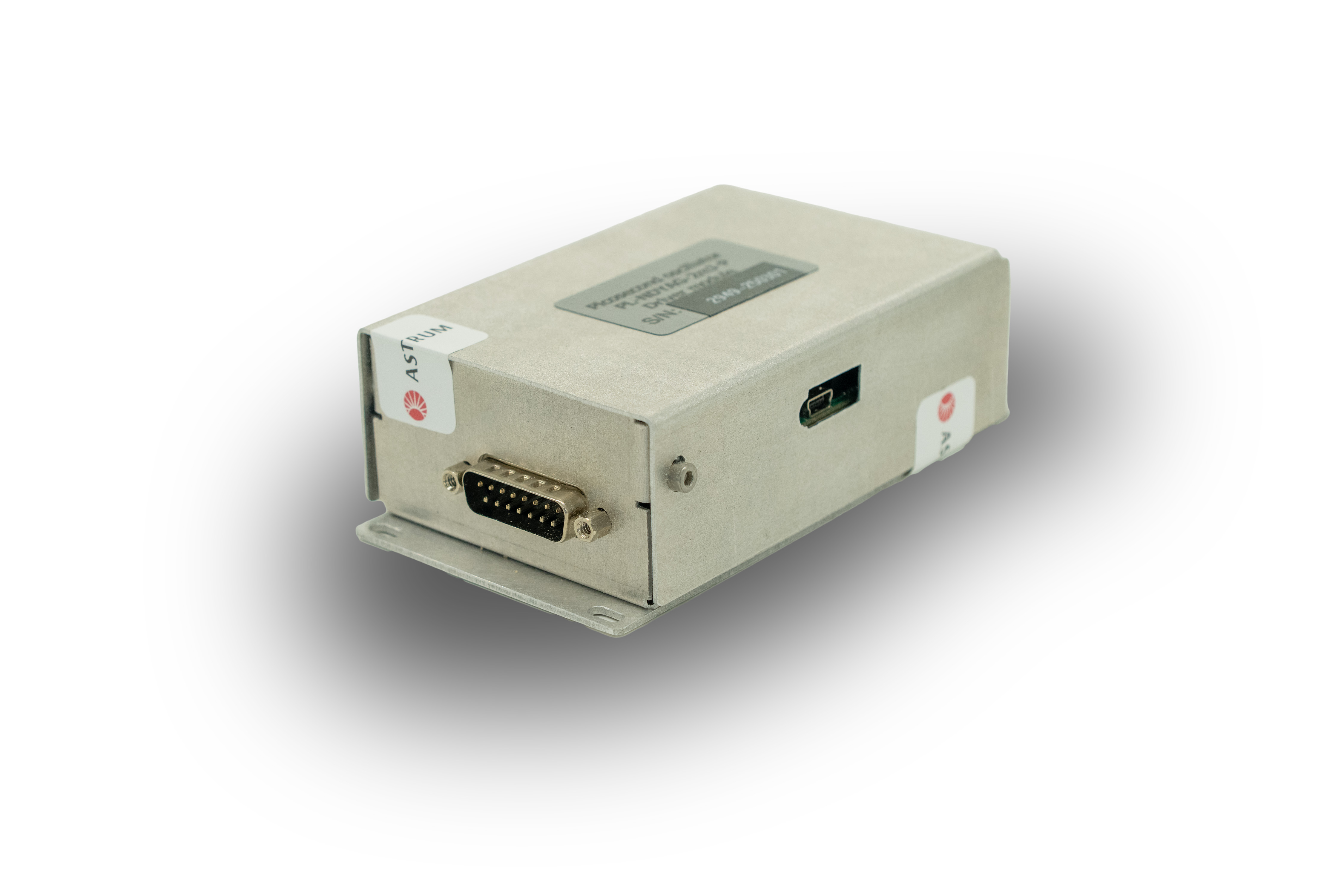

Laser diode driver

Laser diode driver
