ML-TMYAG-45J

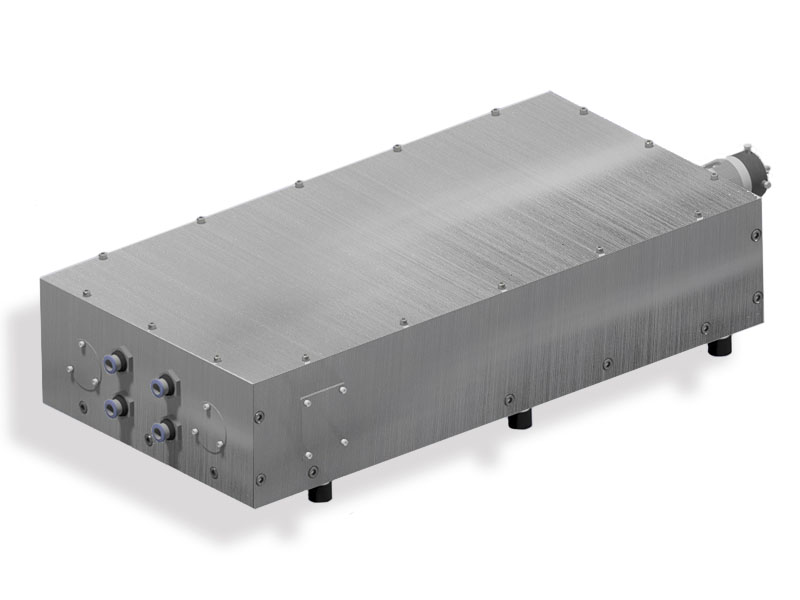

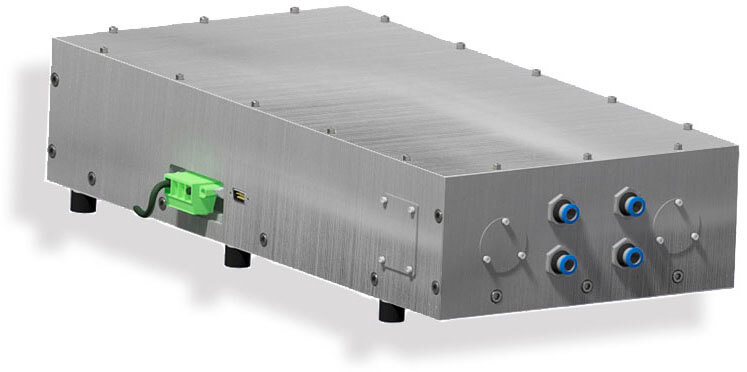

Complete OEM solution for a Pulsed/CW Tm laser system: laser module, driver, control and cooling system. The module can be operated both in quasi-continuous or pulsed operation modes to offer maximum flexibility during use.
Complete OEM solution for a Pulsed/CW Tm laser system: laser module, driver, control and cooling system. The module can be operated both in quasi-continuous or pulsed operation modes to offer maximum flexibility during use.
|
Operation mode |
|||||
|
|
Units |
Quasi-continuous |
Pulsed |
||
|
Active element |
Tm:YAG |
||||
|
Wavelength |
nm |
2020 |
|||
|
Pulse length |
ms |
5-30 |
0.5-2 |
2-50 |
|
|
Duty cycle, max |
% |
50 |
5 |
5 |
|
|
Pulse power (@ duty cycle, %) |
W |
450(<20)/270(50) |
1350 (<2)/630(5) |
900 |
|
|
Fiber output |
from 300micron, NA=0.22 |
||||
|
Beam profile at fiber output |
multimode, top-flat |
||||
