NML-NDYAG/KTP-5J-A-532

A 5J CW diode-pumped laser system solid state quasi-continuous laser system with diode pumping and second harmonic generation (KTP, 532nm).

Cosmetology / Aesthetic Medicine

Request Price

Description

solid aluminum case
808nm diode pumping
active rod - KTP
continuous and quasicontinuous laser emission
air or water closed-circuit cooling system
Peltier elements to ensure selected temperature
for components of the system
temperature sensor outputs inside the module

Configuration

- Optical module
- Acoustooptical modulator
- Acoustooptical modulator driver
- Laser diode
- Laser diode driver
- System power supply units
- Controller
- Cooling system

Supply options

- laser system + RS485/USB master controller + laser diode driver
- laser system only (laser diode power and control, thermal stabilization, wavelength switching is ensured by Customer)
- water or air cooling system
- fiber or optical output connection
- customized design

Specification

Model	NML-NDYAG/KTP-5J-A-532
Pumping
Type	Diode
Power	3.5 kW
Modulation type	Acousto-optic modulation (AOM)
Pulse energy
at 532 nm, 10 ms	0.8 J
at 532 nm, 60 ms	5 J

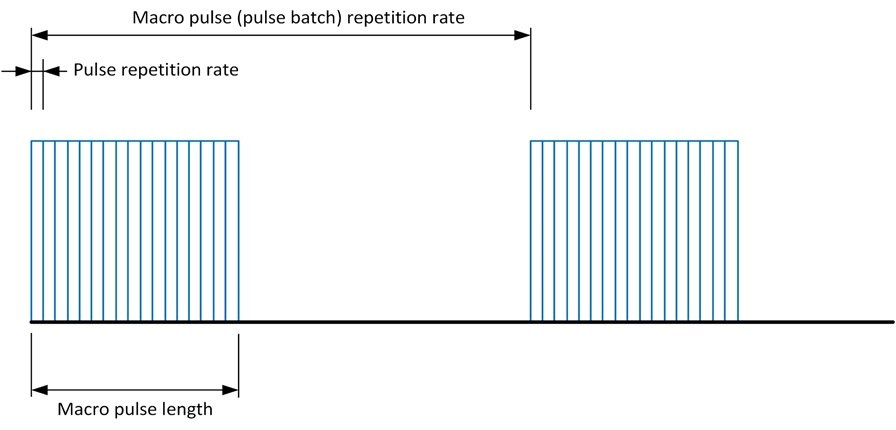

Pulse duration
Q-switched pulse	70 - 200 ns
Macro pulse (pulse batch)	10 - 60 ms
Repetition rate
Q-switched pulse	20 kHz
Macro pulse (pulse batch)	1 - 18 Hz
Parameter
Beam divergence	< 3 mrad
Typical beam diameter	2-3 mm
Beam profile at the output aperture	near Gaussian
Beam diameter at the output of fiber coupled manipulator (option)	1-6 mm / 1.5-9 mm
Beam profile at the output of fiber coupled manipulator (option)	flat top
Mode	Multimode
Cooling requirements
Water temperature	stabilized, from range 17-27 °C
Inlet pressure	1-4 bar
Water flow	4-10 l/min
