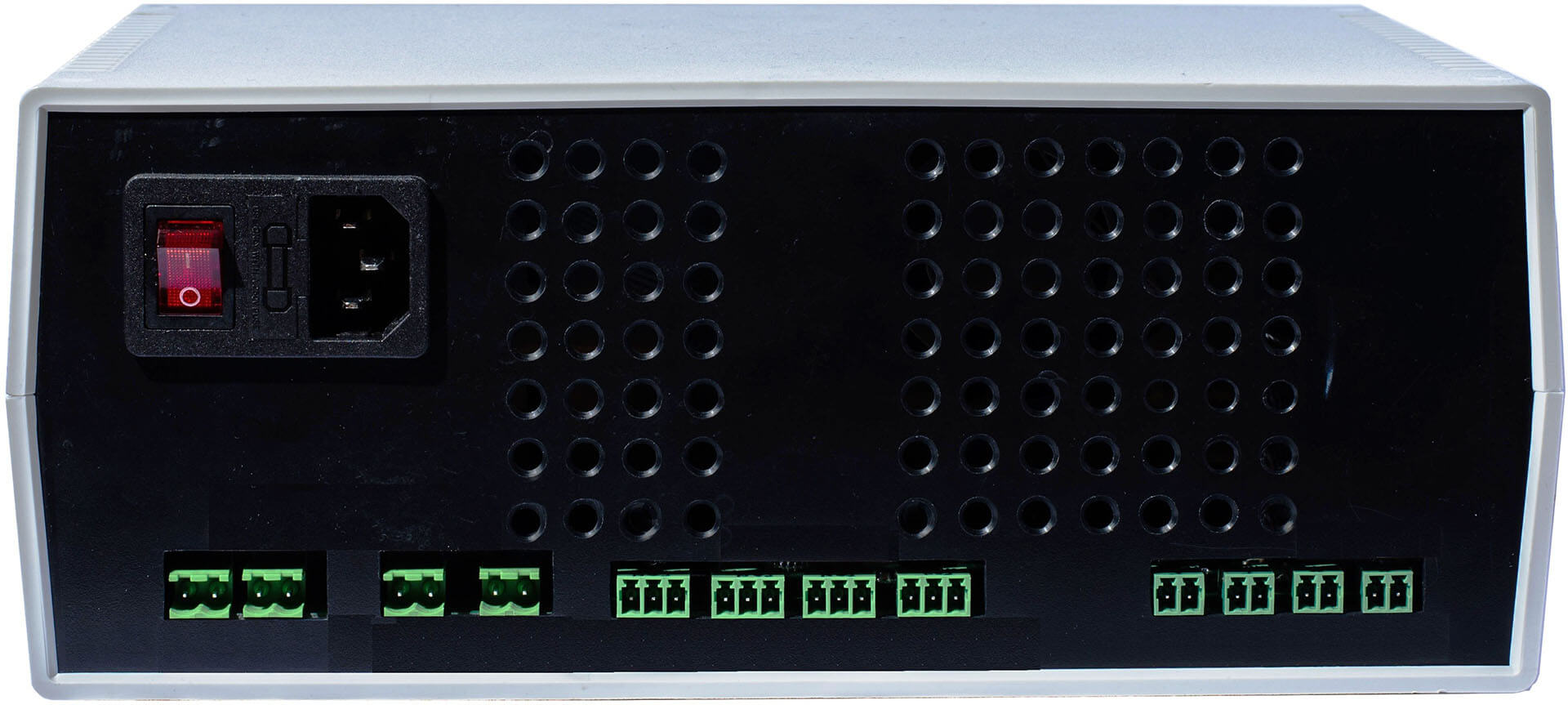

TCM3/1

The thermal stabilization unit is designed for thermal stabilization using Peltier elements. The thermal stabilization is done through pulse-length modulation. The device features up to 4 channels configured for cooling and 1 channel configured for heating.

Request Price Request Price

Description

  • The unit is designed for thermal stabilization using Peltier elements.
  • The thermal stabilization is done through pulse-length modulation.
  • The device has 2 or 4 channels configured for cooling and 1 channel configured for heating.

Specification

Max fundamental permissible error ± 1%
Thermal sensor type EPCOS NTC thermistor, R/T char. 8016
Polling interval for input signals 100ms
Active transistor output (cooling)
Output voltage 12V
Maximum load current 6A
Active transistor output (heating)
Output voltage 12V
Maximum load current 3A
Output signal type Pulse-length modulation
Additional input/output signals
Fan control output (3 indep channels), load current Max 300mA
Fan tachometer input (4 channels)
Note. Cooling outputs are designed for Peltier element connection, 12V voltage rating. Heating channel requires a resistor.See typical connection diagram.
RS-485
Transmission protocol MODBUS-RTU
Transmission rate 9,600 bit/s
The number of transmitters-receivers in line 256
Galvanic insulation voltage 2kV
General
Supply voltage 90 ÷ 250V
Wattage 300VA
Max outline dimensions 260×180×105mm
Weight, max 2kg
Ambient air temperature 10...45 °С
Average lifetime 10 years
