NDYLF-QCW5.4-27-6.35

Safe and rigid housing. EEL diode pumping. Optimized for long service life performance.

1047/1054nm
WL
QCW
Mode
5.4kW
Peak pump
0.5ms
Pulse length
0.61J
Pulse energy
Request Price Request Price

Description

The module is designed to be used as a part of generator in an intracavity application, as well as an amplifier for an extracavity application.

Specification

Model NDYLF-QCW5.4-27-6.35
Rod material Nd:YLF
Rod concentration 1%
Rod diameter 6.35mm
Rod length 85mm
Operation mode QCW
Peak pump power 5.4kW



Pulse Width 0.5ms
Pulse repetition rate 10Hz
Current 180A

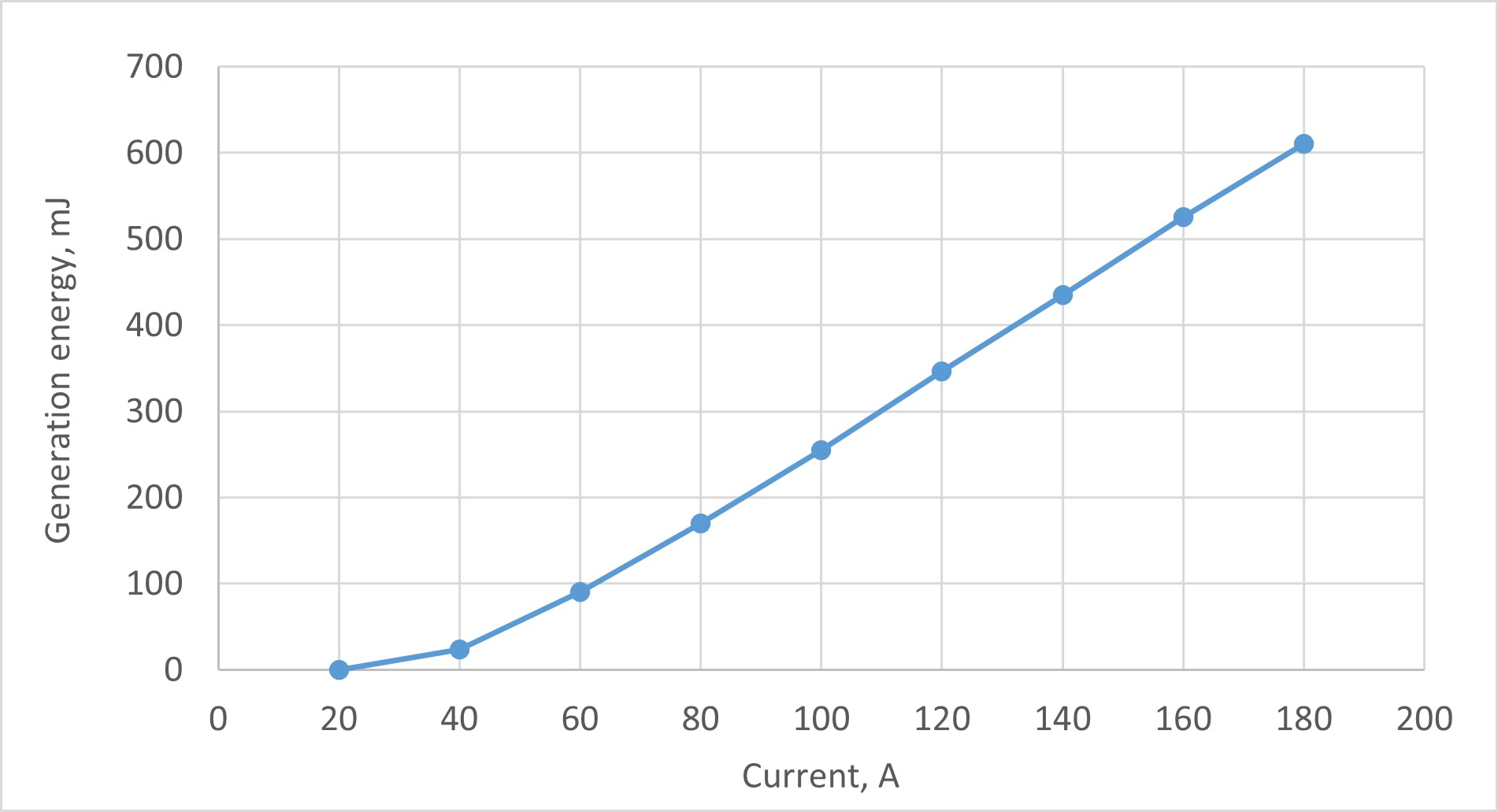

Typical QCW energy

(from a gain switched, 260mm long cavity with a flat 80% reflectivity output coupler and a flat high reflector)

0.61J



Small signal gain

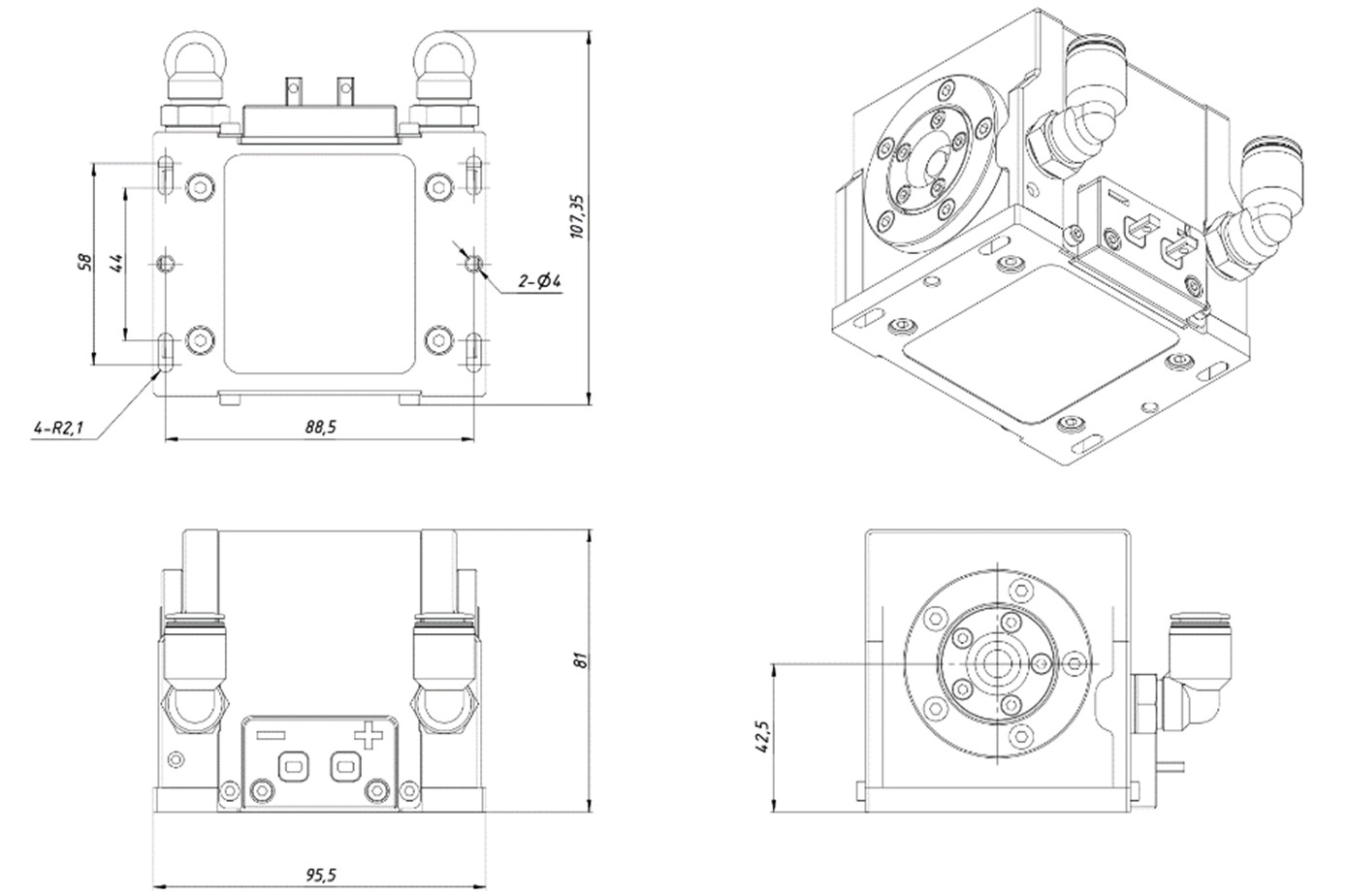

Dimensional drawing
