NDYAG-QCW10-45-6.35

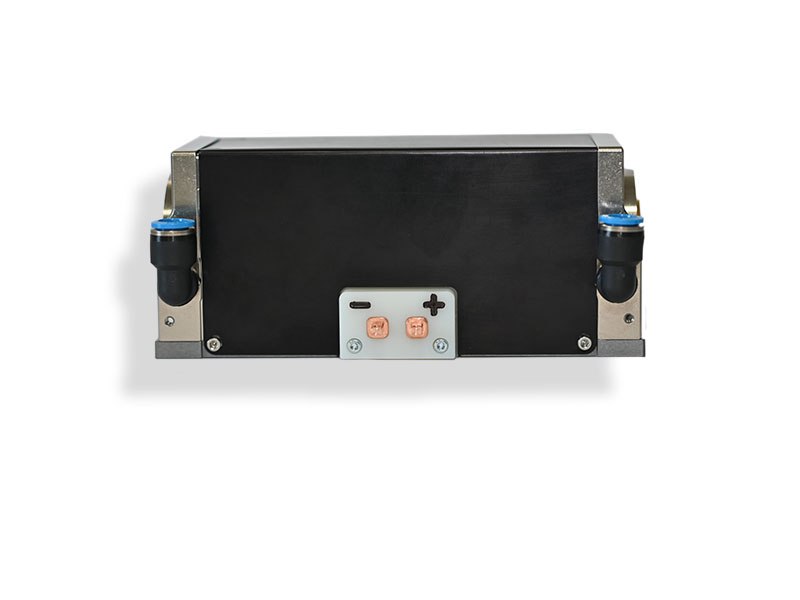

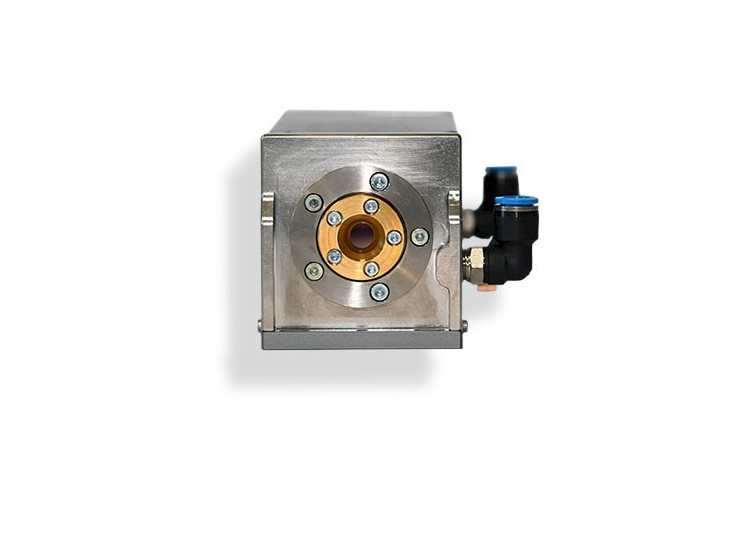

Safe and rigid housing. EEL diode pumping. Optimized for long service life performance.

1064nm
WL
QCW
Mode
10kW
Peak pump
0.34ms
Pulse length
1.05J
Pulse energy
Request Price Request Price

Description

The module is designed to be used as a part of generator in an intracavity application, as well as an amplifier for an extracavity application.

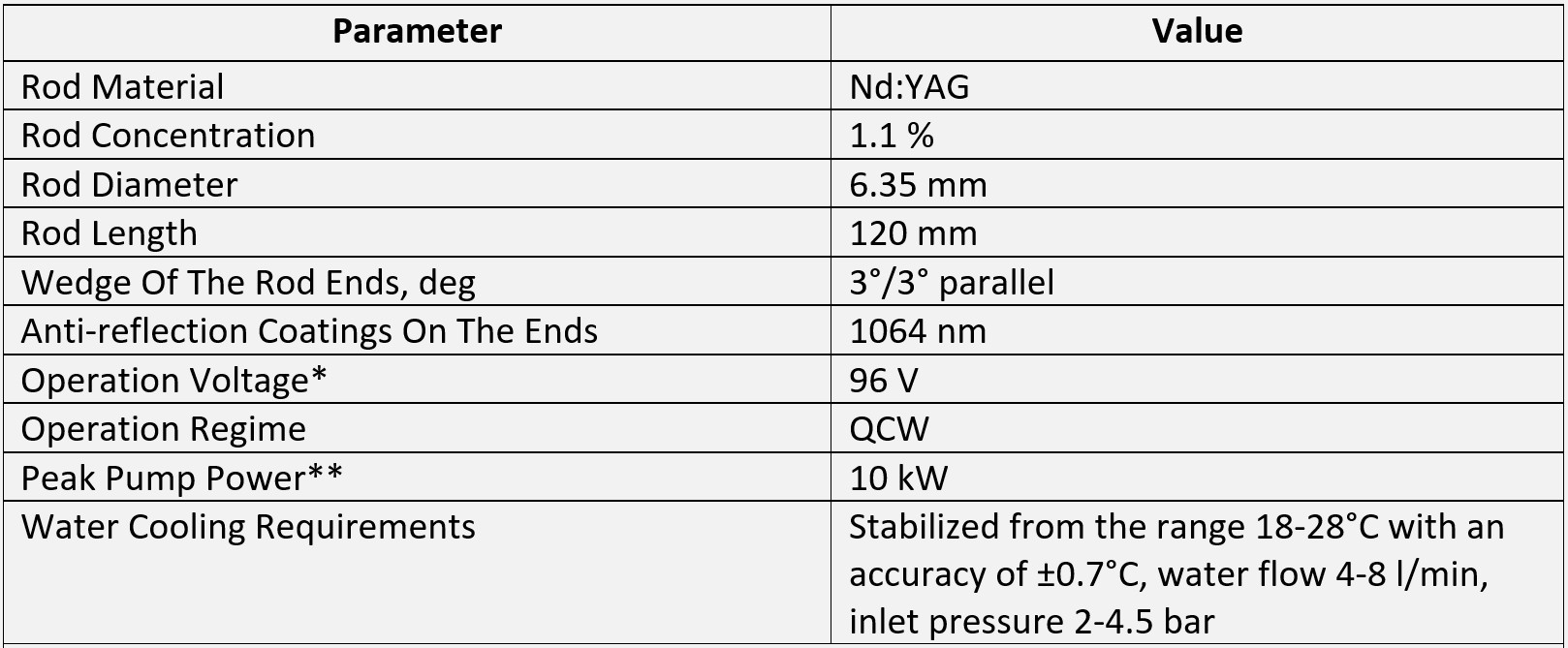

Specification

Model NDYAG-QCW10-45-6.35
Rod material Nd:YAG
Rod concentration 1.1%
Rod diameter 6.35mm
Rod length 120mm
Rod wedge 3°/3° parallel
Operation mode QCW
Peak pump power 10kW
Small Signal Gain 22.7



Pulse Width 0.34ms
Pulse repetition rate 20Hz
Current 210A

Typical QCW energy

(from a gain switched, 260mm long cavity with a flat 80% reflectivity output coupler and a flat high reflector)

1.05J

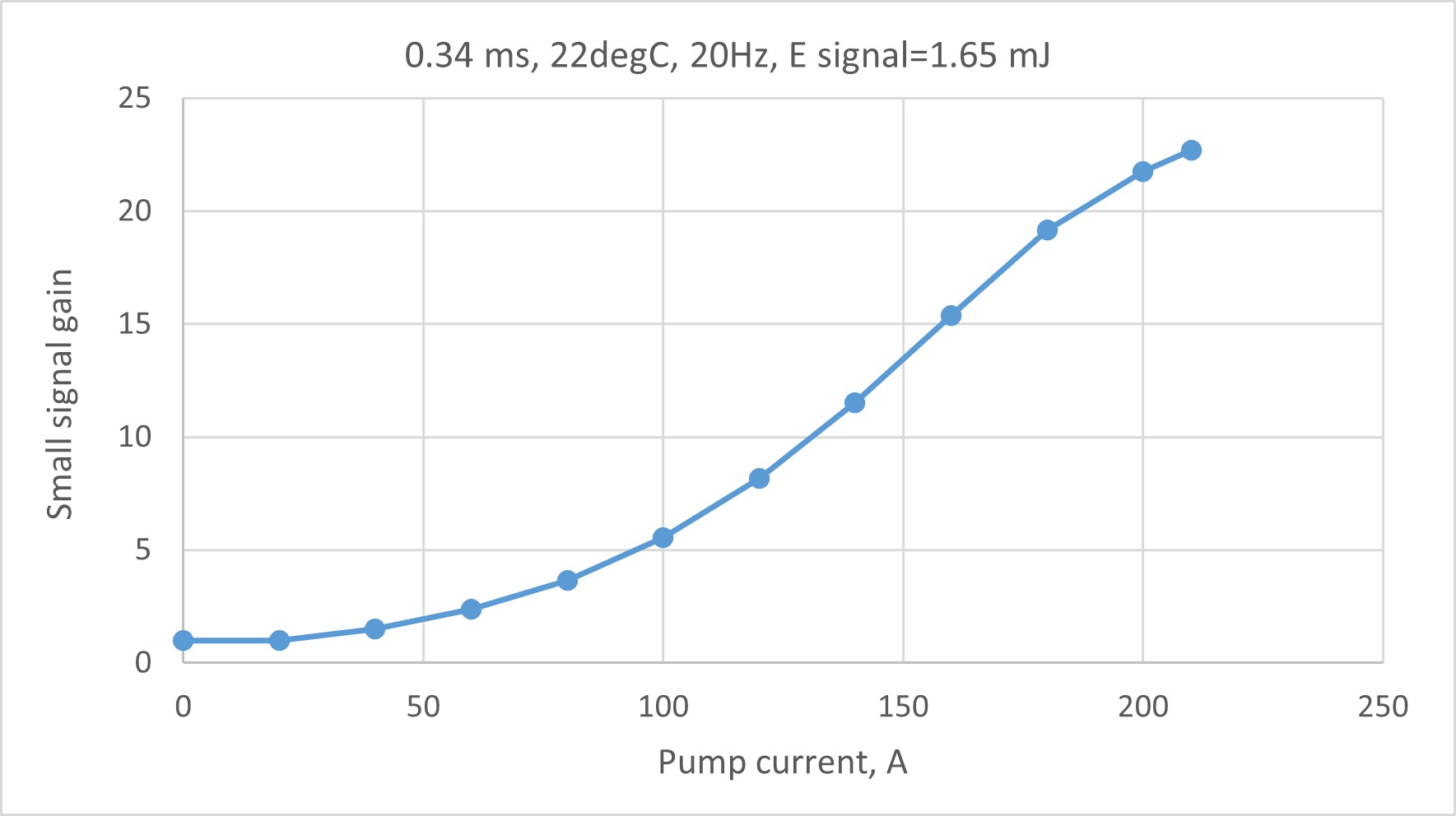

Small signal gain
