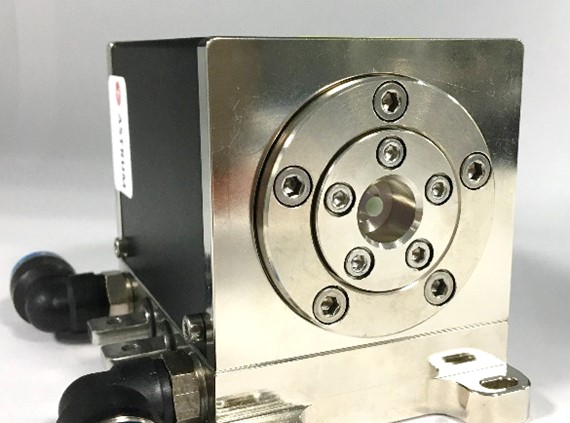

NDYAG-QCW1.5-10-4

Optimized for 300Hz operation. EEL diode pumping.

1064nm
WL
QCW
Mode
1.55kW
Peak pump
0.2ms
Pulse length
0.11J
Pulse energy
Request Price Request Price

Description

The module is designed to be used as a part of generator in an intracavity application, as well as an amplifier for an extracavity application.

Specification

Model NDYAG-QCW1.5-10-4
Rod material Nd:YAG
Rod concentration 1.1±0.1 %
Rod diameter 4mm
Rod length 83mm
Operation mode QCW
Operating voltage 17- 20V
Peak pump power 1.55kW
Small Signal Gain 3.5



Pulse Width 0.2ms
Pulse repetition rate 300Hz
Current 150A

Typical QCW energy

(from a gain switched, 135mm long cavity with a flat 80% reflectivity output coupler and a flat high reflector)

0.11J

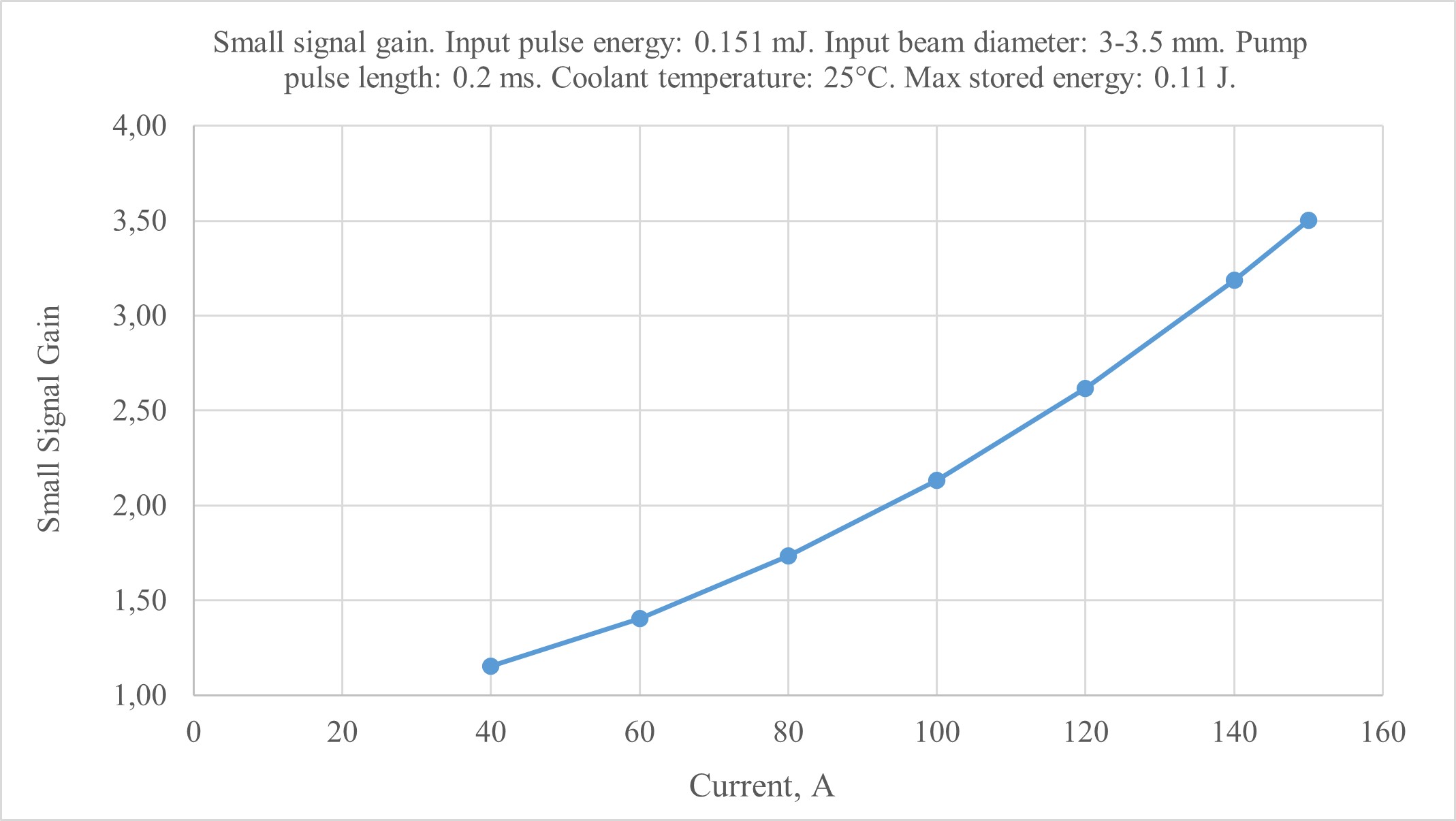

Small signal gain

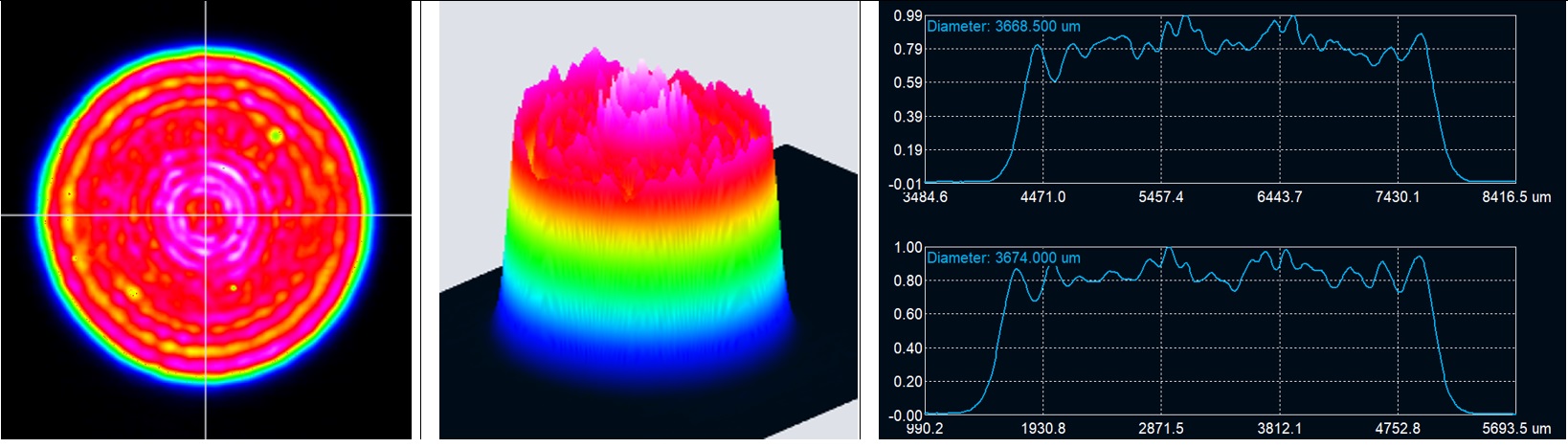

Beam profile at the output (at 160mm from the coupler) : 20Hz, 0.11J

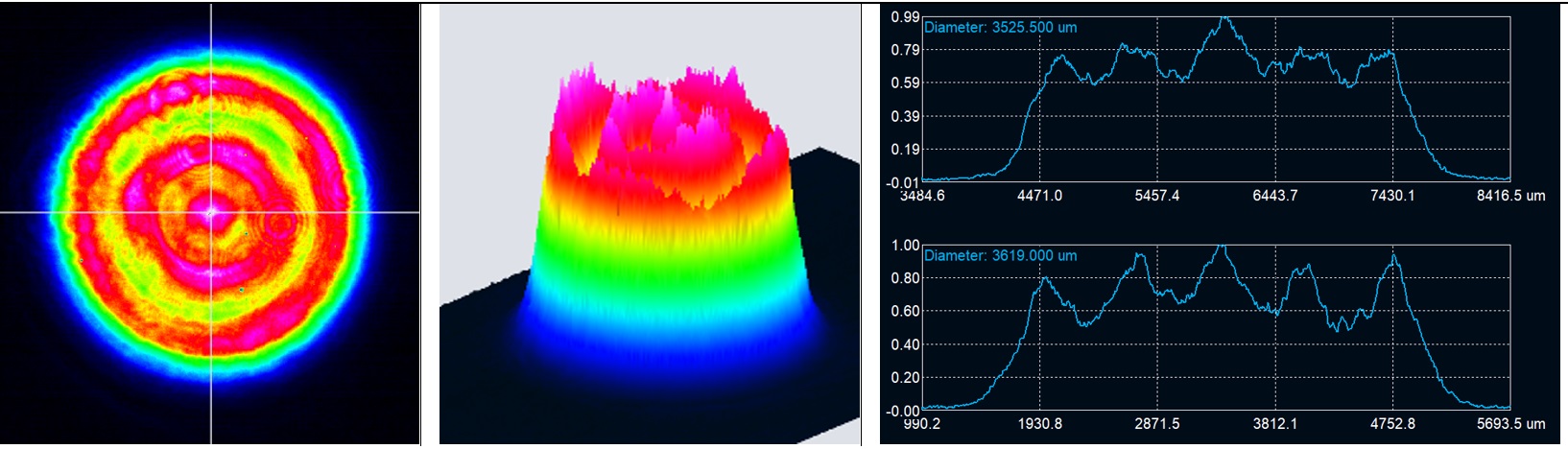

Beam profile at the output (at 160mm from the coupler) : 100Hz, 0.11J

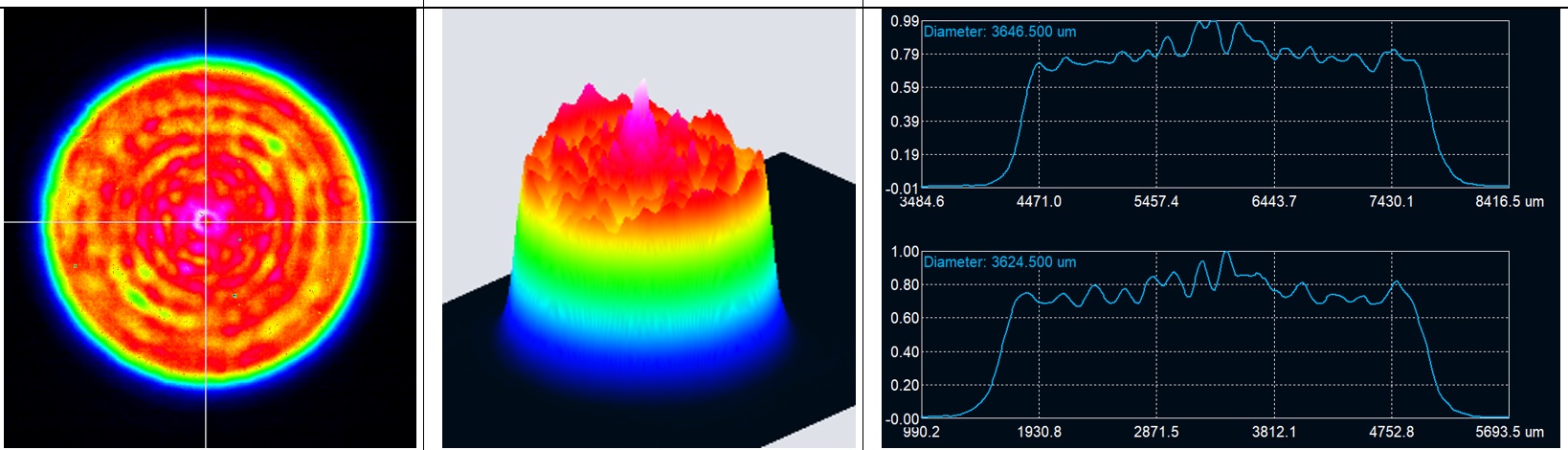

Beam profile at the output (at 160mm from the coupler) : 300Hz, 0.11J

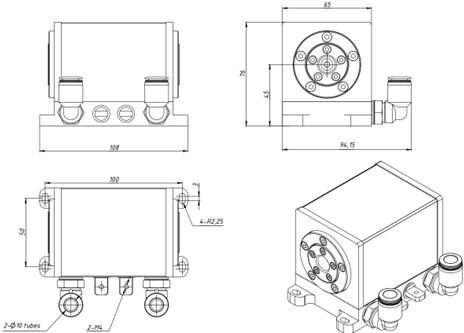

Dimensional drawing
