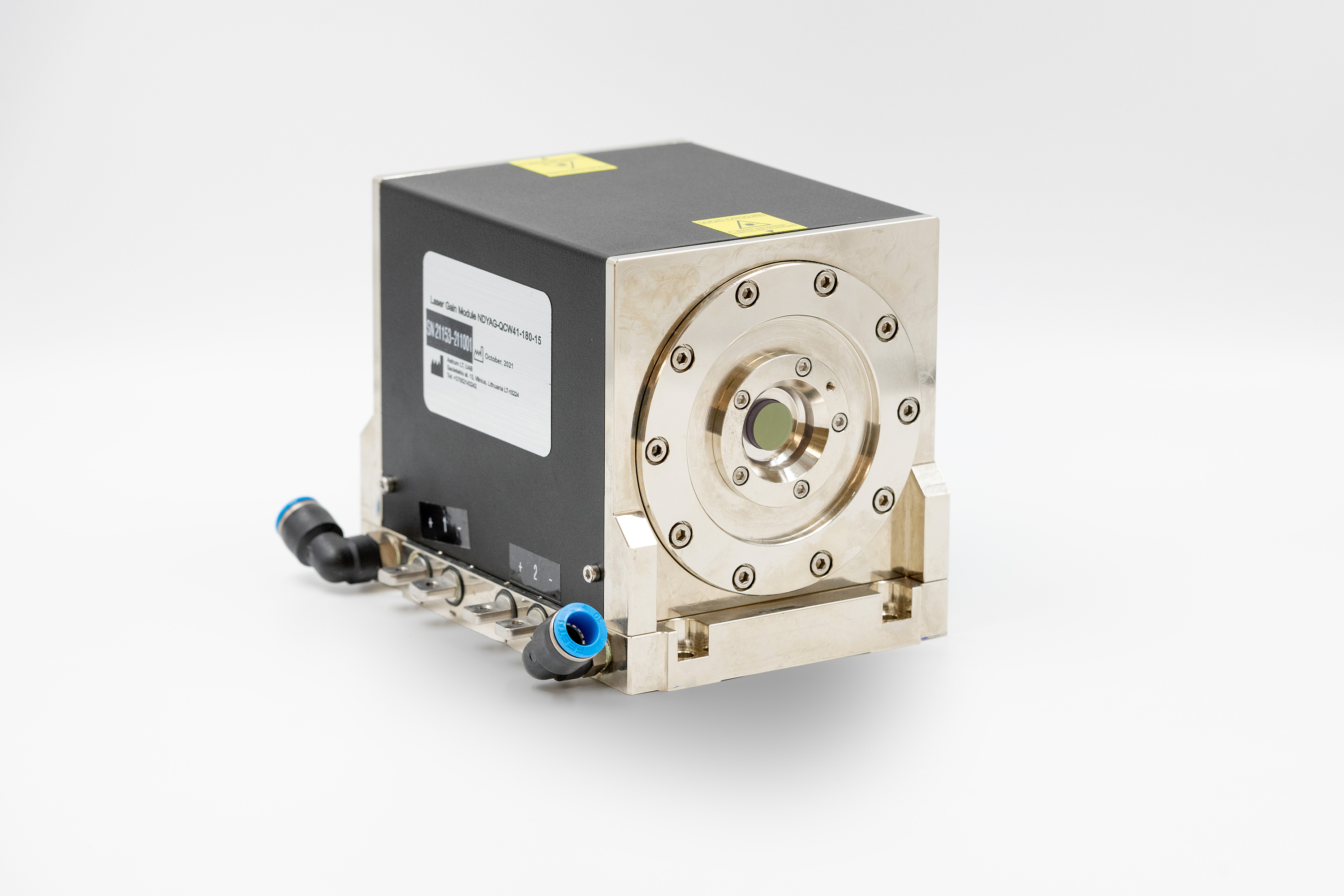

NDYAG-QCW41-180-15

Safe and rigid housing. EEL diode pumping. Optimized for long service life performance.

1064nm
WL
QCW
Mode
41kW
Peak pump
0.34ms
Pulse length
5J
Pulse energy
Request Price Request Price

Description

The module is designed to be used as a part of generator in an intracavity application, as well as an amplifier for an extracavity application. Popular for MOPA build and cascade amplification system.

Specification

Model NDYAG-QCW41-180-15
Rod material Nd:YAG
Rod concentration 0.5%
Rod diameter 15mm
Rod length 135mm
Rod wedge 2°/2° parallel
Operation mode QCW
Peak pump power 41kW
Small Signal Gain 12-13.5



Pulse Width 0.34ms
Pulse repetition rate 10Hz
Current 220A

Typical QCW energy

(from a gain switched, 260mm long cavity with a flat 80% reflectivity output coupler and a flat high reflector)

5J

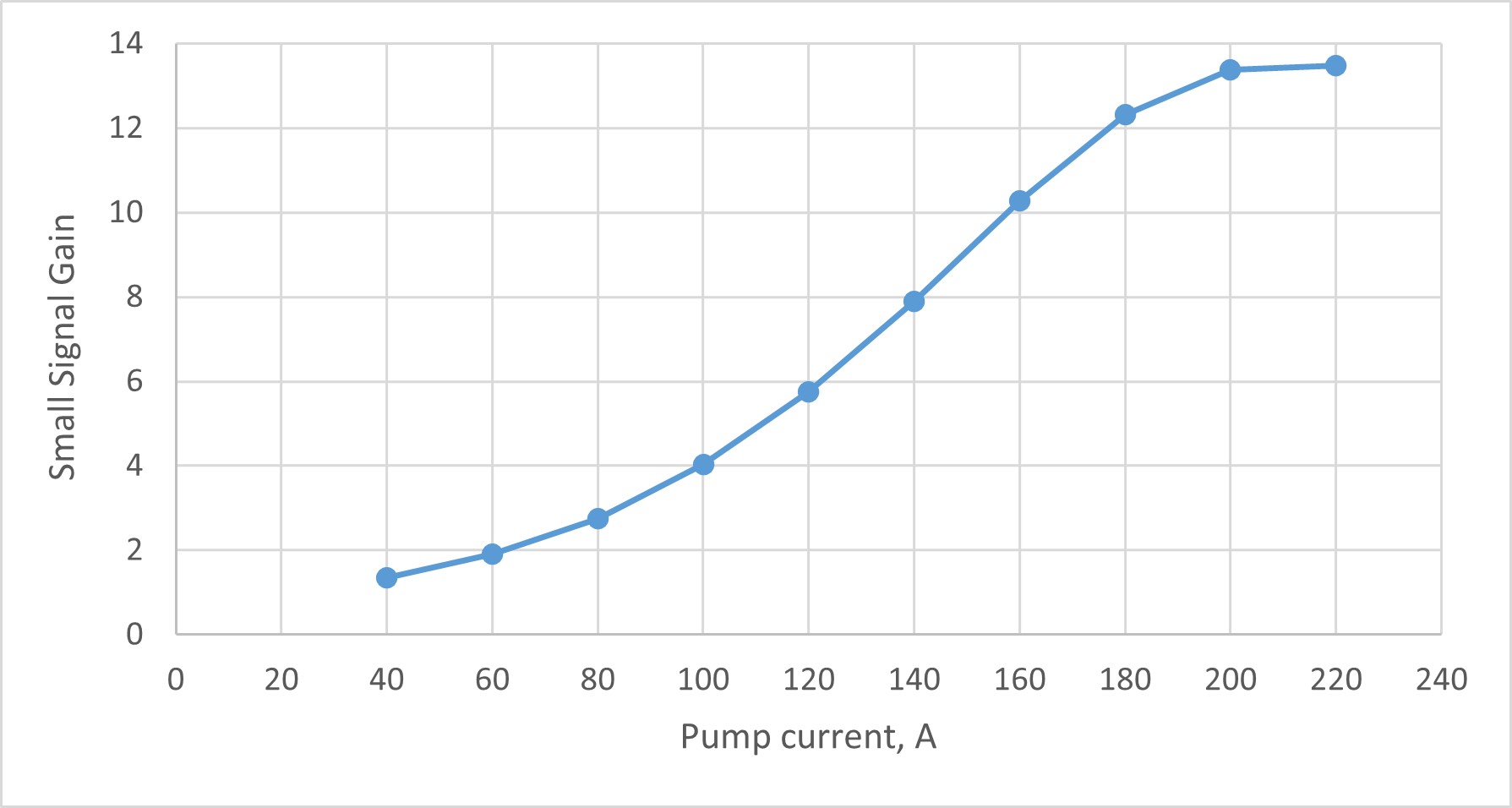

Small signal gain

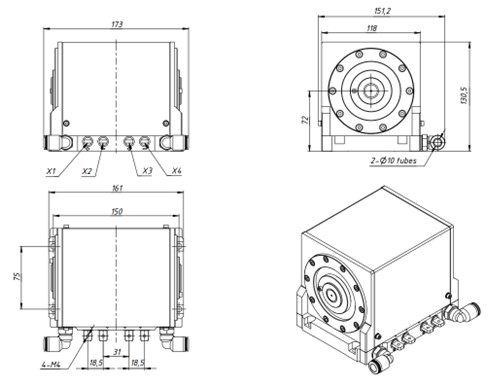

Dimensional drawing
