NDYAG-QCW25-108-8-HF

Designed for high frequency operation.

1064nm

WL

QCW

Mode

25kW

Peak pump

0.34-60ms

Pulse length

1.1-118J

Pulse energy

300Hz

Frequency

Request Price

Description

The module is designed to be used as a part of a generator in an intracavity application, as well as an amplifier for an extracavity application for high frequency operation.

Part number 2-00599-01

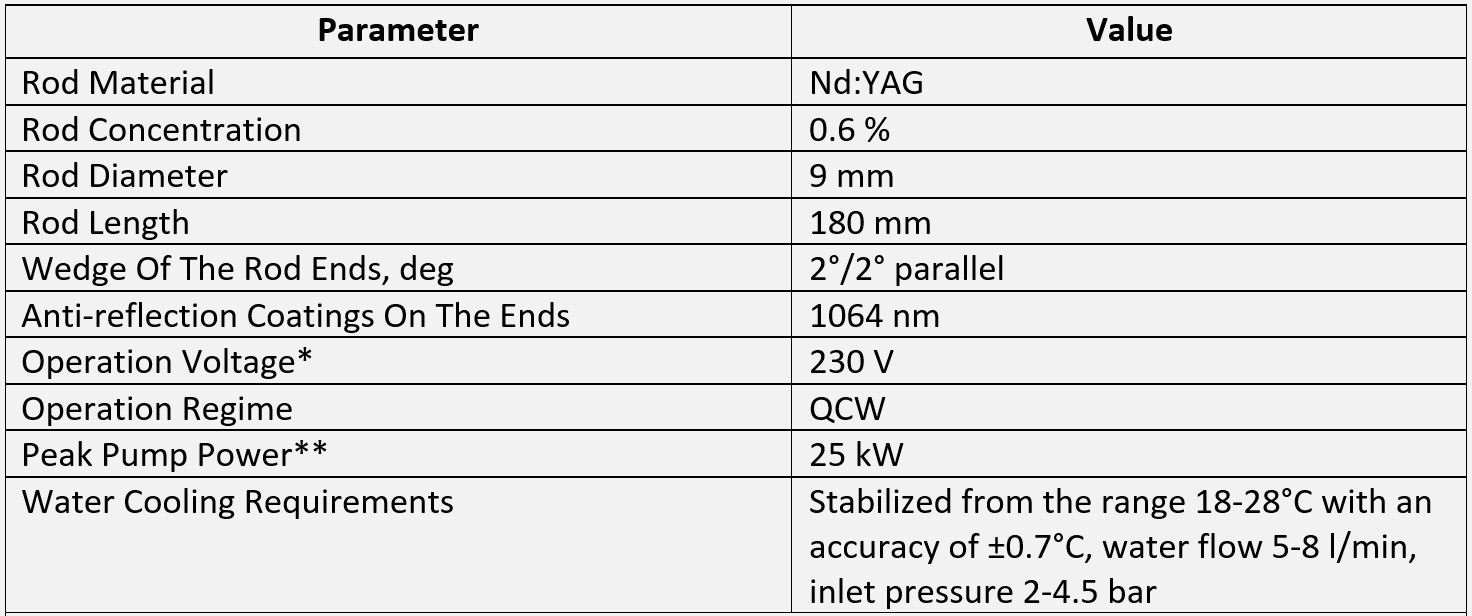

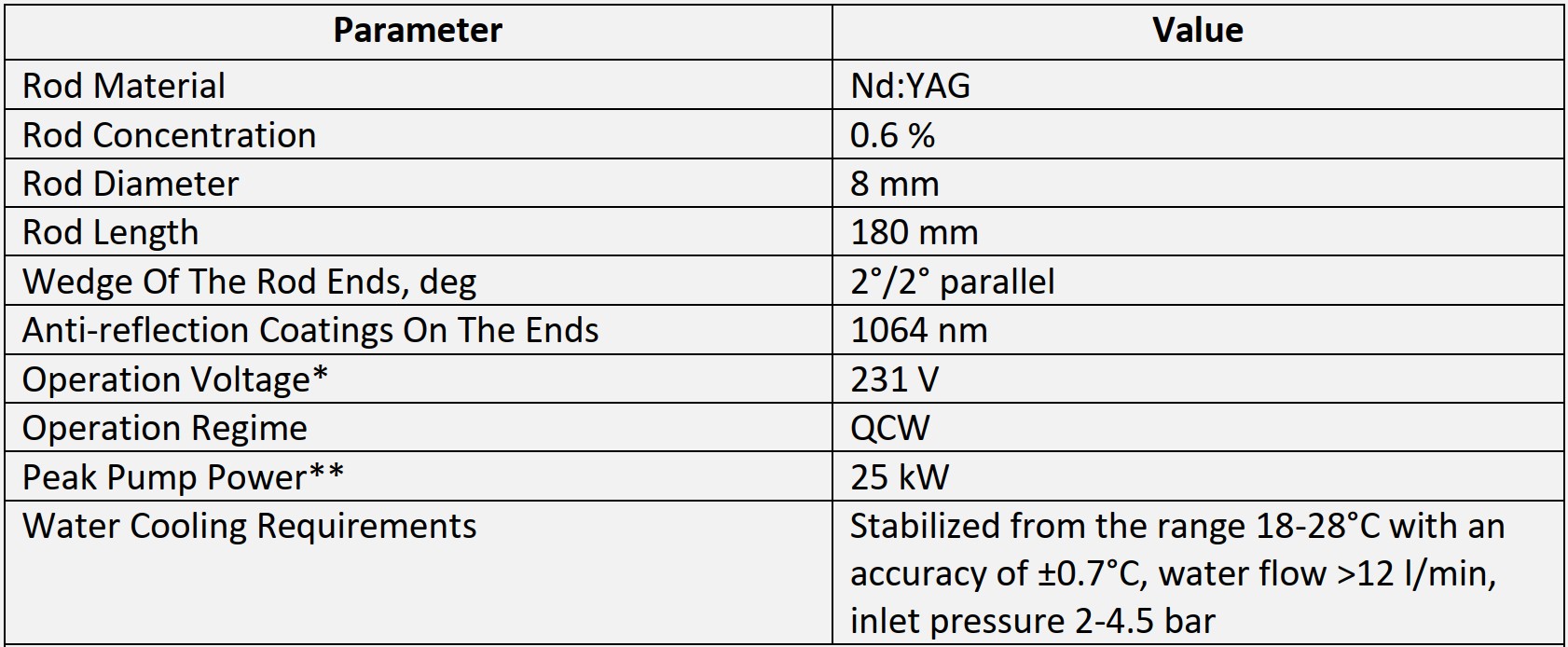

Specification

* Typical current-voltage relation is shown below.

** Calculated for standard operation mode: pulse duration 0.34 ms, repetition rate 20 Hz, current 210 A

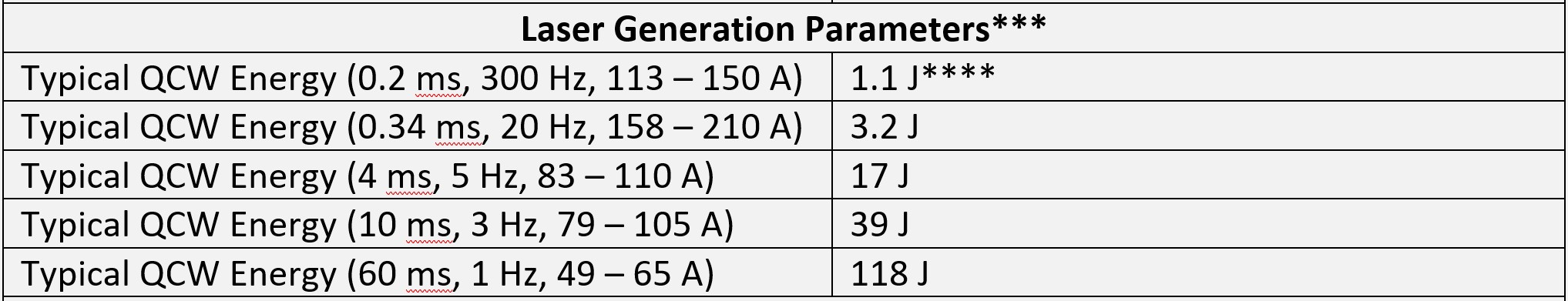

Product test parameters

*** From a gain switched, 260 mm long cavity with a flat 80% reflectivity output coupler and a flat high reflector.

**** Special requirements for high repetition rate mode apply. Refer to Datasheet.

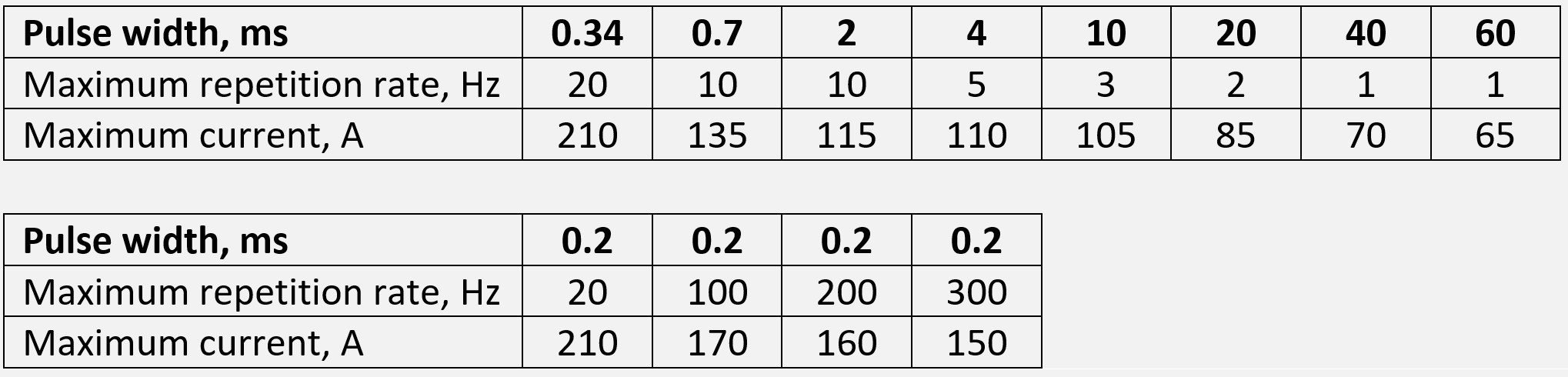

Operational reference

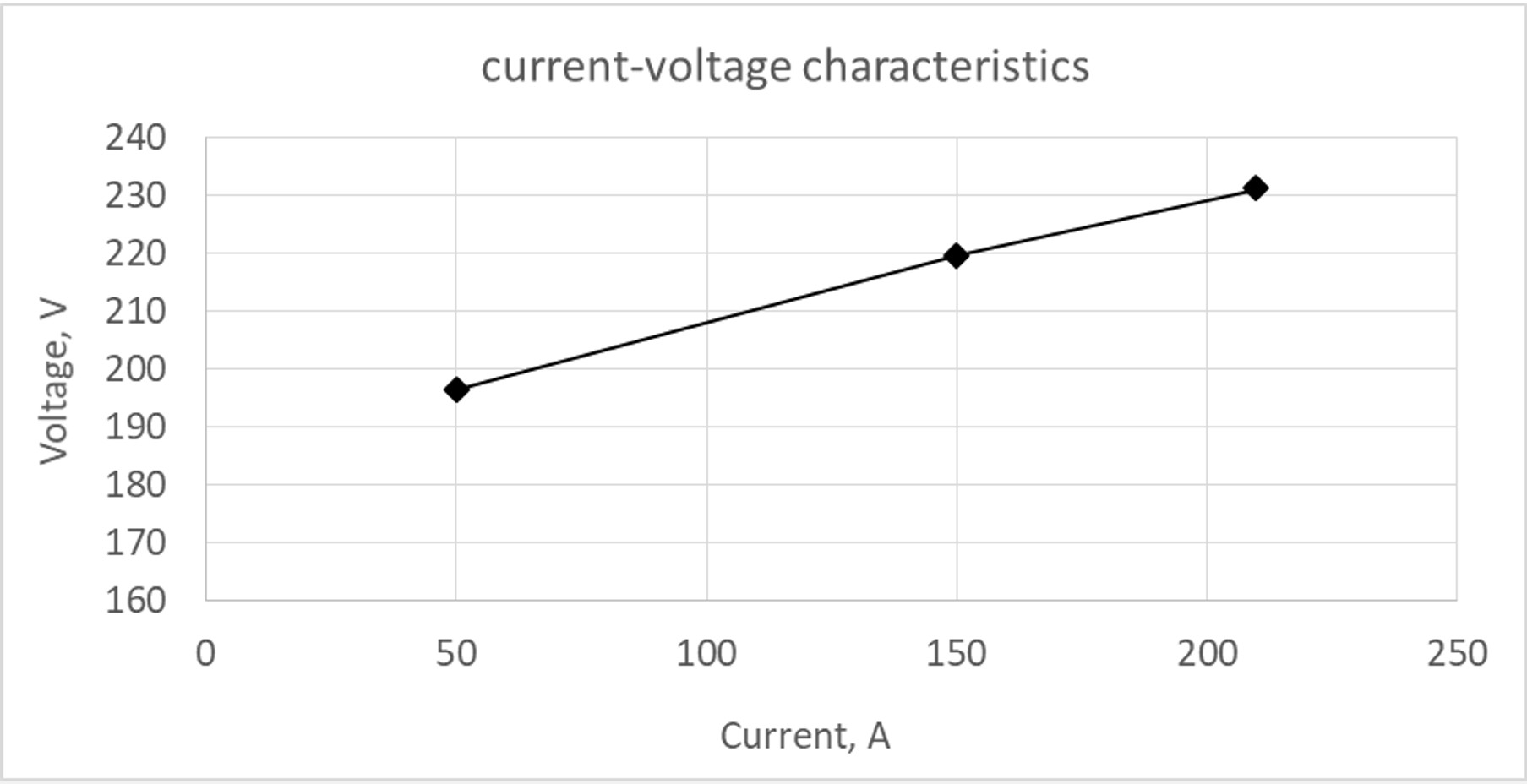

Typical current-voltage characteristics

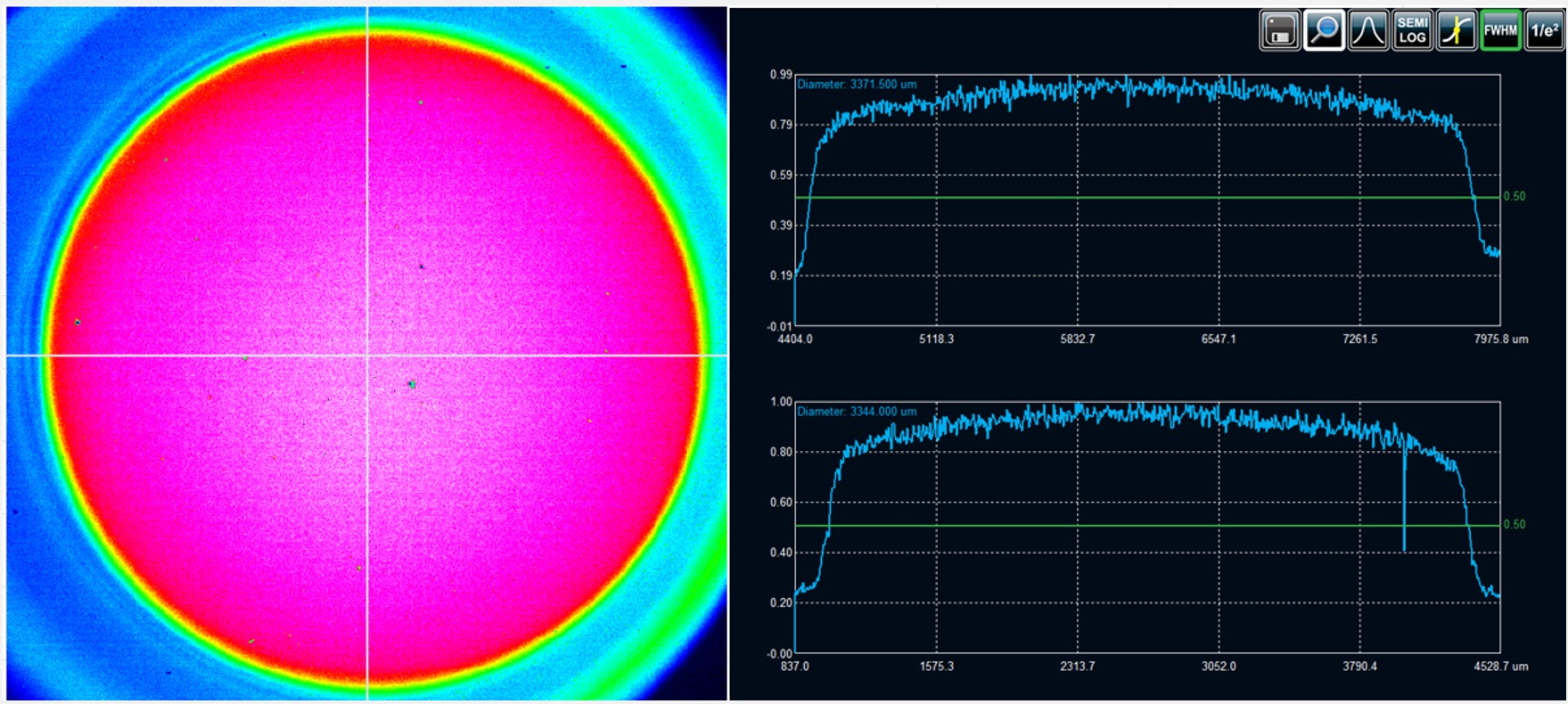

Typical fluorescence profile

Pump wavelength 806.4 nm, current 100 A, repetition rate 300 Hz, pulse duration 0.2 ms (for reference only)

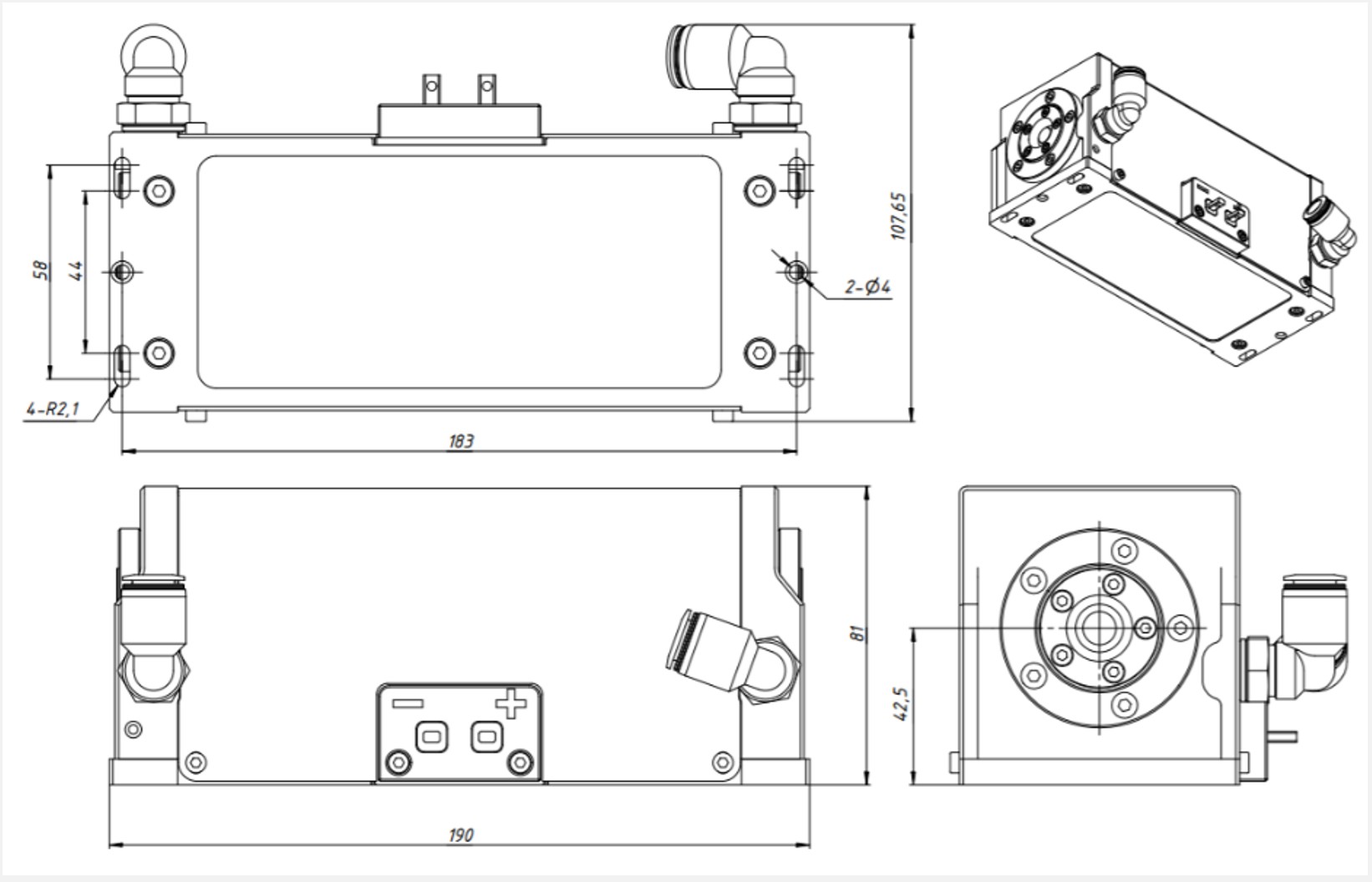

Dimensional drawing
