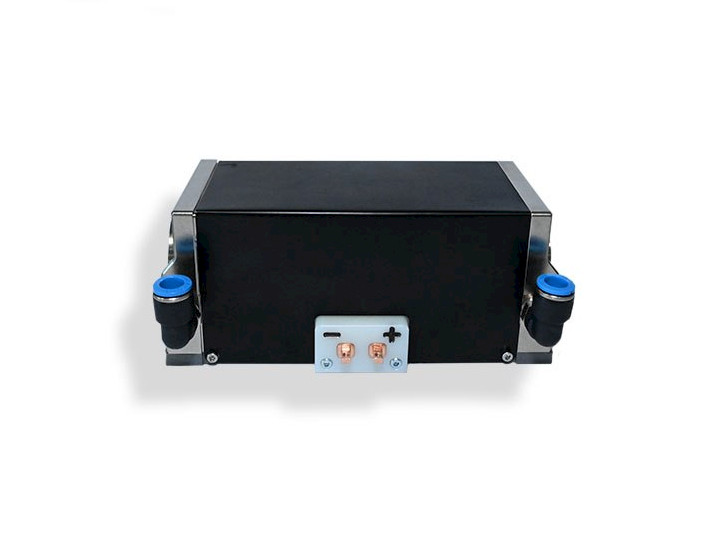

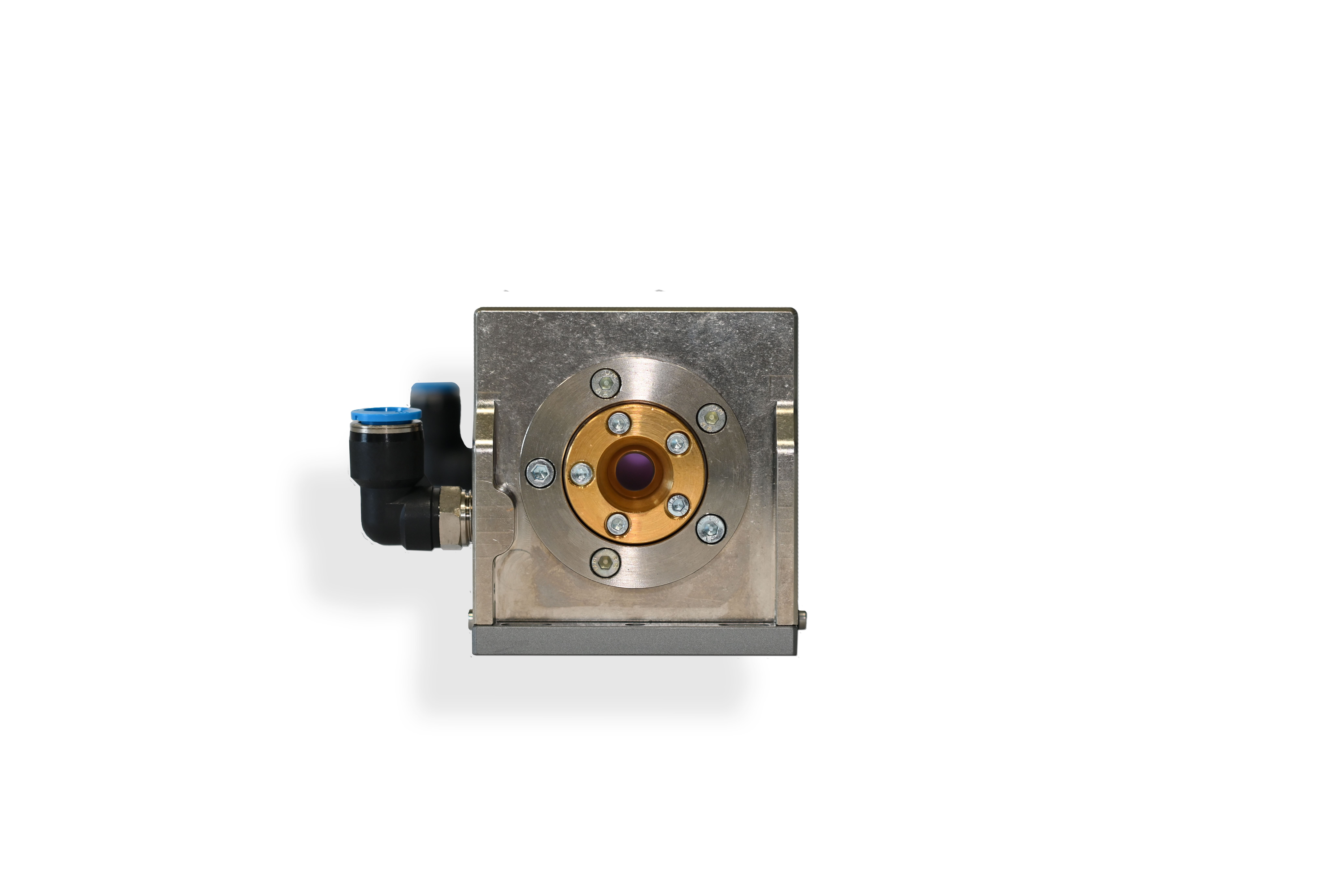

NDYAG-QCW28-121-12

Safe and rigid housing. EEL diode pumping. Optimized for long service life performance.

1064nm
WL
QCW
Mode
28kW
Peak pump
0.34-60ms
Pulse length
2.9-117J
Pulse energy
Request Price Request Price

Description

The module is designed to be used as a part of a generator in an intracavity application, as well as an amplifier for an extracavity application.

Specification

Model NDYAG-QCW28-121-12
Rod material Nd:YAG
Rod concentration 0.6%
Rod wedge Wedge 3°/3° parallel
Rod diameter 12mm
Rod length 165mm
Operation mode QCW
Peak pump power 28kW
Small Signal Gain >13



Pulse width 0.34ms 0.7ms 2ms 4ms 10ms 20ms 40ms 60ms
Pulse repetition rate 20Hz 10Hz 10Hz 5Hz 3Hz 2Hz 1Hz 1Hz
Current

210A

135A

115A

110A

105A

85A

70A

65A

Typical QCW energy

(from a gain switched, 260mm long cavity with a flat 60% reflectivity output coupler and a flat high reflector)

2.9J

3.7J

9.2J

16.7J

41J

62J

100J

117J

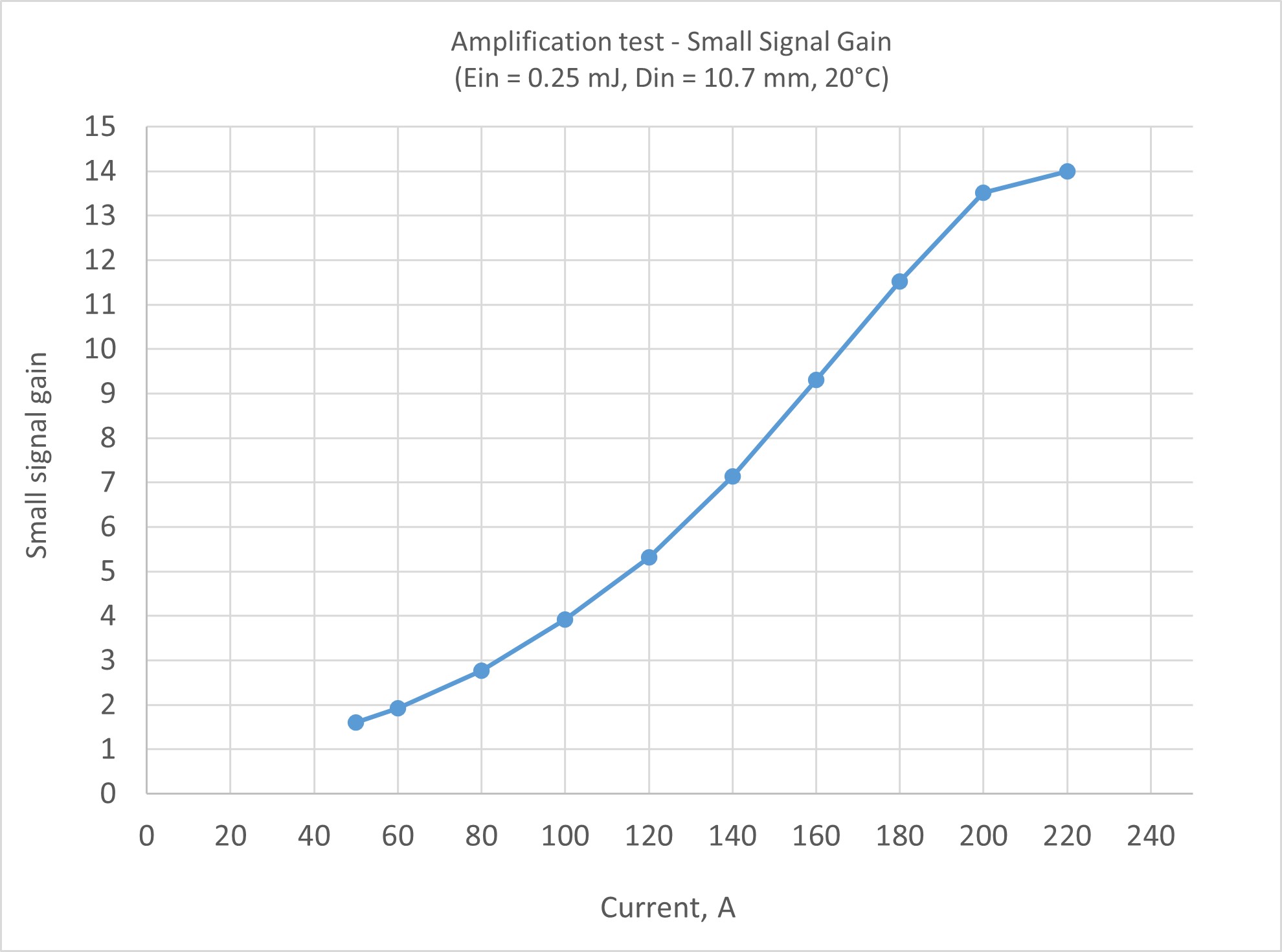

Small signal gain

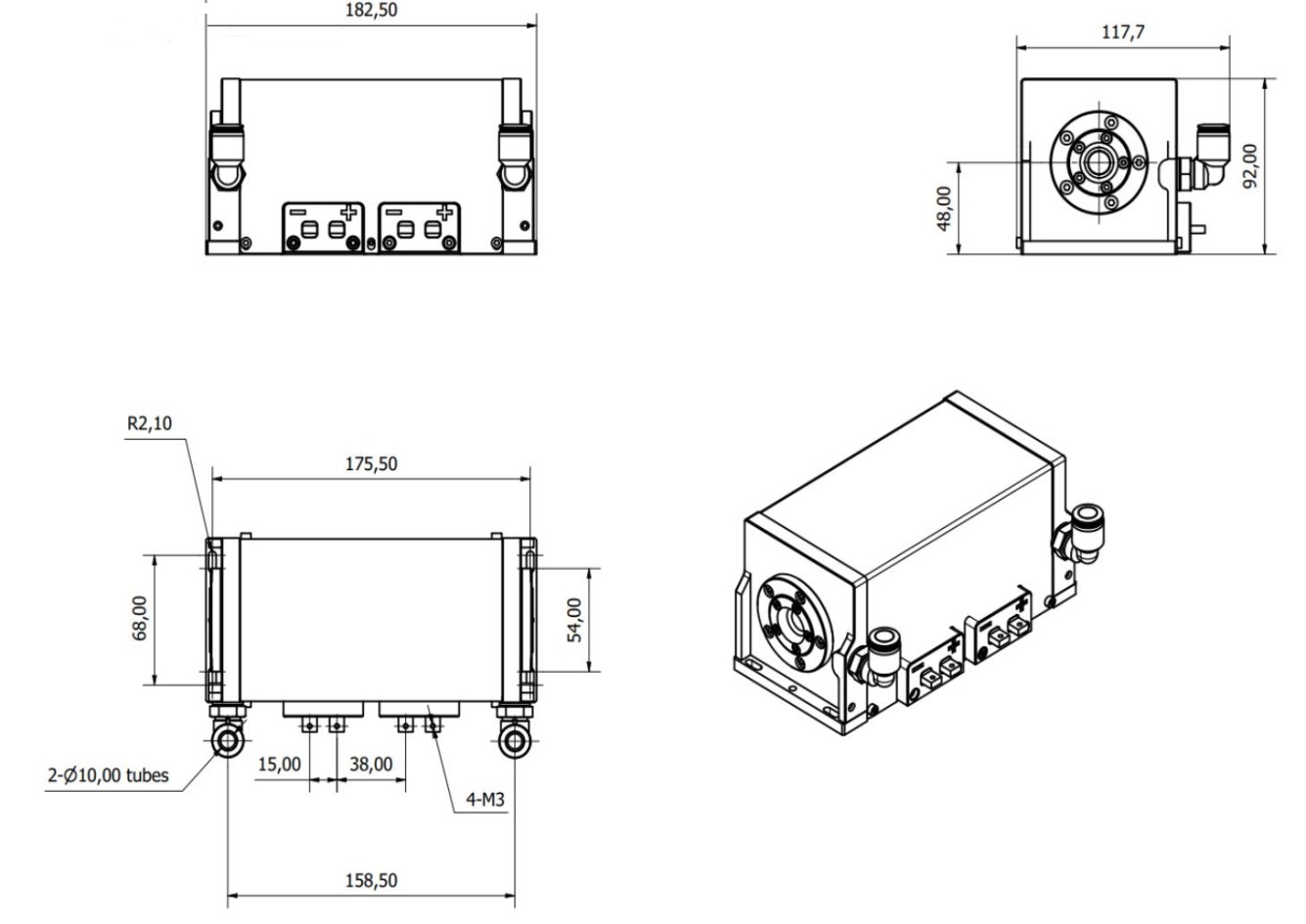

Dimensional drawing
