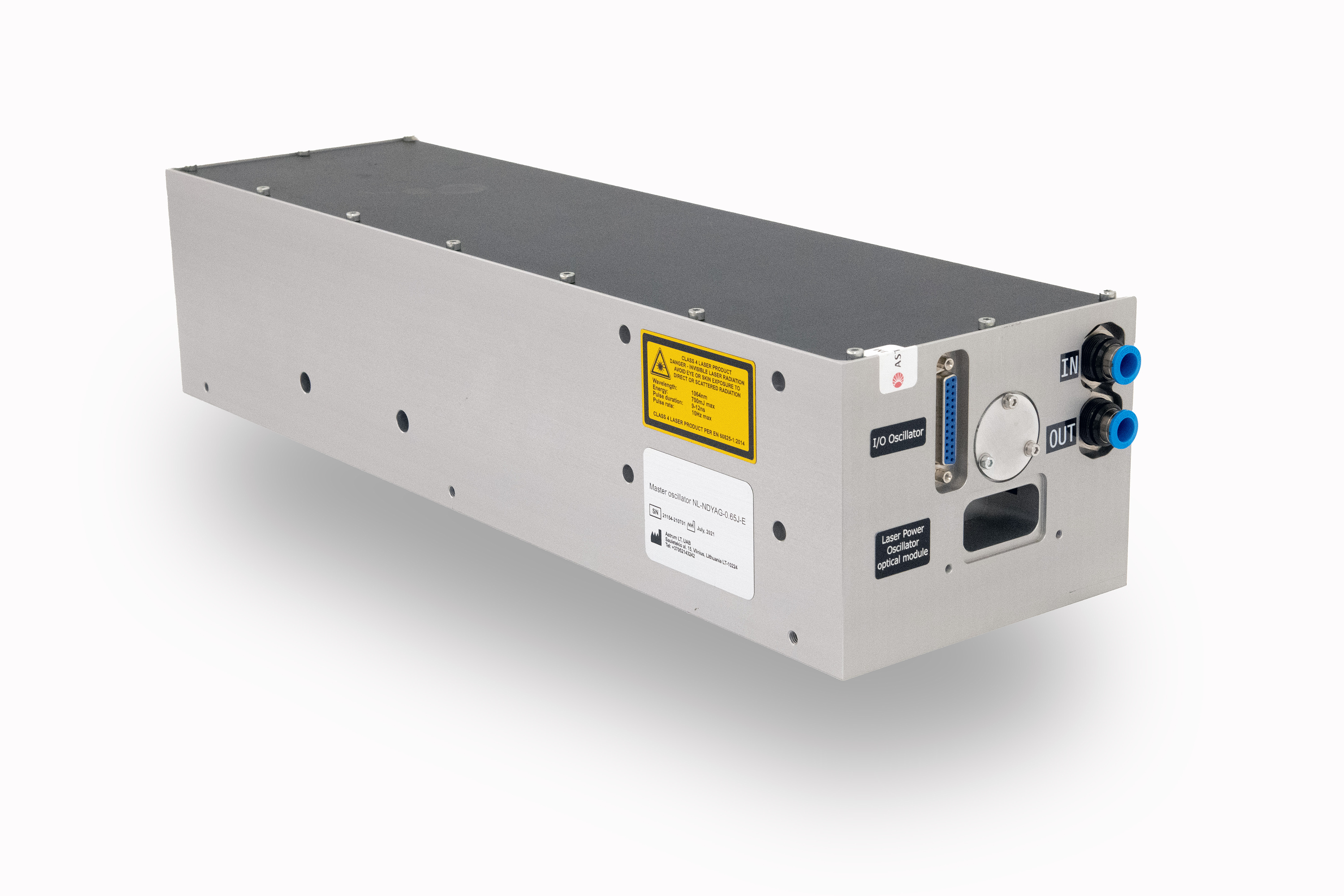

NL-NDYAG-0.65J-E

The master oscillator NL-NDYAG-0.65J-E is designed for MOPA integration. It is a low PTP jitter laser module complete with an electronic control module offering a tight and precise control of the source and up to 4 amplifier channels.

Request Price Request Price

Description

The master oscillator NL-NDYAG-0.65J-E is designed for MOPA integration. It is a low PTP jitter laser module offering tight and precise control of the source complete with an electronic control module with 4 amplifier channels.

The electronic module controls the master oscillator and and up to 4 amplifiers.

Specification

Beam diameter

6.7 ± 0.7 mm

Pulse energy

650 mJ

Beam divergence

≤ 10 mrad

Repetition rate

1-10 Hz, single shot

Wavelength

1064 nm

Pulse duration

9.5 ± 1 ns

Beam quality

Super Gaussian (Multimode)

Energy stability RMS

< 2 % within 60 min

Modulation

Active Q-Switch

Max jitter PTP

< ± 1.3 ns

Cooling

Water cooling, 3-5 L/min

Ambient temperature

17 – 33 °C

Relative humidity (non-condensing)

20 – 70 %

Water temperature maintenance accuracy

± 0.5 °C

Laser head dimensions

680 x 167 x 131 mm

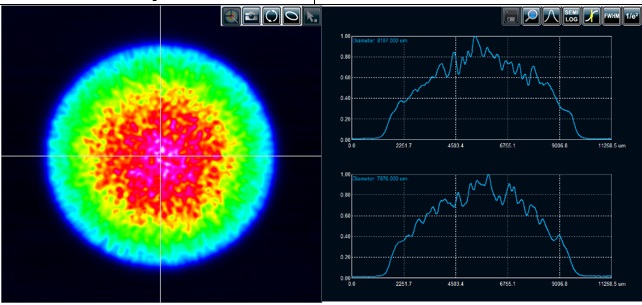

Beam profile @ 1hz 500mJ

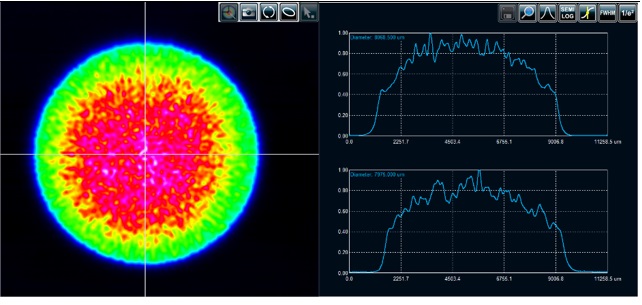

Beam profile @ 5hz 650mJ

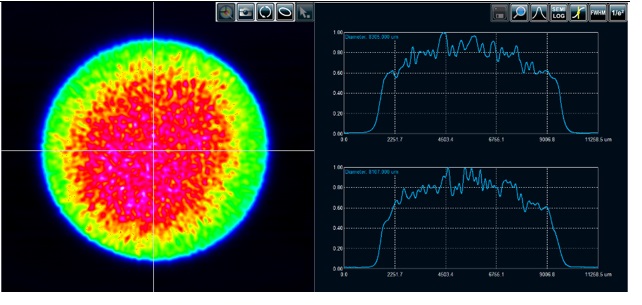

Beam profile @ 10Hz 650mJ

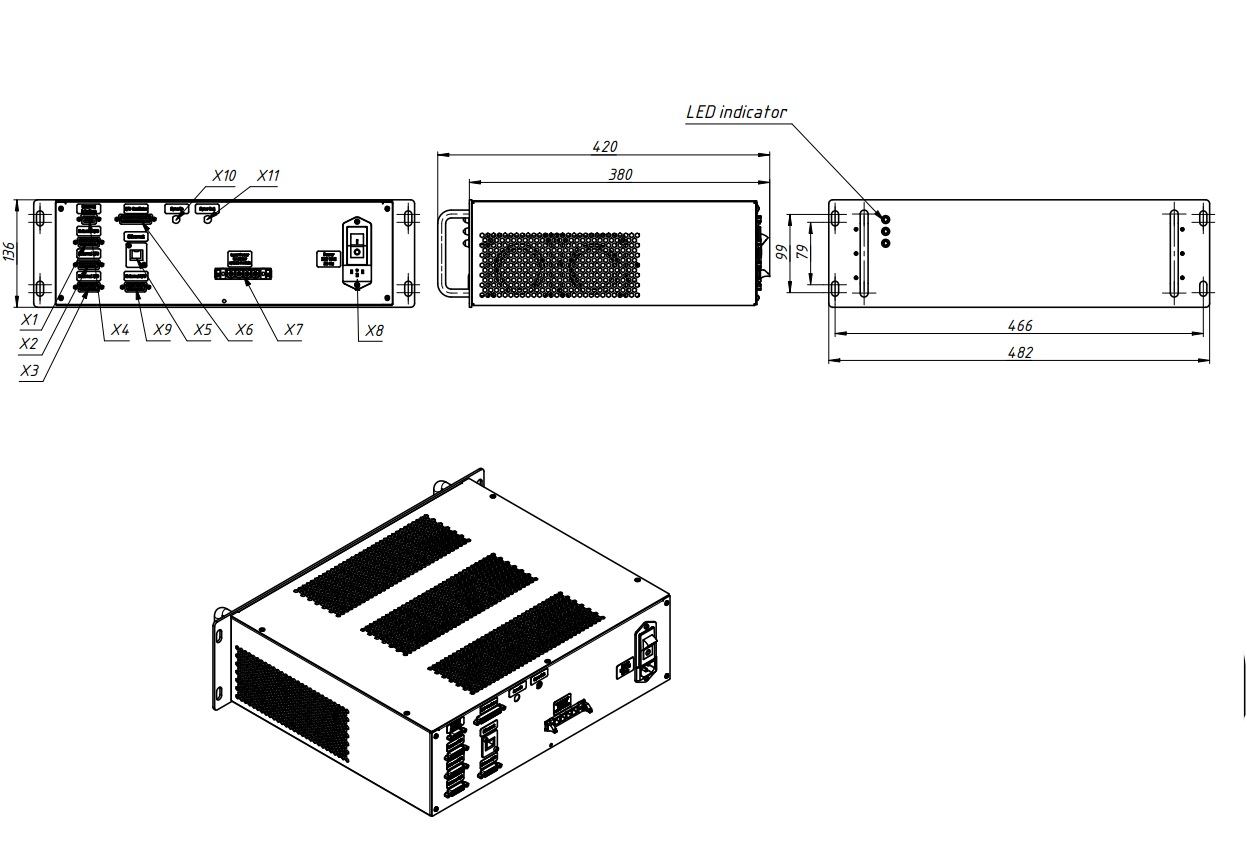

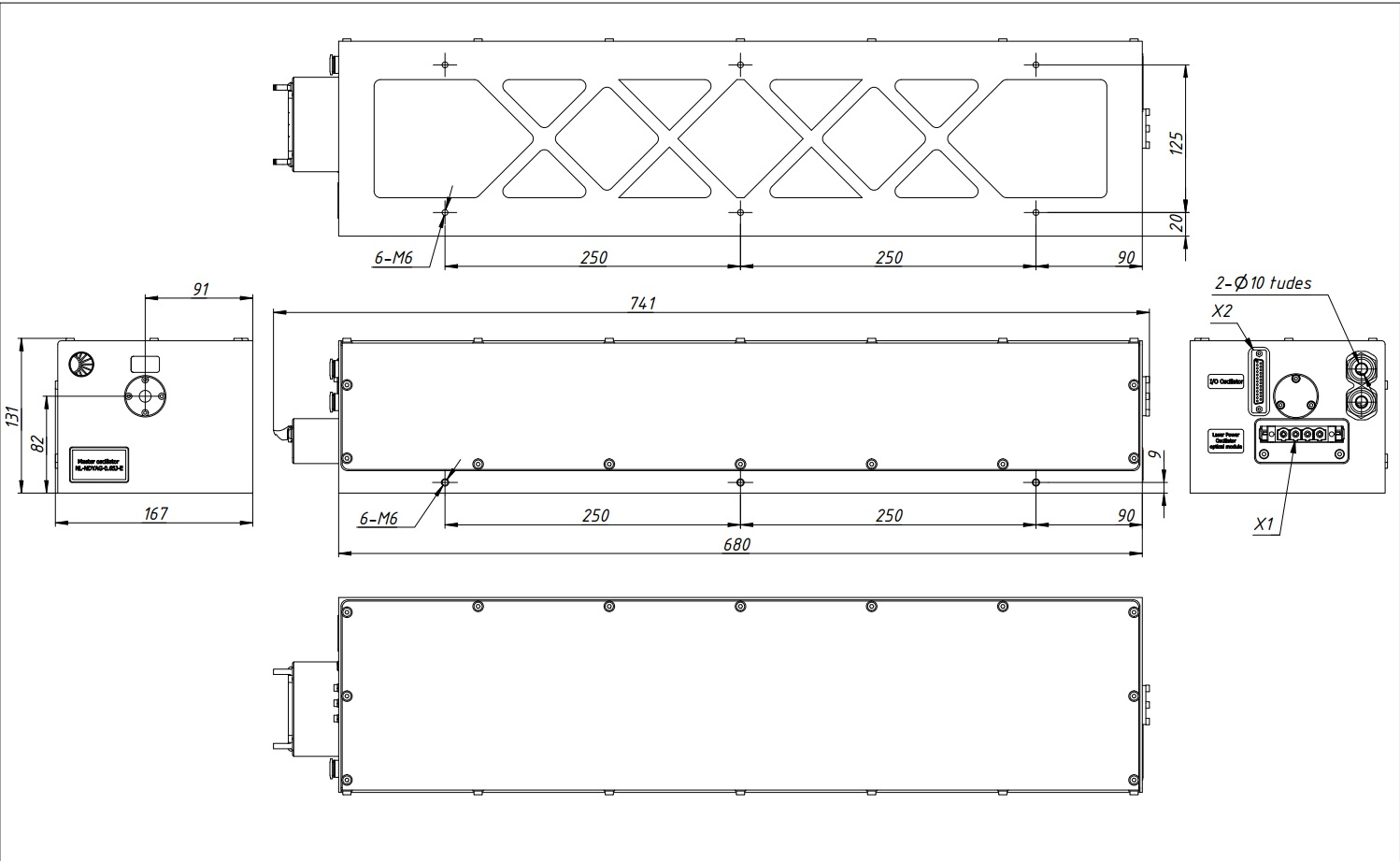

Dimensional drawing

Dimensional drawing
