LDD-200A-40V

The laser diode driver (LDD) is designed to feed laser diodes with desired stable current and control the light emission output in CW/pulsed mode through proportional variation of the output current and voltage at the IPROG control input.

100A/200A
CW/pulsed
48V
Voltage
<100ms
Rise/Fall
Request Price Request Price

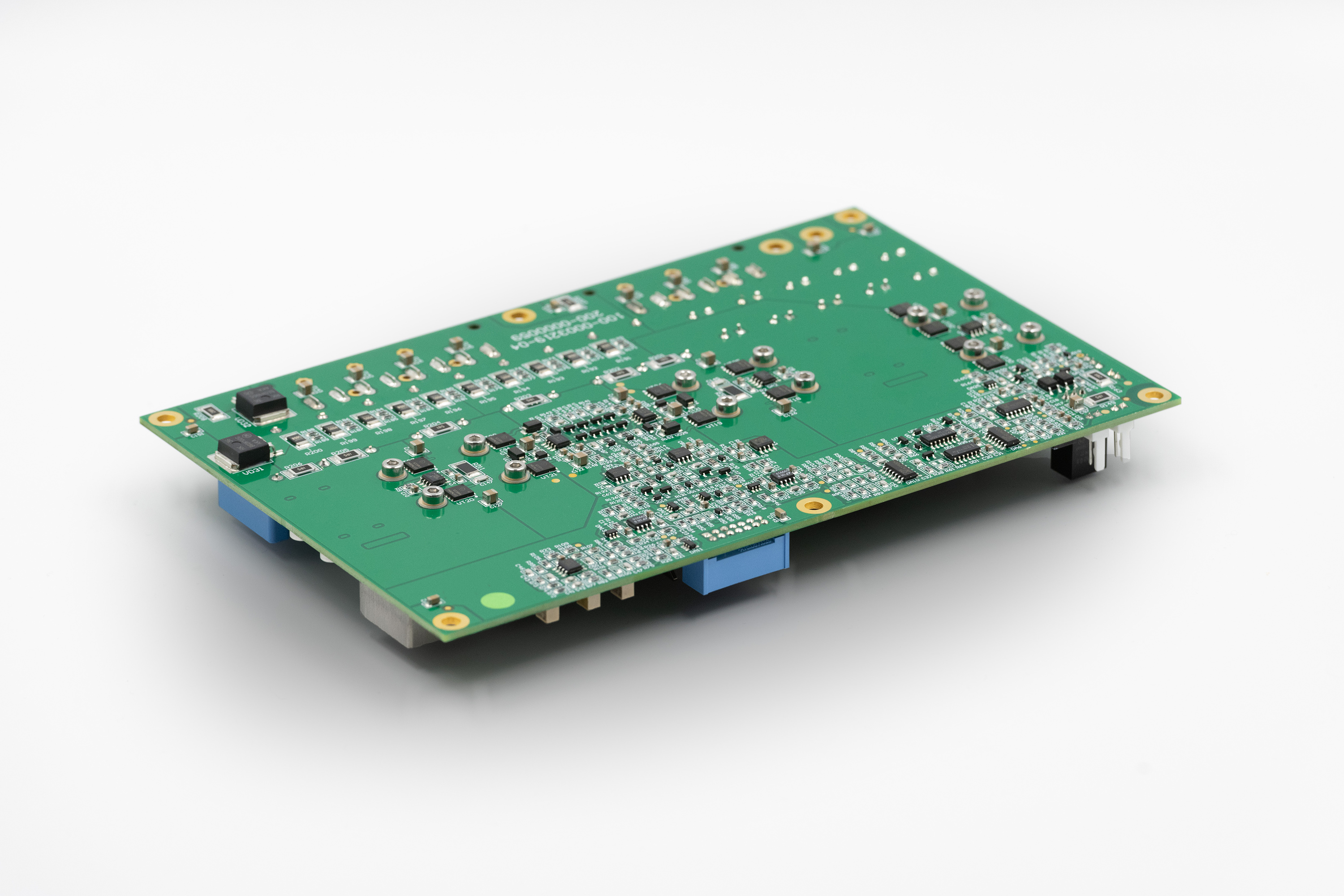

Description

CW/pulsed laser diode driver LDD-200A-40V, open board type for OEM integration.
Requires dedicated AC/DC power supply.

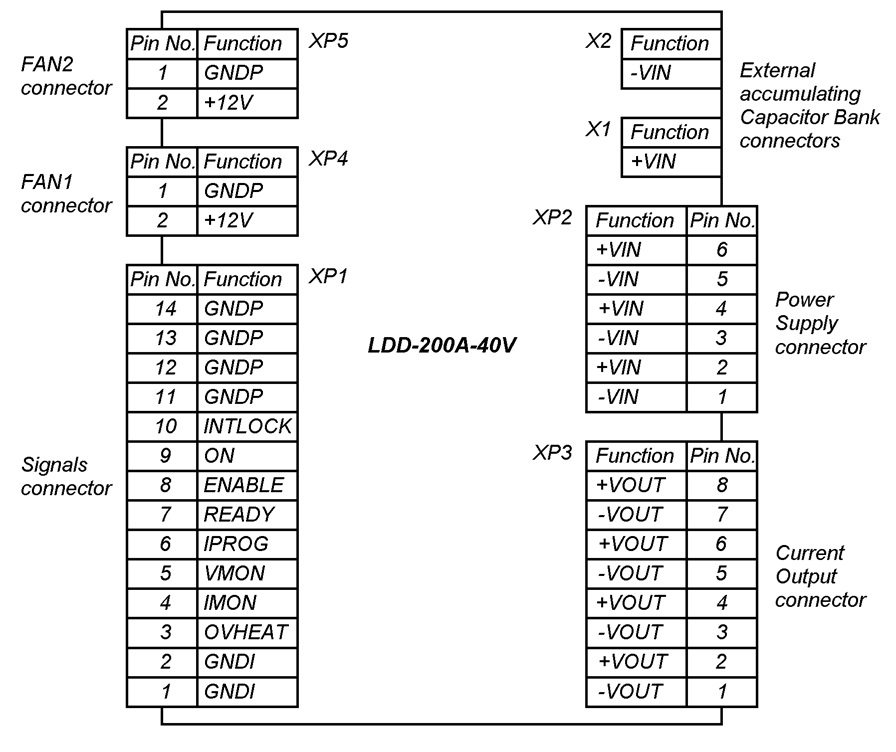

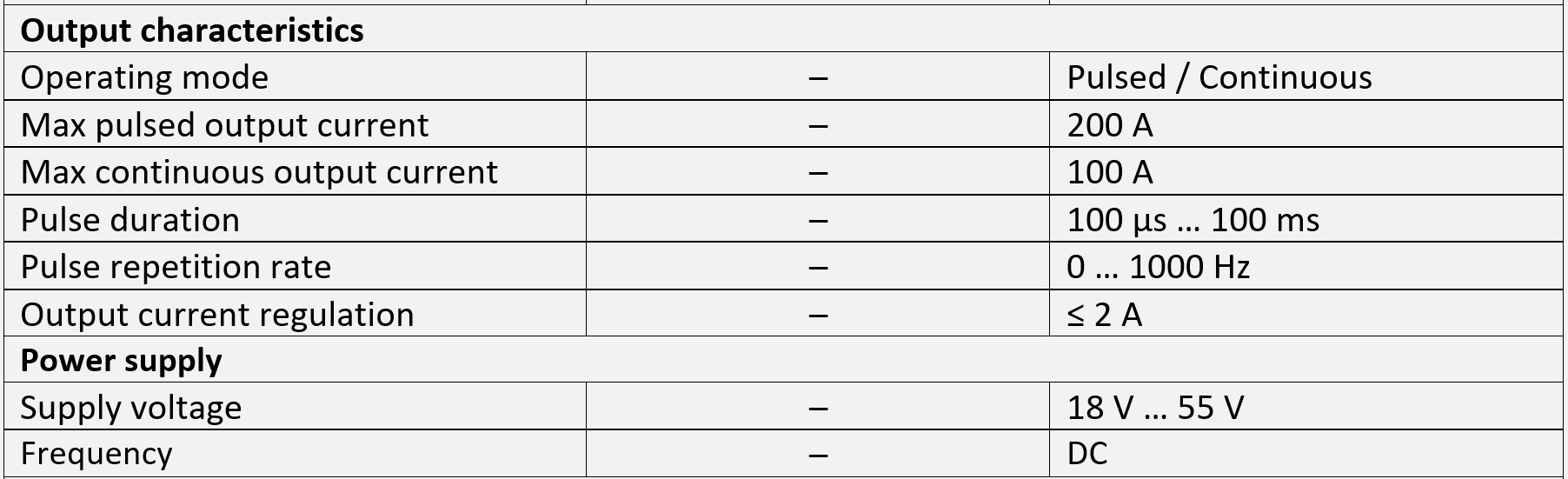

Specification

  • Operation mode – Pulsed / Continuous
  • Pulsed mode:

  • maximum output current (IOUT) – 200А
  • pulse duration (TP) – 100µs to 100ms
  • pulse repetition rate (FP) – 0 to 1000Hz
  • current pulse rise/fall at output
    voltage VOUT=(0.3…0.7)·VIN – <100µs
  • Continuous Mode:

  • maximum continuous output current (Iout) – 100A
  • Maximum output voltage (VOUT) – ≥0.85·VIN, V
  • Supply voltage (VIN) – 18V to 55V
  • Output current regulation – ≤2A
  • Responsivity to the IPROG control signal – 20A/V
  • The IMON output current control signal monitor – 50mV/A
  • The VMON output voltage control signal monitor – 200mV/V
  • Power loss at continuous output current 100A – ≤100W
  • Operating ambient temperature – +100C to +450C
  • Dimensions – 140*220*27.4mm
  • Cooling - active air

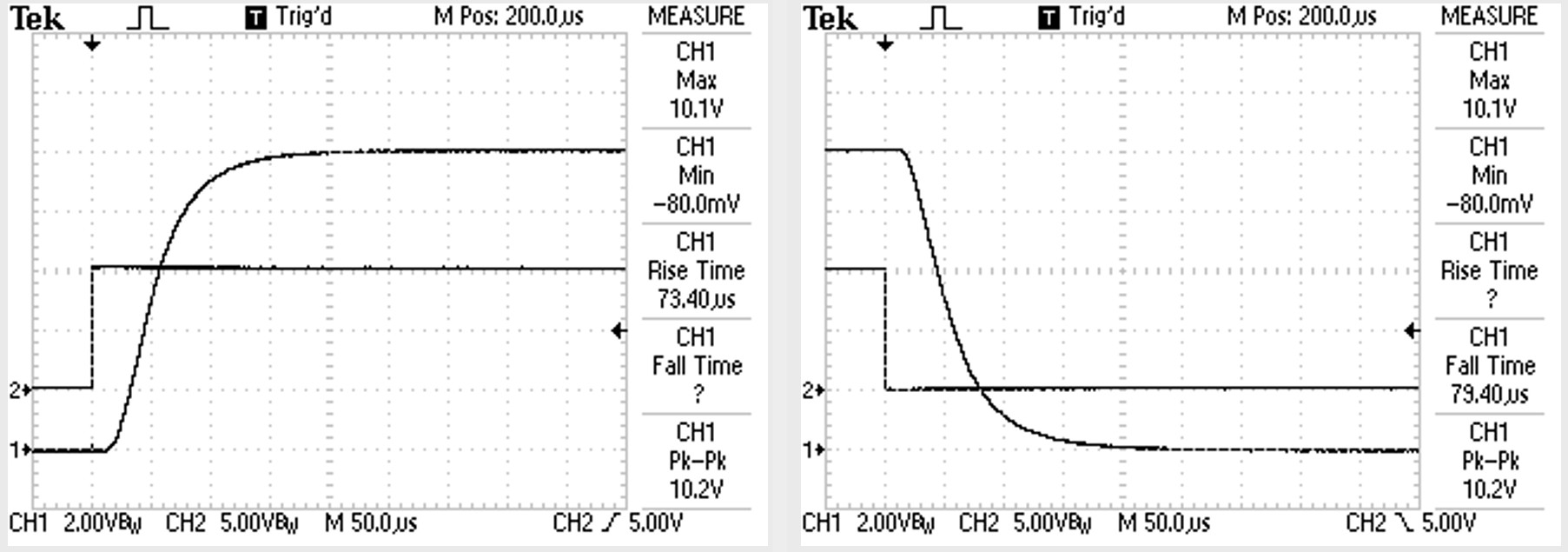

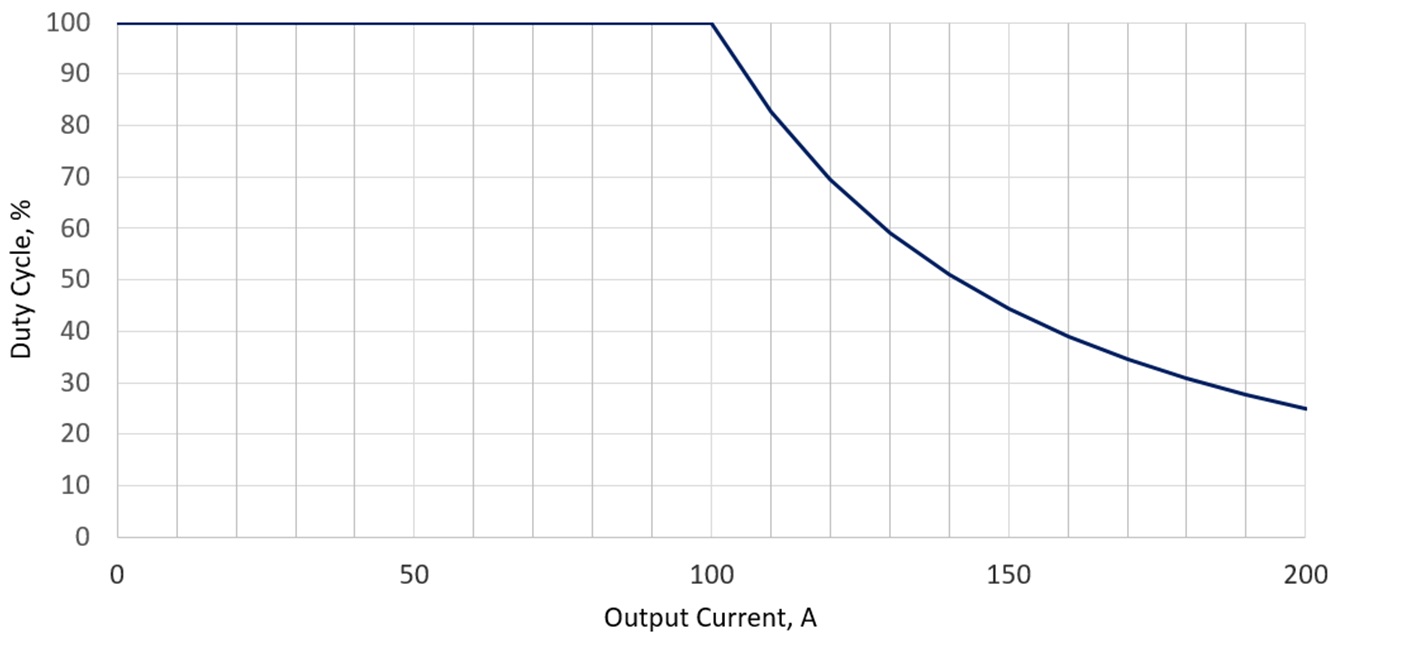

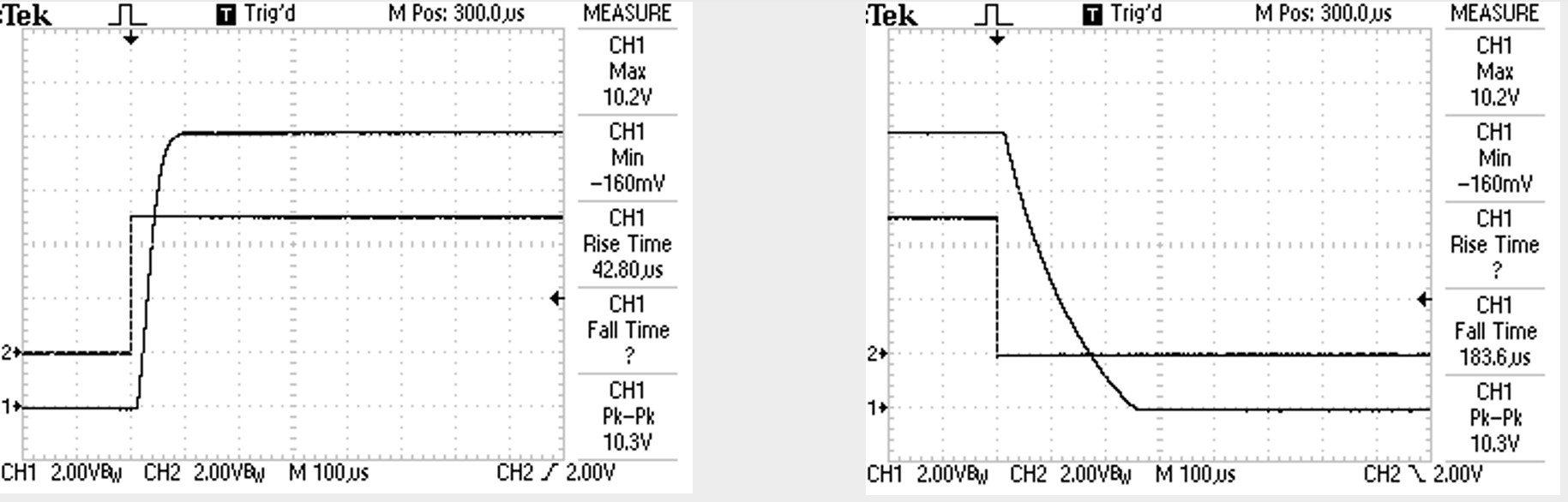

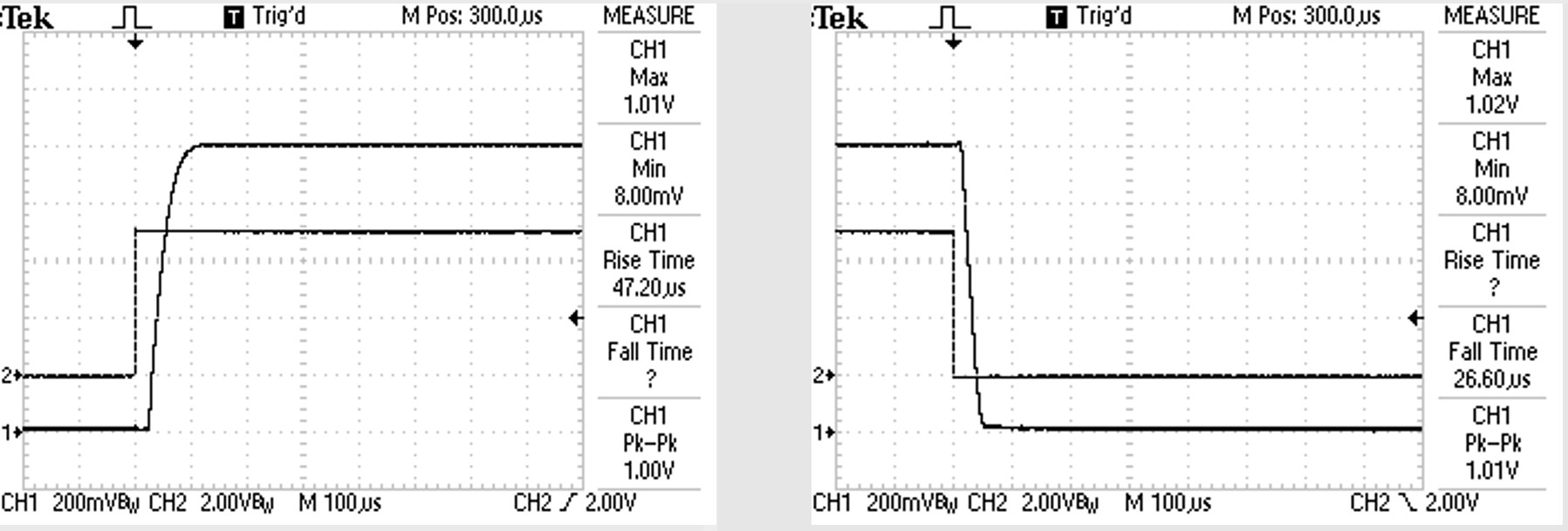

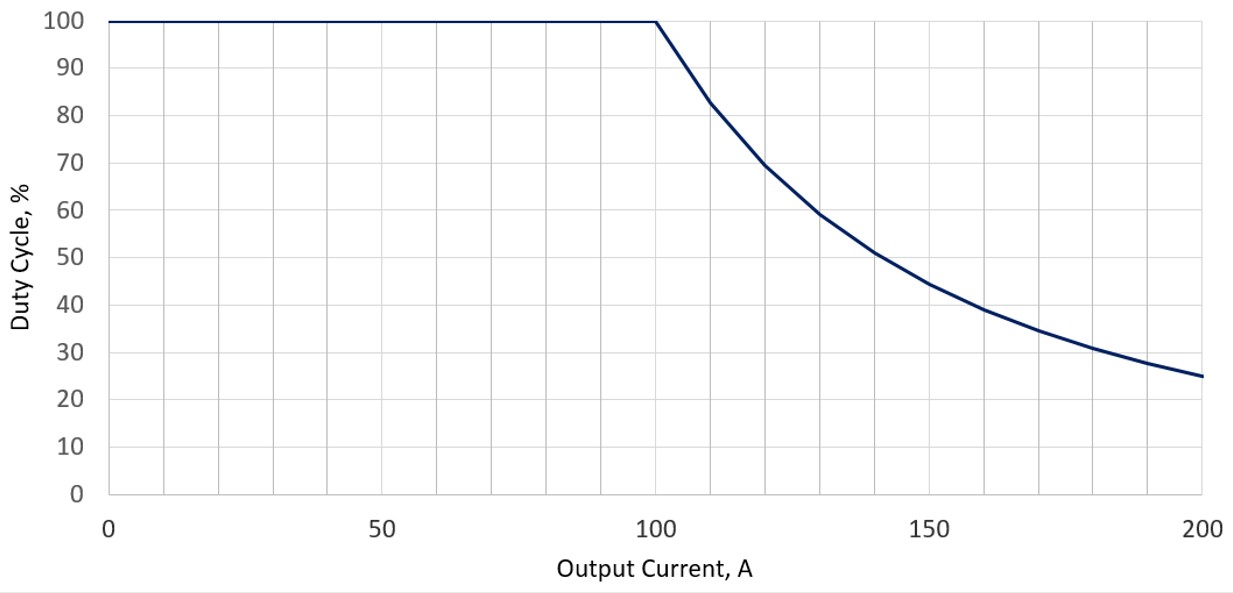

Max duty cycle D=TP·FP vs output current IOUT

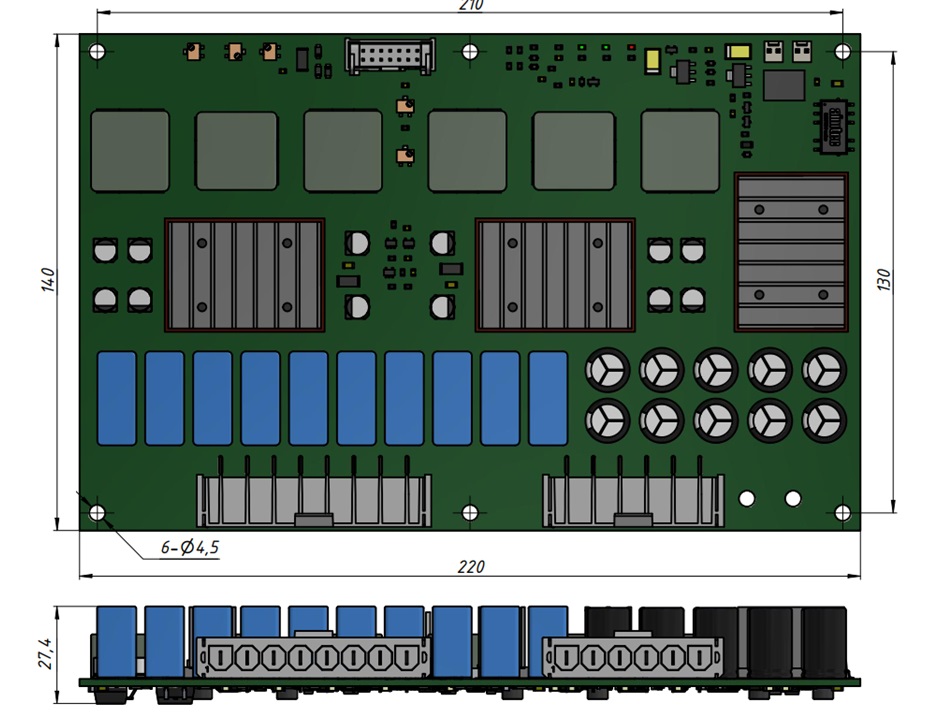

Overall dimensions
