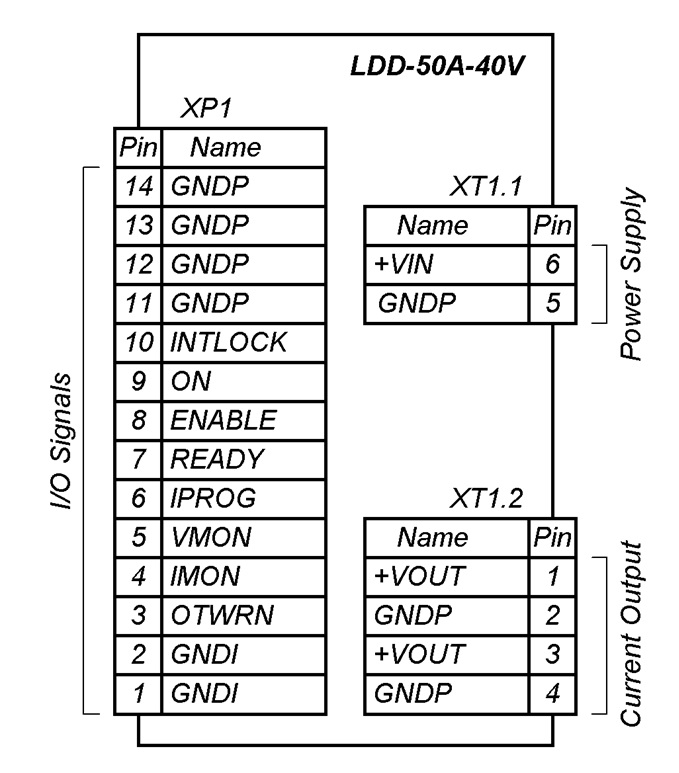

LDD-50A-40V

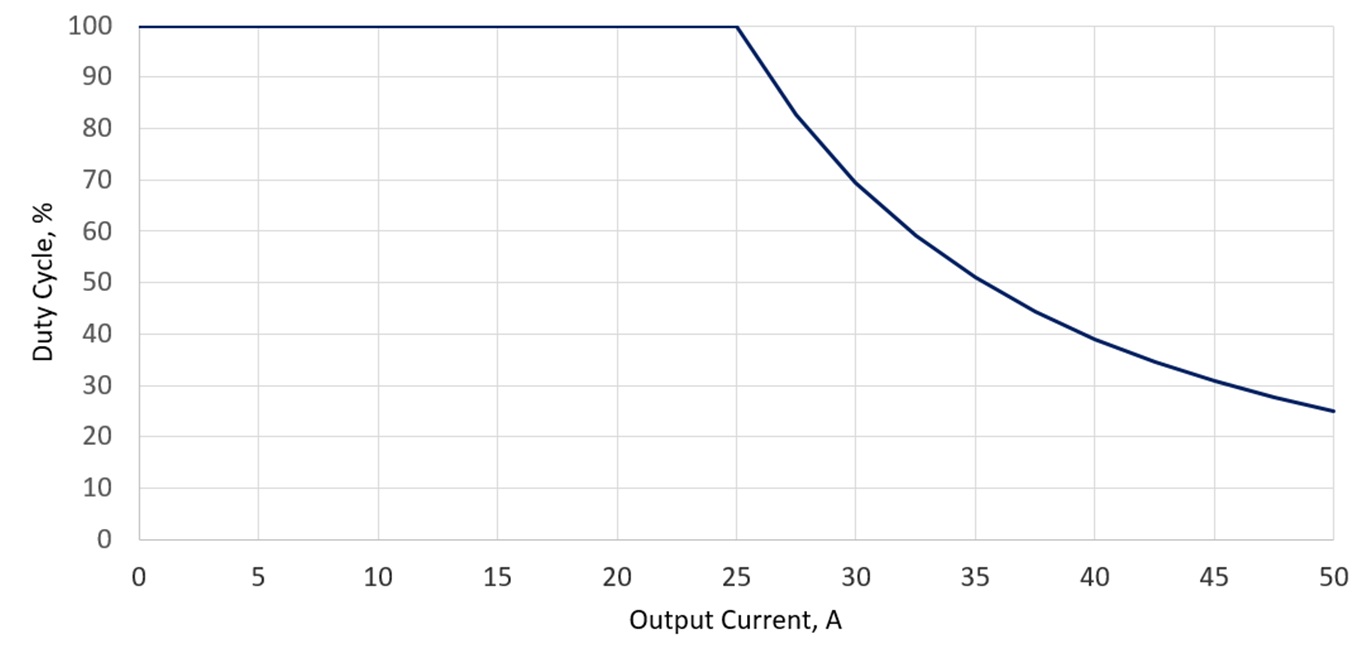

• Operation mode – Pulsed / Continuous

Pulsed mode:

• maximum pulsed output current (I OUT) - 50A
• pulse duration (TP) – 150µs - 100ms
• pulse repetition rate (FP) – 0 - 1000Hz
• the rise and fall time of the output current pulse at the output
  voltage V OUT = (0.3...0.7) · V IN - less than 150µs

Continuous Mode:

• Maximum continuous output current - 25A

• Maximum output voltage (VOUT) – ≥0.85 * VIN, V

• Supply voltage  (VIN) – 15V - 55V
• Output current deviation from the set value - ≤0.5A
• Responsitivity to the IPROG control signal - 5A/V
• The IMON output current control signal monitor - 200mV/A
• The VMON output voltage control signal monitor - 200mV/V
• Power loss at continous output current 25A - ≤ 25W
• Operating ambient temperature – +10 0C - +55 0C

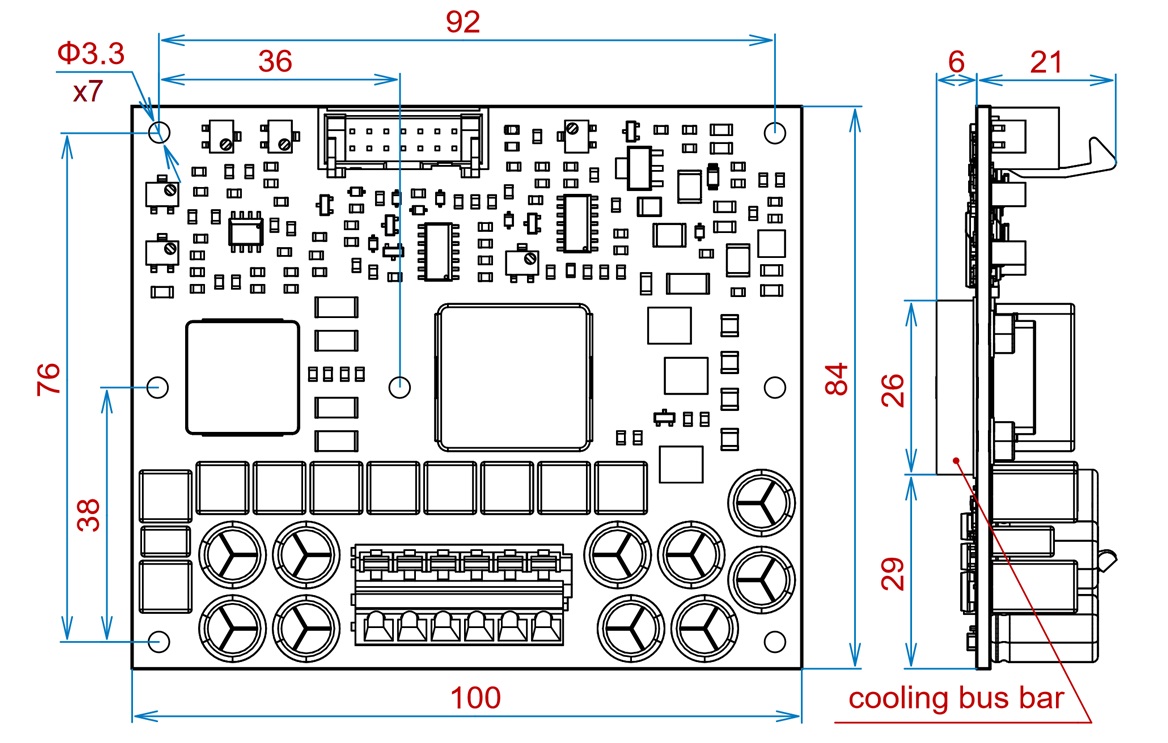

• Overall dimensions – 84 * 100 * 27mm
• Cooling – external
