NMCL-NDYVO4/LBO-10W-A-532

A solid state quasi-continuous laser system with diode pumping and second harmonic generation (LBO).

Industrial film marking

Request Price Request Price

Description

  • solid aluminum case
  • active rod - LBO
  • quasicontinuous laser emission
  • air cooling system
  • multimode beam profile

Specification

Model NMCL-NDYVO4KTP-0-10W-A
Pumping Type Diode
Pump Power 100 W
Modulation type  Acousto-optic modulation
Average power (max) 10 W
Repetition rate 10-100 kHz
Pulse duration 30-150 ns
Polarization Linear
Beam divergence < 5 mrad
Typical beam diameter 1-2 mm
Special mode near Gaussian
Mode multimode
Cooling requirements
Water temperature 15-35° C
Inlet pressure 1-4 bar
Water flow 3-10 l/min

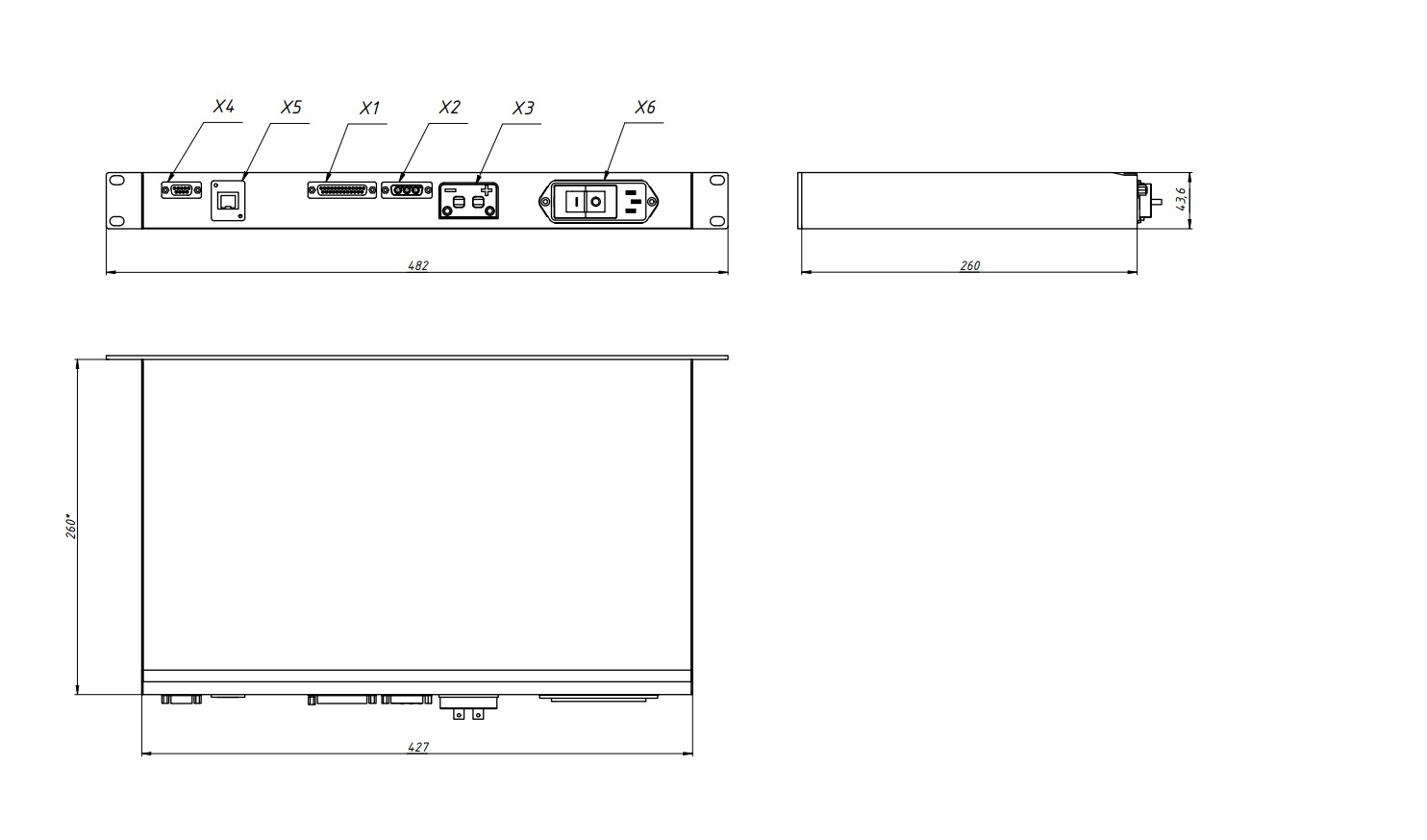

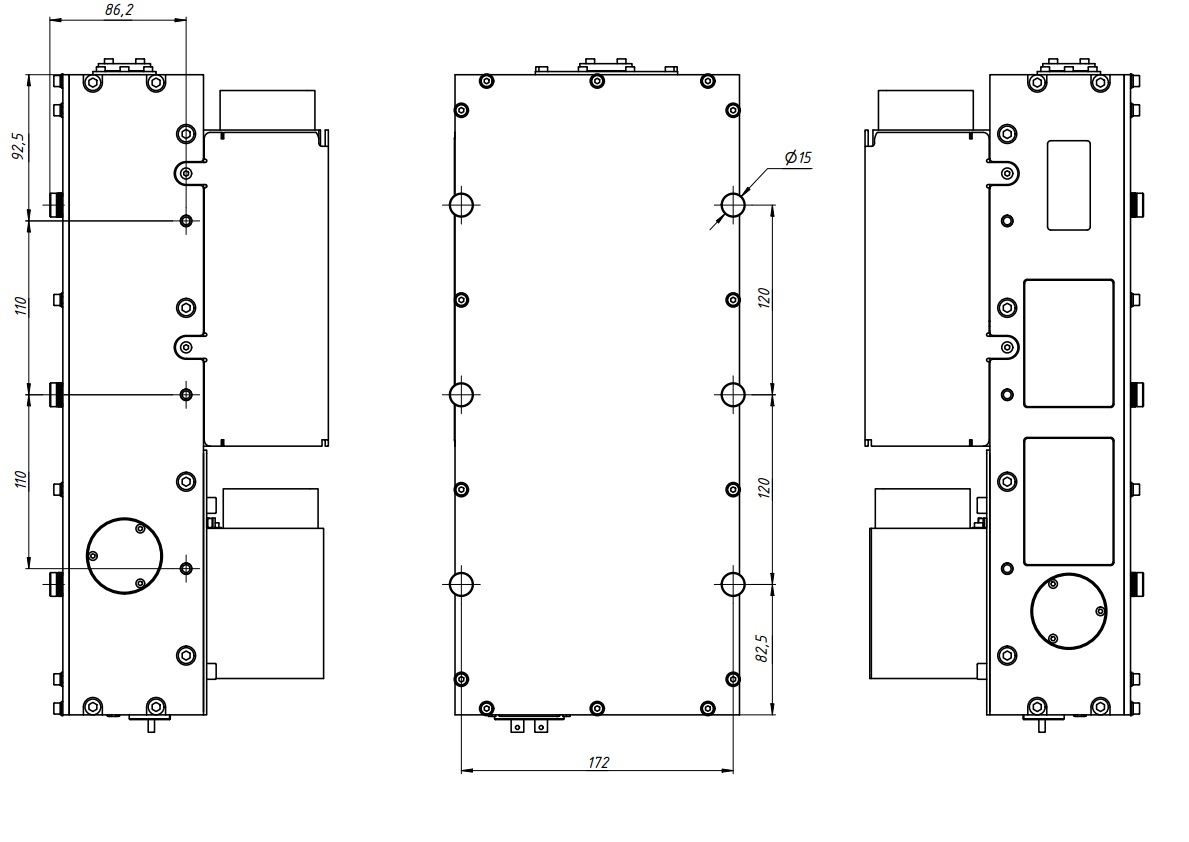

Overall dimensions
