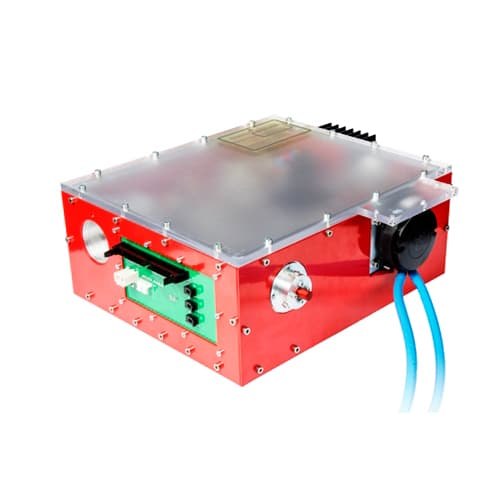

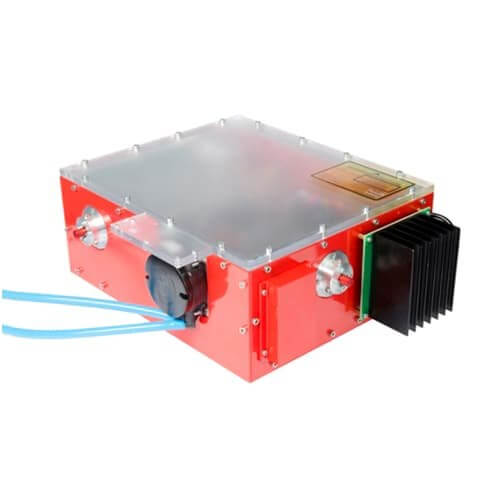

NMCL-NDYAG/KTP-MW-A-V1

A solid state quasi-continuous laser system with 808nm diode pumping of Nd:YAG rod (1064nm) and second harmonic generation based on KTP rod (532nm) and Q-switched modes at both 1064 and 532nm wavelengths. 808nm laser is used for pumping and directly as well.

Cosmetology / Aesthetic Medicine

Request Price Request Price

Description

  • solid aluminum case
  • 808nm diode pumping
  • active rods Nd:YAG (1064nm) and KTP (532nm)
  • optomechanical wavelength switching inside the module
  • continuous and quasicontinuous laser emission
  • air or water closed-circuit cooling system
  • Peltier elements to ensure selected temperature
  • for components of the system
  • temperature sensor outputs inside the module
  • step motor outputs
  • encoders for exact position control of optomechanical components
  • optical connection for a 600micron optical fiber or open aperture 5-15mm

Configuration

- Optical module
- Acoustooptical modulator
- Acoustooptical modulator driver
- Laser diode
- Laser diode driver
- System power supply units
- Controller
- Cooling system

Supply options

- laser system + RS485/USB master controller + laser diode driver
- laser system only (laser diode power and control, thermal stabilization, wavelength switching is ensured by Customer)
- water or air cooling system
- fiber or optical output connection
- customized design

Specification

Model MDQ-1 NMCL-NDYAG/KTP-MW-A-V1
Wavelength 1064nm 532/808/1064nm
Pumping
Type Diode  Diode
Power 100W 100W
Modulation type  Acousto-optic modulation (AOM)

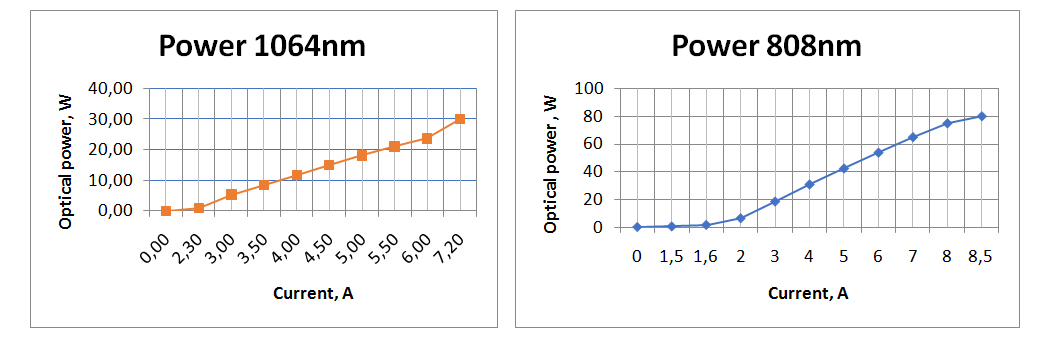

Average power (pulse energy)
at 1064 nm, Q-switched 30W (1mJ) 30W (1mJ)
at 532 nm, Q-switched - 20W (1.35mJ)
at 808 nm, CW - 90W
Repetition rate
at 1064 nm, Q-switched 30 kHz 30 kHz
at 532 nm, Q-switched - 15 kHz
Pulse duration
at 1064 nm, Q-switched 30-150 ns 30-150 ns
at 532 nm, Q-switched - 30-150 ns
at 808 nm, CW - > 1 ms
Polarization
at 1064 nm, Q-switched Random Random
at 532 nm, Q-switched - Linear
at 808 nm, CW - Random
Parameter
Beam divergence < 5 mrad < 5 mrad
Typical beam diameter 1-3 mm 1-3 mm
Beam diameter at the output of fiber coupled manipulator (option)  1-6 mm  1-6 mm
Beam profile at the output of fiber coupled manipulator (option) "Hat-Top" "Hat-Top"
Mode Multimode Multimode
Cooling requirements
Water temperature 15-35° C 15-35° C
Inlet pressure 1-4 bar 1-4 bar
Water flow 3-10 l/min 3-10 l/min
