OEM 532-808-1064nm laser for therapy

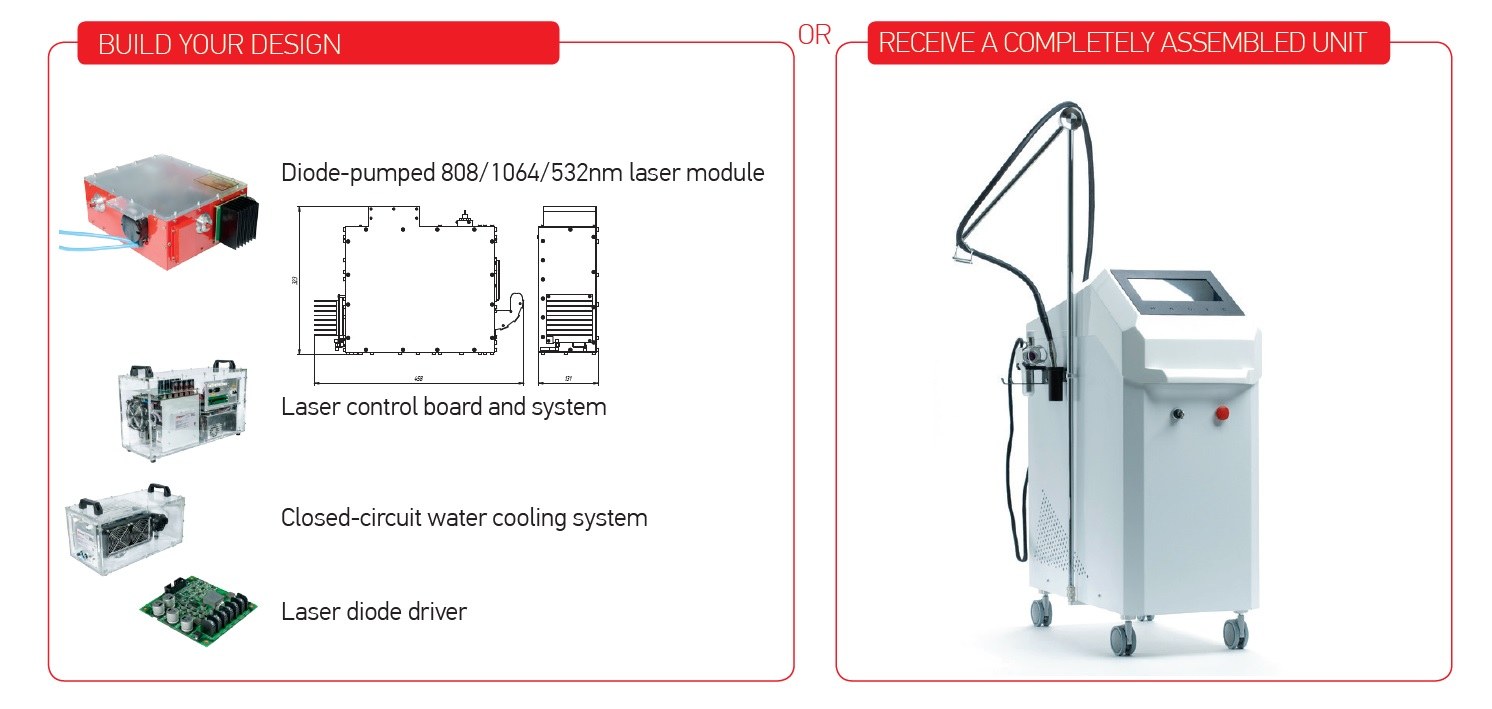

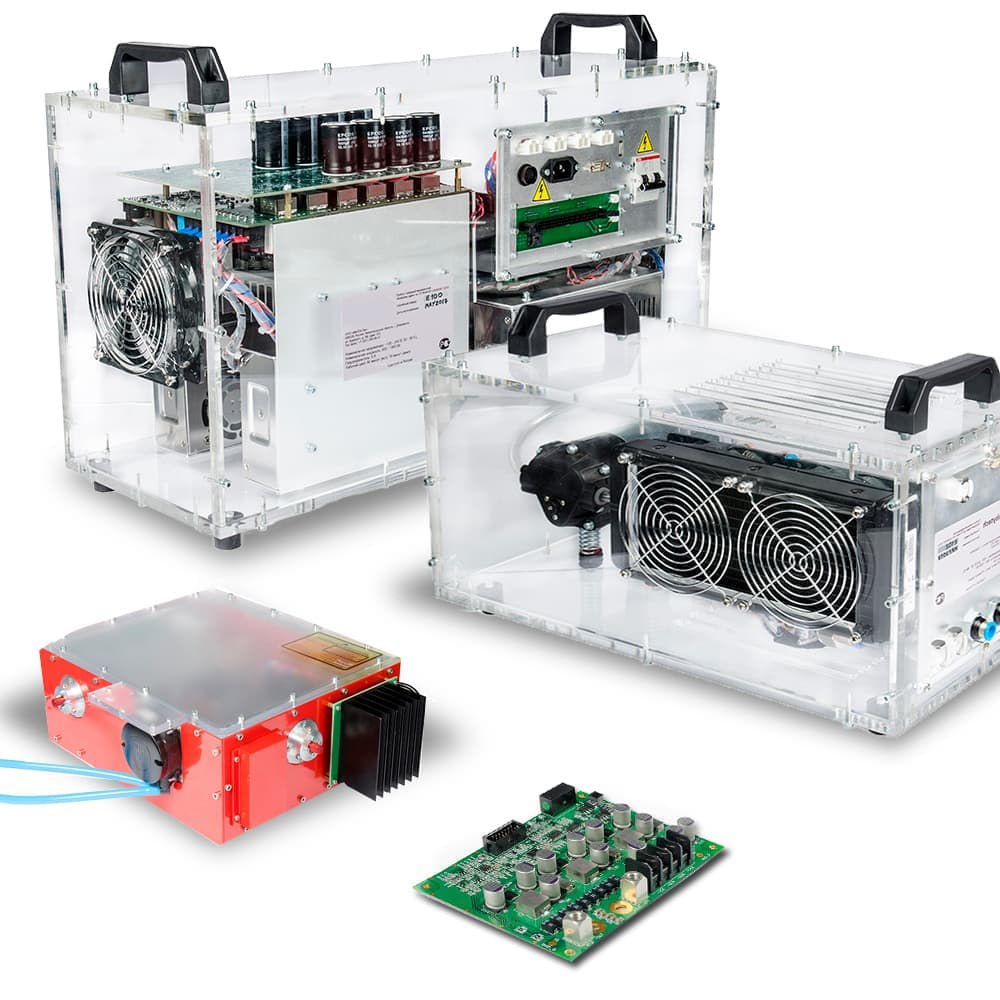

Complete OEM solution for a 532-808-1064nm laser system: laser module, driver, control and cooling system. The three-wave module provides for application of various modes within a single procedure by switching between the wavelengths in seconds, which makes it universal for a wide range of medical applications. The diode-pumping technology eliminates any flash lamps in the laser systems, and therefore is not subject to cumbersome and expensive aftersales service.

Request Price

Description

Semiconductor laser system model NMCL-NDYAG/KTP-MW-A-V1
GUI Windows based
UNIQUE tri-wave optical module and a single optical
fiber handpiece
5-100W
easilly transforms into 532nm single wave
small blueprint
customized wavelengths upon request

Specification

Wavelength, nm	1064		808	532
Mode	Free runnning	Q-switched	Free running	Q-switched
Max pulse energy, mJ	3000	1500	9000	1500
Pulse length	10ms -2s	30ns	10ms -2s	30ns
Max energy density, J/cm2	270	140	800	140
Max pulse repetition rate, Hz	50	50	50	50
Max average power, W	30	30	90	10
Max pulse power, W	33000	33000	90	15000
Cooling system	liquid, integrated
Spot size	1.2 – 10mm
Scanning area	Up to 30mm
