OEM 760+808+1060nm laser for hair removal

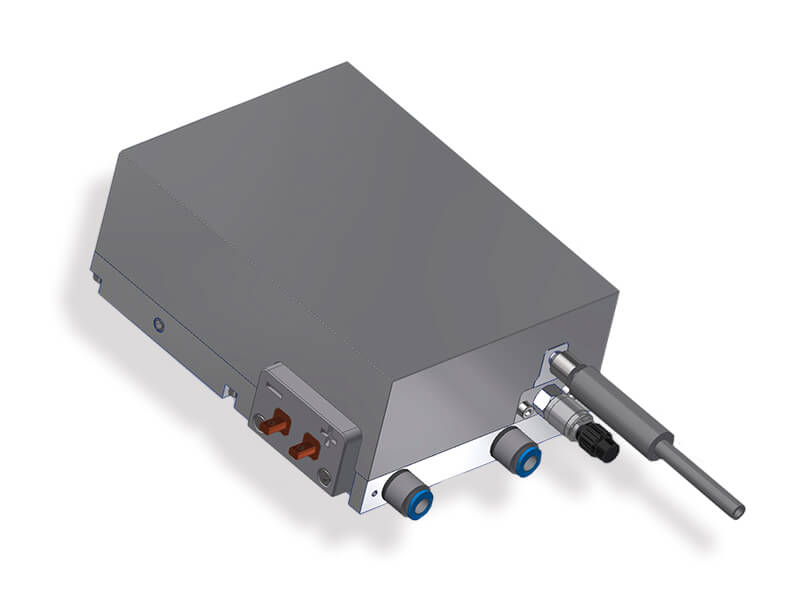

The 760+808+1060nm laser hair removal OEM model ML-D-MW-V1 is a modular laser system combining separate fiber-coupled modules into a single handpiece to offer 760, 808, or 1060nm wavelength use simultaneously/mixed or independently.

Request Price

Description

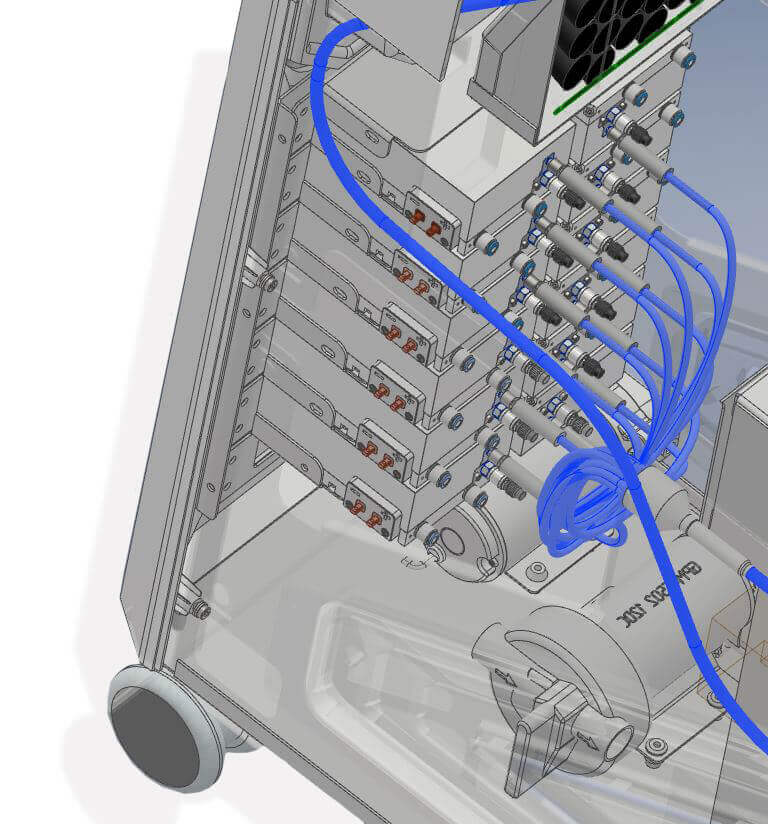

The system features 400W to 4800W
depending on number of modules installed, up to 12 modules can be integrated into a single system.

Fiber delivery of laser to handpiece, control of each wavelength or combination in one pulse simultaneously
High power with 3 wavelength
Combination of modules in any configuration per demand
Independent modes for mixed or separate wavelength / customizable or preset settings and modes
Upgradable in field
Unique modular design with multiple configurations depending on the customer’s needs

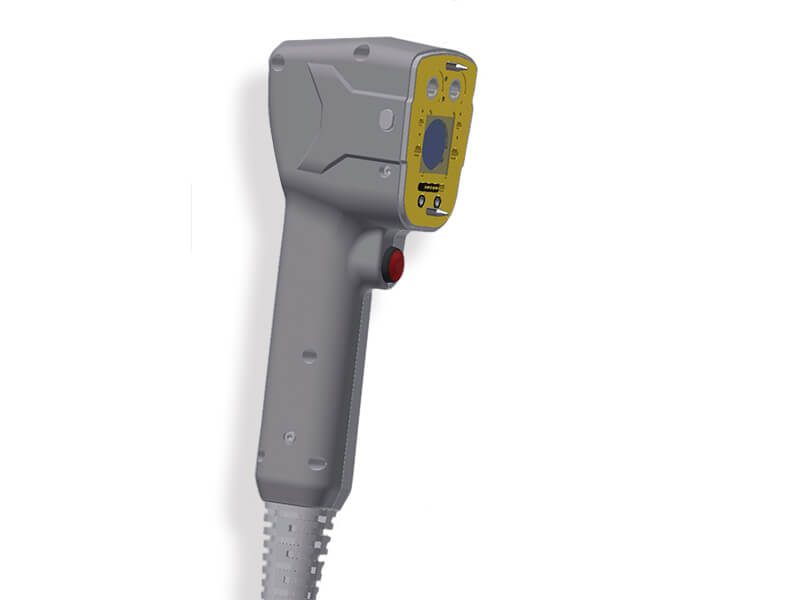

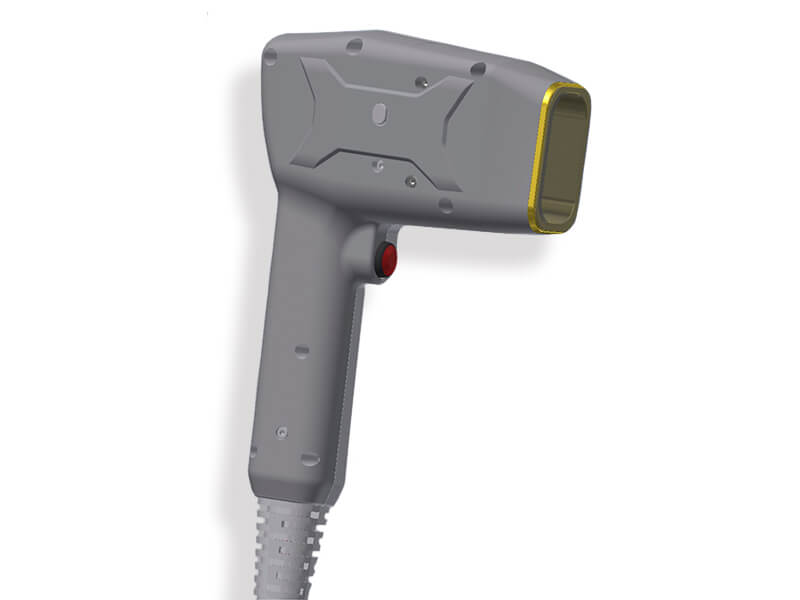

Handpiece with standard chilling (10x10 or 15x15 mm) or vacuum (27x27 mm), light weight

Specification

Available spot size
Sapphire, active cooled	10x10 mm
Sapphire, active cooled	15x15 mm
Vacuum handpiece	27x27
Pulse length	1-100 ms
Wavelength	760, 808, 1060nm
Mode	Mixed or alternate wavelength, single or burst pulsing, programmable
Frequency	10 Hz
